Specifications
water well boring machineDrill depth: 300m
Drilling rig dia: OD36~250mm
for mineral exploring, and take rock core sample

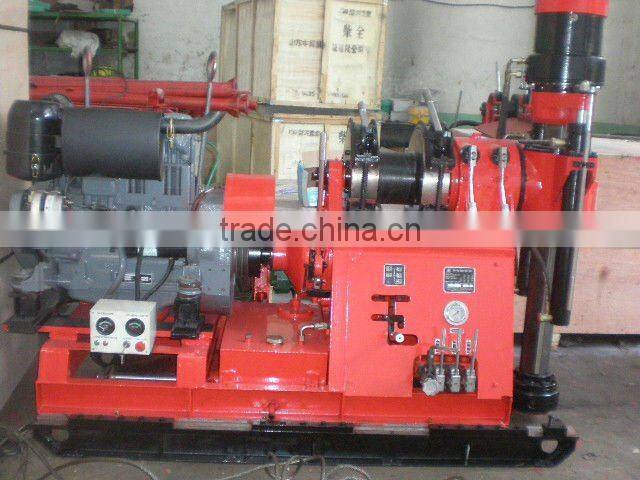

water well boring machine
Company introduction of water well boring machine :
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc
| |||

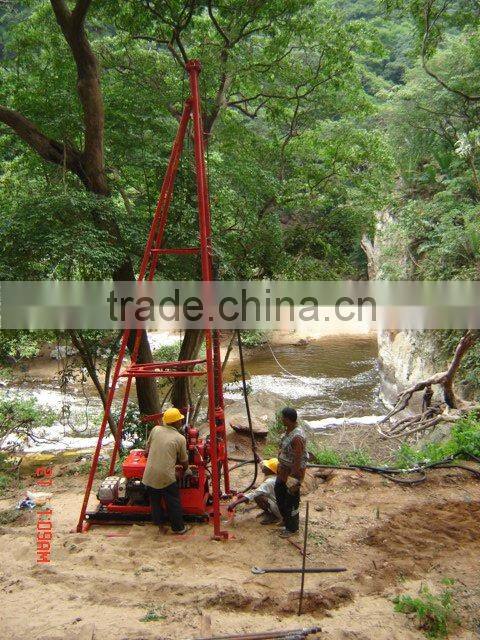

| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |
water well boring machine Drilling Ability:
Drilling depth: 300m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 375m, 472m with 75mm hole diameter
water well boring machine Applications:
1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
2. Coal mining exploration, Ore exploration
3. Small hole diameter water well drilling
4. Geothermal pipe-installing for heat pump
5. Small-diameter hole foundation piling drilling;
Features of water well boring machine
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
| Technological Data of Drilling Rigs | |
| Type | HGY-300 |
| Drilling depth(m) | 300 |
| Drilling rod diameter(mm) | 50 |
| Head angle range | 0~360° |
| Cylinder stroke (mm) | 400 |
| Spindle speed(r/min) | Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate:38 173 |
| spindle hole diameter (mm) | 65/96 |
| Spindle output torque (N.M) | 3100 |
| Spindle stroke (mm) | 530 |
| Spindle driving force max. (KN) | 40 |
| Spindle lifting power max. (KN) | 60 |
| Lifting speed (m/s) | 0.30 0.59 1.01 1.66 2.09 |
| Single rope lifting power (KN) | 30 |
| Steel wire rope diameter (mm) | 13 |
| Mode of chuck | Full Hydraulic chuck |
| Weight (power unit excepted)(kg) | 1200 |
| (L*W*H)(mm) | 2000×900×1600 |
| Diesel engine | 495D(26.5KW) |
| Electromotor | Y180L-4(22KW) |
For water well, you also need drill tools as flow:
Production
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
