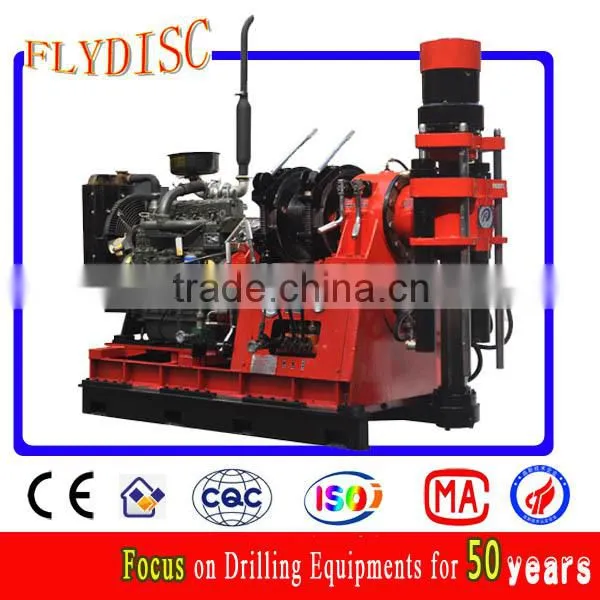

Help CenterHGY-650 Popular in Oversea Market Portable Water Well Drill Equipment
Related Products
-
HGY-1000 Popular in Oversea Market Portable Water Well Drill EquipmentNegotiableMOQ: 1 Piece -
HGY-200 Popular in Oversea Market Portable Water Well Drill EquipmentNegotiableMOQ: 1 Set
-
XUL-100 Popular in Oversea Market Portable Water Well Drill EquipmentNegotiableMOQ: 1 Set
-
HGY-300 Groundwater Drilling Rig for Water WellUS$ 1 - 2MOQ: 1 Set
-
HGY-200 Trailer Mounted Small Water Well Drill RigNegotiableMOQ: 1 Set
Specifications
1) Compact in structure and light in weight.2) High reliability, good performance and durability.
Brief introduction:
1.32 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features:
1) Compact in structure and light in weight.
2) High reliability, good performance and durability.
3) Common auto parts, such as clutch, transmission case and shifting structure.
4) Safe and reliable operations with synchronizer for shifting while the rig is running.
5) Be attached to the tower.
Use: for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Drilling Rigs:
Model |
HGY-650 Drilling Rig |
Drilling depth( m) |
650 |
Spindle speed( r/min) |
Positive rotation rate(speed is 1470r/min): 65 117 201 309 440 187 338 582 894 1273 Reverse rotation rate: 72 207 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
3435 |
Spindle hole diameter( mm) |
Φ63 |
Lifting speed( m/s) |
0.43 0.78 1.35 2.08 2.95 |
Lifting capacity(single) max(KN) |
33 |
Diameter & Length of drum(m) |
Φ15*90 |
Movable cylinder stroke (mm) |
400(+-10) |
Max distance from hole (mm) |
250 |
Gear oil pump model |
CB-FA32-FL |
Nominal displacement( ml/r) |
32 |
Nominal pressure( MPa) |
16 |
Oil pump nominal rotation velocity(r/min) |
1800 |
Electromotor model |
Y200L-4 |
Power( kw) |
30 |
Diesel engine model |
K4100ZD |
Power( kw) |
41 |
Weight(power unit excepted)(Kg) |
1550 |
Overall dimensions(mm) |
2400*1020*1700 |
Drill tools for water well
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
