Specifications
portable water well drilling rigs for saleAdvanced capability
high reliability
Excellent design
easy operation
Historical view:
1) 1992 the first drill rig for the sample boring from the deep stratum of antarctica in the world used by the Chinese Academy of science.
2) Best Quality Awards belonging to China National Nuclear Ministry Hunan province.
Features:
1) Advanced capability and high reliability.
2) Excellent design and easy operation.
3) Alternative-designed unit constructions.
4) Accessories in common use.
Use: for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Drilling Rigs:
Model |
Diamond Core Drilling Rig(XUL-100) |
Drilling depth( m) |
100 |
Drilling rod diameter.(mm) |
Φ42 |
Head angle range |
360 |
Movable cylinder stroke (mm) |
300 |
Spindle speed( r/min) |
144 264 590 1083 |
Spindle hole diameter( mm) |
Φ54 |
Spindle output torque max(N.M) |
800 |
Spindle stroke(mm) |
370 |
Lifting power max( KN) |
30 |
Driving force max(KN) |
23 |
Lifting speed( m/s) |
0.36 0.7 1.49 2.9 |
Lifting capacity(single) max(KN) |
10 |
Steel wire rope diameter (mm) |
11 |
Mode of chuck |
Hand lever chuck |
Weight(power unit excepted)(Kg) |
550 |
Overall dimensions(mm) |
1200*650*1300 |
Diesel engine model |
Zs1100 ( 12.1KW) |
Electromotor model |
Y160M-4 ( 11KW)
|
For water well, you also need drill tools as flow:
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
| |||

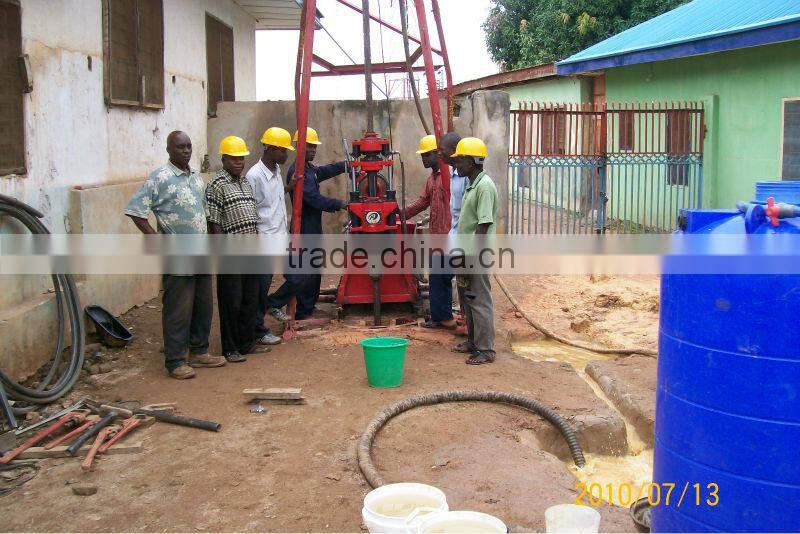

| Our factory | our team of foreign trade | In 1992, 100m drill in Antarctica in the world | Go to drilling site to train drilling knowledge |
|
|
|
|
| Max. Depth:1000m | Max. Depth:1500m | Max. Depth:200m | Max. Depth:100m |
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
