Specifications
groundwater drilling rigDrilling depth: 300m
Drill dia.: 75mm
Take rock core sample in mining exploration, geological

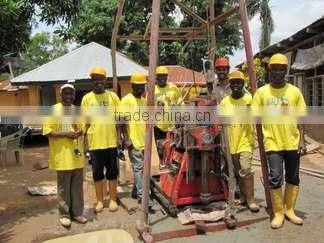

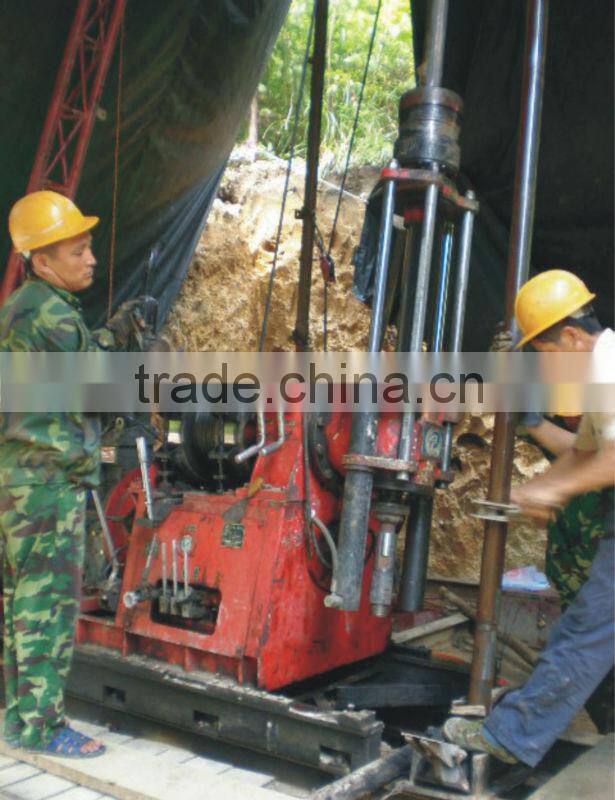

groundwater drilling rig for water well
Features of groundwater drilling rig for water well :
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Application of groundwater drilling rig for water well :
1. Coal mining exploration, Ore exploration;
2. Small hole diameter water well drilling;
3. Geothermal pipe-installing for heat pump;
4. Small-diameter hole foundation piling drilling
Technological Data of Drilling Rigs:
Model |
HGY-300 Drilling Rig |
Drilling depth( m) |
300 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
0~360° |
Movable cylinder stroke (mm) |
400 |
Spindle speed( r/min) |
Positive rotation rate:50 87 137 189 230 399 629 868 Reverse rotation rate: 39 180 |
Spindle hole diameter( mm) |
Φ63/Φ95 |
Spindle output torque max(N.M) |
2800 |
Spindle stroke(mm) |
530 |
Lifting power max( KN) |
60 |
Driving force max(KN) |
40 |
Lifting speed( m/s) |
0.41 0.72 1.13 1.6 |
Lifting capacity(single) max(KN) |
30 |
Steel wire rope diameter (mm) |
Φ13 |
Mode of chuck |
hydraulic chuck or pillar-type chuck |
Weight(power unit excepted)(Kg) |
1200 |
Overall dimensions(mm) |
2315*900*1700 |
Diesel engine model |
K4100D(30KW) |
Electromotor model |
Y180L-4( 22KW) |
Drill tools for water well
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
