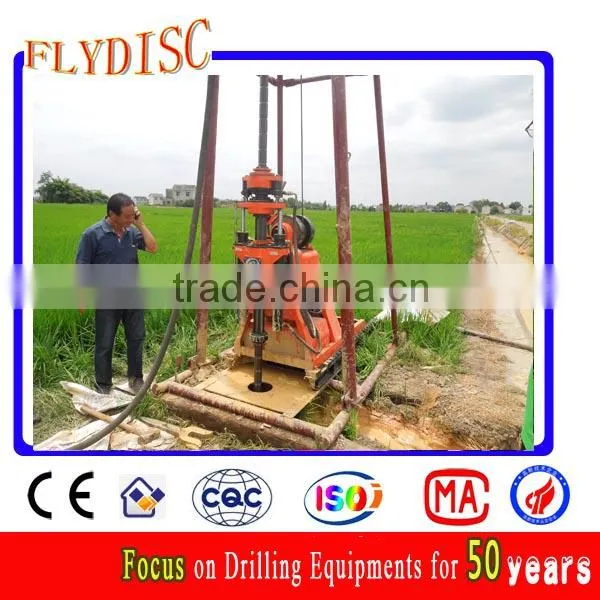

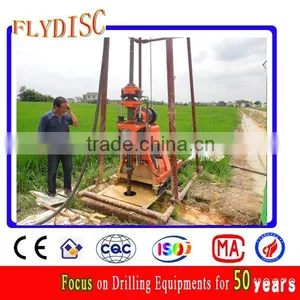

Help CenterHGY-200 Small Bore Well Drilling Machine for Sale
Related Products
-
Small Water Well Drilling Machine for SaleUS$ 1 - 2MOQ: 1 Set -
Made in China 0~200m Portable Water Well Drilling RigUS$ 1 - 2MOQ: 1 Set
-
Deep Rock New M60 Drill RigUS$ 1 - 2MOQ: 1 Set
-
HGY-200 Made in China Small Water Well Drilling Rig, Mini Water Well Drilling MachineUS$ 1 - 2MOQ: 1 Set
-
Water Well Drilling Rig and Machine/ XUL-100 Water Well Drilling Rig/ 100m Water Well Drilling MachineUS$ 1 - 2MOQ: 1 Set
Two patents for small bore well drilling machine for sale
Utility patent for transmission case.
Design patent for appearance.
Drilling Ability of small bore well drilling machine for sale
Drilling depth: 200m
Drill hole diameter: 100~200mm(46~250mm)
Successful drilling depth: 427m, 478m with 75mm hole diameter
Features of small bore well drilling machine for sale
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of small bore well drilling machine for sale
| Technological Data of Drilling Rigs | borehole drilling machine for sale |
| Type | HGY-200 |
| Drilling depth(m) | 200 |
| Drilling rod diameter(mm) | 42 50 |
| Head angle range | 360° |
| Cylinder stroke (mm) | 360 |
| Spindle speed(r/min) | Positive rotative velocity: 60 150 240 340 550 830 reverse rotative velocity: 35 85 135 195 330 480 |
| spindle hole diameter (mm) | 65 |
| Spindle output torque (N.M) | 2140 |
| Spindle stroke (mm) | 500 |
| Spindle driving force max. (KN) | 37 |
| Spindle lifting power max. (KN) | 50 |
| Lifting speed (m/s) | 0.6 2.3 3.4 |
| Single rope lifting power (KN) | 20 |
| Steel wire rope diameter (mm) | 11 |
| Mode of chuck | Full Hydraulic chuck |
| Weight (power unit excepted)(kg) | 750 |
| (L*W*H)(mm) | 1860×800×1400 |
| Diesel engine | Zs1110 (14.7KW) |
| Electromotor | Y160L-4(15KW) |
Application of small bore well drilling machine for sale
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
The drill tools for water well
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
|
|
|
|
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
We have produced drilling equipments for more than 50 years.
We are a Professional manufacturer.
If this rig is right for you,don't hesitate to contact us immediately.
If not, it does't matter, email to us and tell us which rig do you want, we will reply to you immediately respond to you and recommended right drilling rig for you.
Don't hesitate, email to us now. You will get unexpected results !
