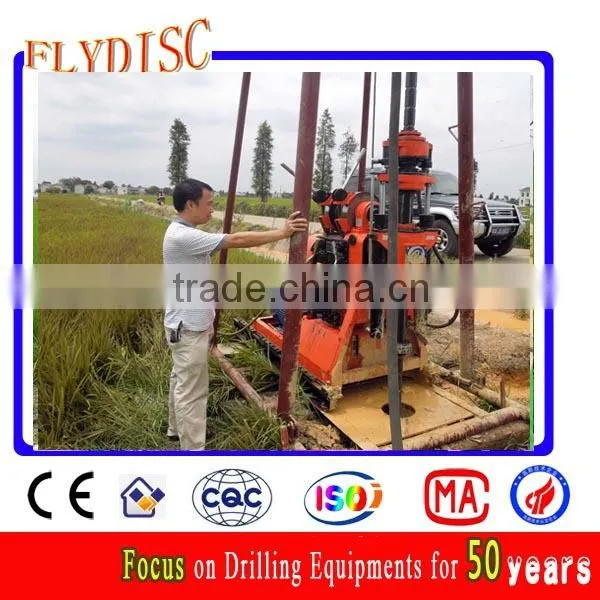

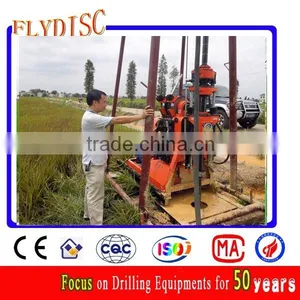

200m Small Water Well Drilling Machine/HGY-200 portable water well drilling rig/50-200m mobile water well drilling equipment

Specifications

50-200m Portable Water Well Drilling Machine/Drilling Rig
Drilling depth:200m
Drilling Dia.:75~300mm
water well drilling



HGY-200 Portable/Mobile Water Well Drilling Machine



Brief introduction of HGY-200 Small Water Well Drilling Machine   :



1.50 years professional manufacture

2. Certificate: ISO9001:2000 and ISO9001:2008

3. Export to:  Africa, the Middle East, South America, Asia,

  Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.





Two patents for HGY-200 Small Water Well Drilling Machine   :

 Utility patent for transmission case.

 Design patent for appearance.



Drilling Ability of  HGY-200 Small Water Well Drilling Machine   :

Drilling depth: 200m

Drill hole diameter: 100~200mm(46~250mm)

Successful drilling depth: 427m, 478m with 75mm hole diameter



Features of  HGY-200 Small Water Well Drilling Machine   :

1) Good stability and high reliability.

2) Multilevel positive and reverse rotate speed.

3) The complete hydraulic chuck and vertical spindle.

4) Convenient to transport  with the small volume and light weight.

5 )Perfect frame's rigidity ,low center of gravity and good stability.



Technological Data of    HGY-200 Small Water Well Drilling Machine   :

Technological Data of Drilling Rigs
Type	HGY-200
Drilling depth(m)	200
Drilling rod diameter(mm)	42 50
Head angle range	360°
Cylinder stroke (mm)	360
Spindle speed(r/min)	Positive rotative velocity: 60 150 240 340 550 830 reverse rotative velocity: 35 85 135 195 330 480
spindle hole diameter (mm)	65
Spindle output torque (N.M)	2140
Spindle stroke (mm)	500
Spindle driving force max. (KN)	37
Spindle lifting power max. (KN)	50
Lifting speed (m/s)	0.6   2.3    3.4
Single rope lifting power (KN)	20
Steel wire rope diameter (mm)	11
Mode of chuck	Full Hydraulic chuck
Weight (power unit excepted)(kg)	750
(L*W*H)(mm)	1860×800×1400
Diesel engine	Zs1110 (14.7KW)
Electromotor	Y160L-4(15KW)



Application of  HGY-200 Small Water Well Drilling Machine   :

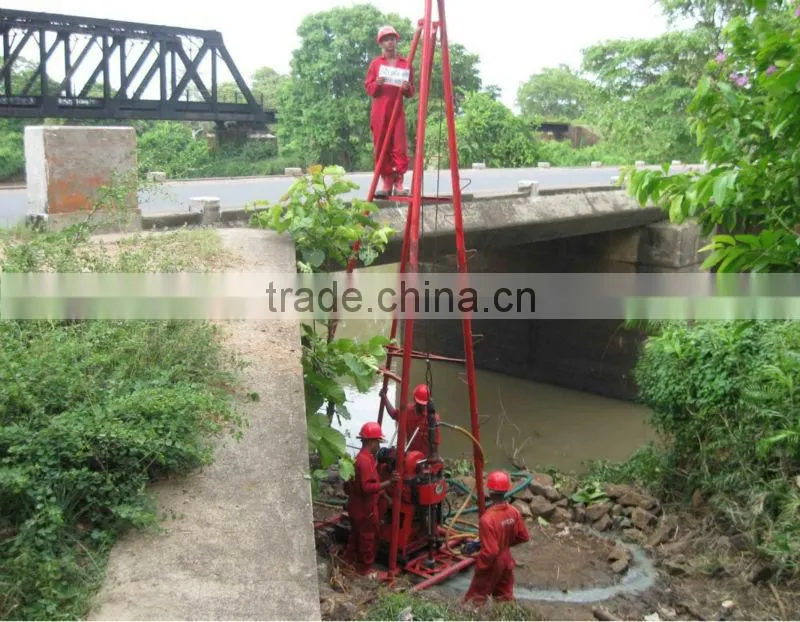

1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;

2. Coal mining exploration, Ore exploration;

3. Small hole diameter water well drilling;

4. Geothermal pipe-installing for heat pump;

5. Small-diameter hole foundation piling drilling
