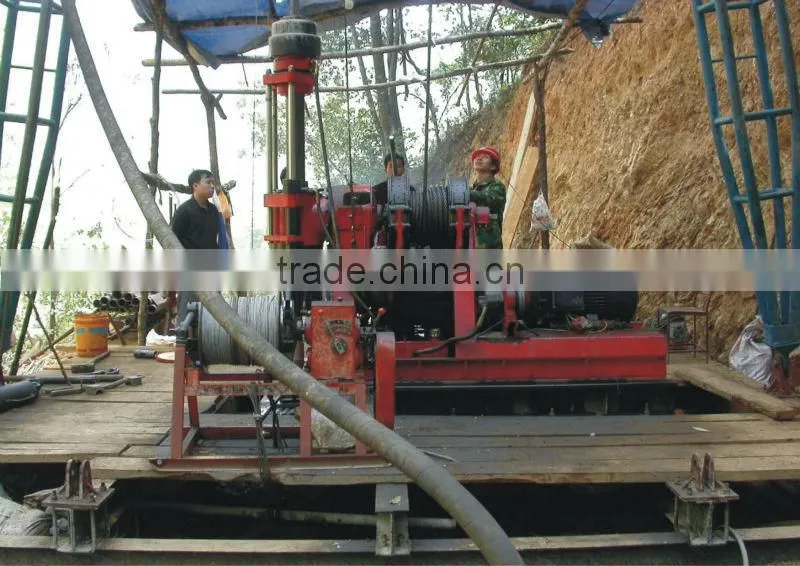

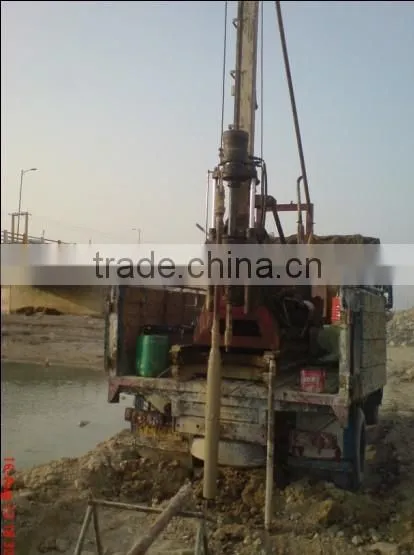

HGY-1500T wire-line mineral exploration core drilling rig machine

     Model

 Drilling Rig(HGY-1500T)

Drilling depth( m)

1500~1200

Rod diameter( mm)

Φ42~Φ50

Spindle speed( r/min)

  Positive rotation rate: 54 86 145 219 310 378 415 570 808 1081

Reverse rotation rate: 58 152

Spindle stroke(mm)

600

Lifting power max( KN)

80

Driving force max(KN)

60

Spindle output torque max(N.M)

7150

Spindle hole diameter( mm)

Φ95

Cable diameter(mm)

17.5

Drum circumferential velocity( 9 layers)

45

Lifting speed( m/s)

0.51 0.81 1.37 2.06 2.92 3.91

Lifting capacity(single) max(KN)

40

Movable cylinder stroke (mm)

400

Gear oil pump model

2CB-FA32/10-FL

Nominal displacement( ml/r)

40

Nominal pressure( MPa)

14

 Electromotor model

Y225S-­4 or Y225M-4

 Power( kw)

 37 or 45

 Speed( r/min)

1480

Diesel engine model

4110-125

Power( kw)

81

 Speed( r/min)

2800

Diesel engine weght(Kg)

385

Overall dimensions(mm)

2460*1150*1888

 Weight(power unit excepted)(Kg)

4100

 Head angle range

0~90

Diesel engine model

4110-125

Tower load(t)

                             10

Tower height(m)

                             9.5

Tower pedestal(m)

                            4*4.5
