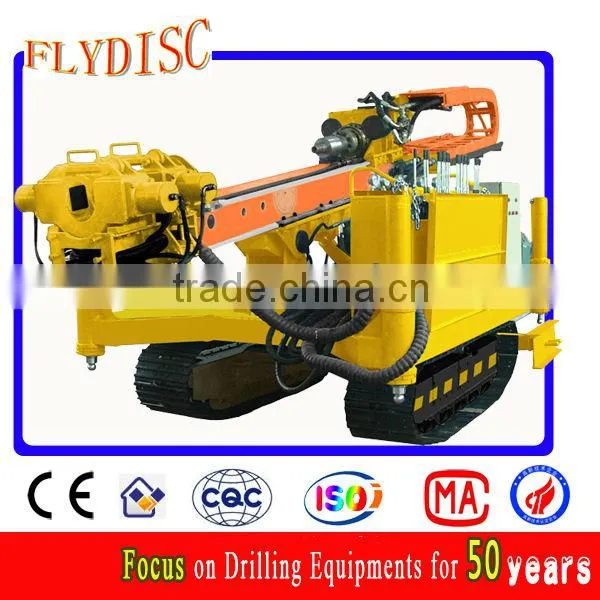

Help CenterHMDL-120 Anchor Drill Rig
Related Products
Specifications
The high-efficiency rig is developed for anchoring, rotary jet grouting, precipitation of subway, high building,The high-efficiency rig is developed for anchoring, rotary jet grouting, precipitation of subway, high building, airport, ground source heat pump and other deep foundation pit.
Type |
HMDL-120 |
Drilling hole diameter(mm) |
152-250 |
Drilling depth(mm) |
120-80 |
Drilling rod diameter(mm) |
89 102 114 |
Head angle range(°) |
90-0 |
Output speed of gyrator(r/min) |
6 12 26 28 32 45 /12 24 32 56 64 90 |
Output torque of gyrator(N.m) |
6500/3300 |
Travel distance of gyrator(mm) |
3400 |
Travel distance of feeder(mm) |
900 |
Lifting force of gyrator(KN) |
65 |
Lifting speed of gyrator(m/min) |
1 5.9 15 |
Pressurization force of gyrator(KN) |
33 |
Pressurization speed of gyrator(m/min) |
0-2 11.5 29.5 |
Output power(motor)(KW) |
45+15+1.5 |
Transportation state(L*W*H)((mm) |
5300*2160*1950 |
Transverse constructiong state(L*W*H)(mm) |
5300*2160*1950 |
Vertical construction state(L*W*H)(mm) |
3500*2160*5300 |
Weight(kg) |
6500 |
