Specifications
geothermal drilling rigs for sale1) Wide range of suitable rotary speed to meet various needs.
2) Adopted from the 'jiefang"

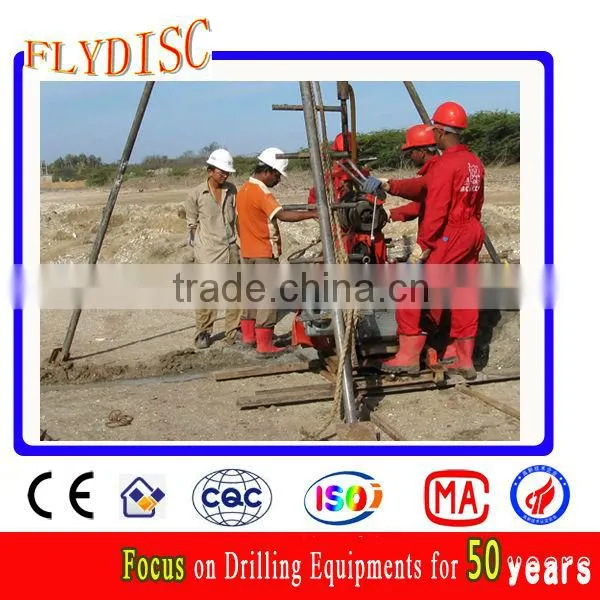

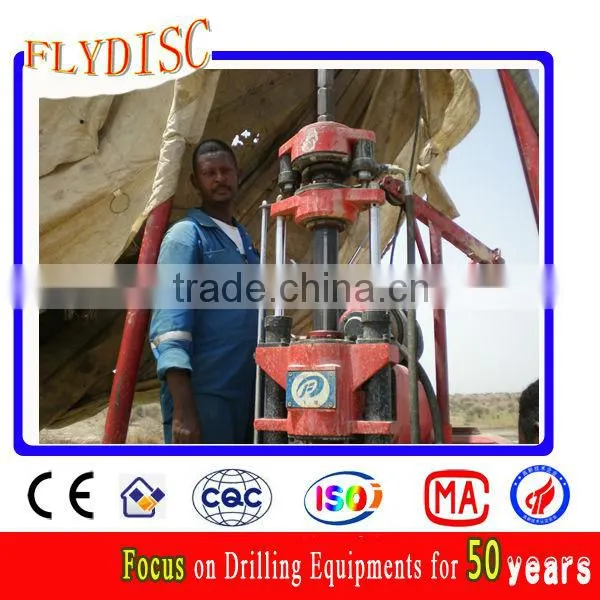

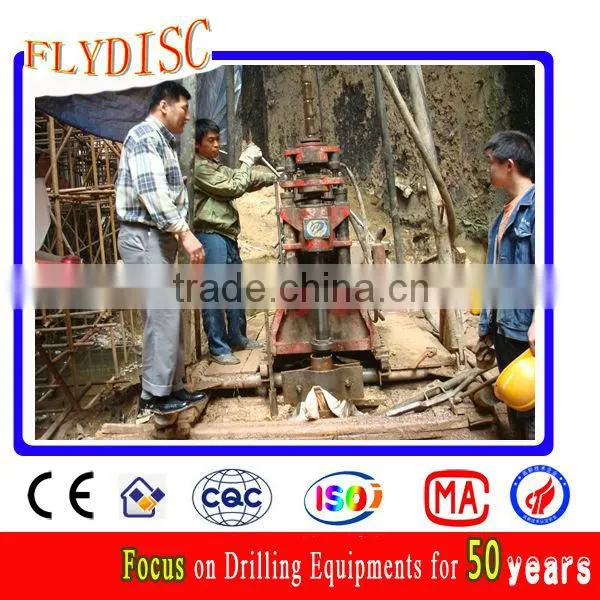

geothermal drilling rigs for sale (HGY-1500T)
Brief introduction of geothermal drilling rigs for sale (HGY-1500T) :
1.32 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features of geothermal drilling rigs for sale (HGY-1500T) :
1) Wide range of suitable rotary speed to meet various needs.
2) Adopted from the 'jiefang"CA151 auto parts, such as clutch and gear-Box.
3) Reasonable design of the transmission and shift on the principle of bevel gear.
4) A good grip with the disk spring on the Chuck.
5) Convenient to lift up and down the tower, all the work are performed by the hydraulic system.
Use of geothermal drilling rigs for sale (HGY-1500T) : for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Drilling Rigs
Model |
geothermal drilling rigs for sale (HGY-1500T) |
Drilling depth( m) |
1500~1200 |
Rod diameter( mm) |
Φ42~Φ50 |
Spindle speed( r/min) |
Positive rotation rate: 54 86 145 219 310 378 415 570 808 1081 Reverse rotation rate: 58 152 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
7150 |
Spindle hole diameter( mm) |
Φ95 |
Cable diameter(mm) |
17.5 |
Drum circumferential velocity( 9 layers) |
130 |
Lifting speed( m/s) |
0.51 0.81 1.37 2.06 2.92 3.91 |
Lifting capacity(single) max(KN) |
40 |
Movable cylinder stroke (mm) |
400 |
Gear oil pump model |
2CB-FA32/10-FL |
Nominal displacement( ml/r) |
40 |
Nominal pressure( MPa) |
14 |
Electromotor model |
Y225S-4 or Y225M-4 |
Power( kw) |
37 or 45 |
Speed( r/min) |
1480 |
Diesel engine model |
R4105ZD1 |
Power( kw) |
56 |
Speed( r/min) |
2800 |
Diesel engine weght(Kg) |
385 |
Overall dimensions(mm) |
2460*1150*1888 |
Weight(power unit excepted)(Kg) |
4100 |
Head angle range |
0~90 |
Tower load(t) |
10 |
Tower height(m) |
9.5 |
Tower pedestal(m) |
4*4.5 |
