Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > HGY-200 Multifunctional Geological Drill Rig

HGY-200 Multifunctional Geological Drill Rig

Name: HGY-200 Multifunctional Geological Drill Rig
Brand: Flydisc
SKU: 120986555
Availability: InStock

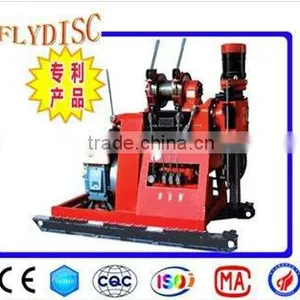

HGY-200 Multifunctional Geological Drill Rig thumbnail-1

HGY-200 Multifunctional Geological Drill Rig thumbnail-2

HGY-200 Multifunctional Geological Drill Rig thumbnail-3

HGY-200 Multifunctional Geological Drill Rig thumbnail-4

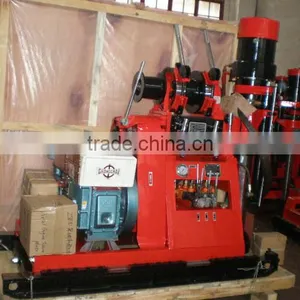

HGY-200 Multifunctional Geological Drill Rig thumbnail-5

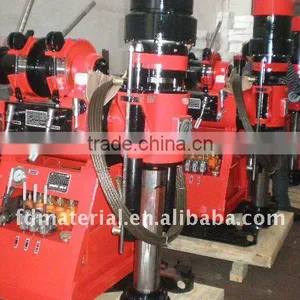

HGY-200 Multifunctional Geological Drill Rig thumbnail-6

HGY-200 Multifunctional Geological Drill Rig photo-1

HGY-200 Multifunctional Geological Drill Rig photo-2

HGY-200 Multifunctional Geological Drill Rig photo-3

HGY-200 Multifunctional Geological Drill Rig photo-4

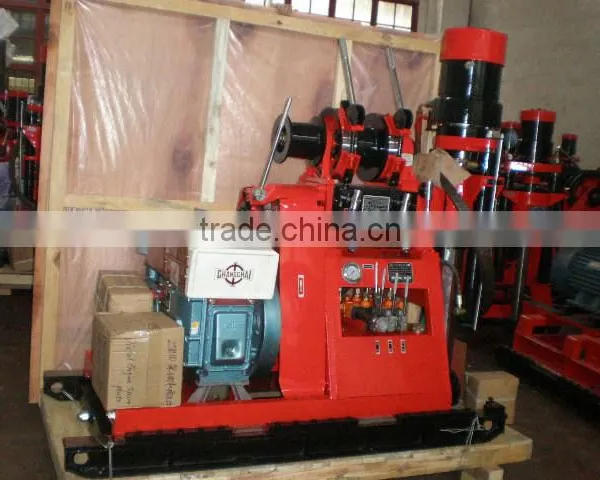

HGY-200 Multifunctional Geological Drill Rig photo-5

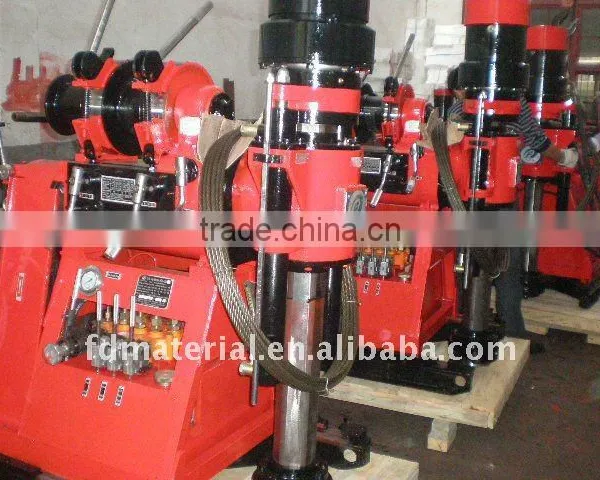

HGY-200 Multifunctional Geological Drill Rig photo-6

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, Rotary Drilling Rig, small, spindle ,mini ,deep,HGY-200, 200m

Power Type:

Other, electric or diesel

Contact Supplier Request Quote Chat Now

Hunan Flydisc New Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

guangzhou/shanghai/shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, Rotary Drilling Rig, small, spindle ,mini ,deep,HGY-200, 200m

Power Type Other, electric or diesel

Place of Origin Hunan, China

Brand Name Flydisc

Model Number HGY-200

Usage Other, prospection, geotechnical investigation, railway, road, port, bridge

Voltage 220V

Power(W) 15KW

Dimension(L*W*H) 1860*800*1400MM

Weight Without power 750KG

Certification CE,ISO9001:2008

Warranty 6months

After-sales Service Provided Engineers available to service machinery overseas

Two patents for HGY-200 rotary drilling rig:
Utility patent for transmission case.
Design patent for appearance.

Drilling Ability:
Drilling depth: 200m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 427m, 478m with 75mm hole diameter

Features:
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.

Technological Data of Drilling Rigs:

Model	Drilling Rig(HGY-200)
Drilling depth( m)	200
Drilling rod diameter.(mm)	Φ50
Head angle range	360
Movable cylinder stroke (mm)	360
Spindle speed( r/min)	Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480
Spindle hole diameter( mm)	Φ65
Spindle output torque max(N.M)	2140
Spindle stroke(mm)	500
Lifting power max( KN)	50
Driving force max(KN)	37
Lifting speed( m/s)	0.6 2.3 3.4
Lifting capacity(single) max(KN)	20
Steel wire rope diameter (mm)	11
Mode of chuck	Full-hydraulic chuck or ball-type chuck
Weight(power unit excepted)(Kg)	750
Overall dimensions(mm)	18608001400
Diesel engine model	Zs1110 ( 14.7KW)
Electromotor model	Y160L-4 ( 15KW)

Use: for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

FAQ

Q:How to choose drilling rig?

Answer:drilling machine including drilling rig, mud pump, engine ( diesel engine or motor) and tower. Choose drilling machine, should be based on drilling purpose, hole depth, hole structure and transportation condition.
