Help CenterGeological Core Drill Rig HGY-300
Related Products
Specifications
geological core drill rig HGY-300Drilling depth: 300m
Drilling dia.: OD36~250mm
Use:mineral exploring,diamond core drill

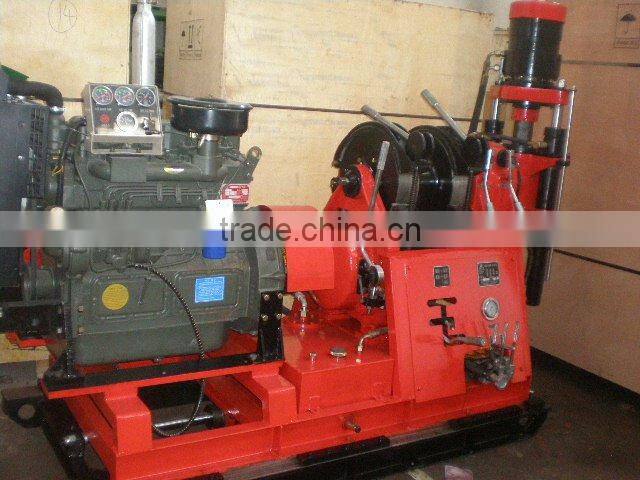

geological core drill rig HGY-300
Company introduction geological core drill rig HGY-300:
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc
Drilling Ability of HGY-300 Geological Core Drill Rig :
Drilling depth: 300m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 375m, 472m with 75mm hole diameter
Applications of HGY-300 Geological Core Drill Rig :
1.Construction drilling of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction
2. Coal mining exploration, Ore exploration
3. Small hole diameter water well drilling
4. Geothermal pipe-installing for heat pump
5. Small-diameter hole foundation piling drilling;
Features of HGY-300 Geological Core Drill Rig :
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
| Technological Data of Drilling Rigs | |
| Type | HGY-300 |
| Drilling depth(m) | 300 |
| Drilling rod diameter(mm) | 50 |
| Head angle range | 0~360° |
| Cylinder stroke (mm) | 400 |
| Spindle speed(r/min) | Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate:38 173 |
| spindle hole diameter (mm) | 65/96 |
| Spindle output torque (N.M) | 3100 |
| Spindle stroke (mm) | 530 |
| Spindle driving force max. (KN) | 40 |
| Spindle lifting power max. (KN) | 60 |
| Lifting speed (m/s) | 0.30 0.59 1.01 1.66 2.09 |
| Single rope lifting power (KN) | 30 |
| Steel wire rope diameter (mm) | 13 |
| Mode of chuck | Full Hydraulic chuck |
| Weight (power unit excepted)(kg) | 1200 |
| (L*W*H)(mm) | 2000×900×1600 |
| Diesel engine | 495D(26.5KW) |
| Electromotor | Y180L-4(22KW) |
