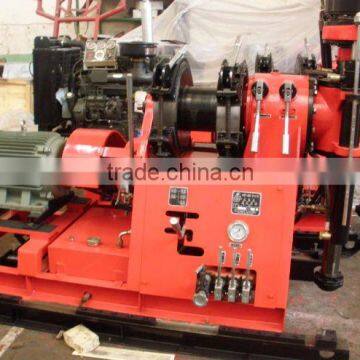

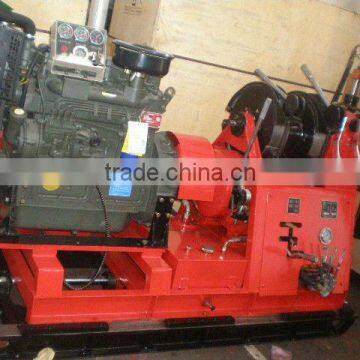

Help CenterHGY-300 Geotechnical Core Exploration Drilling Rig Machine
Related Products
-
Exploration Drilling Machine HGY-650US$ 1 - 2MOQ: 1 Set -
HGY-1000 Exploration Drilling Rig for SellingUS$ 1 - 2MOQ: 1 Piece
-
Exploration Drilling Machine HGY-200US$ 1 - 2MOQ: 1 Set
-
Popular in Oversea Market!HGY-650 Multifunctional Exploration Core Drilling Rig for SaleNegotiableMOQ: 1 Set
-
HGY-300 Hydraulic Exploration Drilling Rig EquipmentNegotiableMOQ: 1 Set
Specifications
Exploration Drilling RigDrilling depth: 300m
Drill dia.: 75mm
Take rock core sample in mining exploration, geological surv
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Hunan Flydisc New Material Co., Ltd is a high-tech enterprise which devotes to development, research and production of drilling equipments. Now we have 435 staffs.
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification. The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, Sri Lanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
Production Description:
Features of HGY-300 Exploration Drilling Rig:
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of HGY-300 Exploration Drilling Rig
Model |
HGY-300 Drilling Rig |
Drilling depth( m) |
300 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
0~360° |
Movable cylinder stroke (mm) |
400 |
Spindle speed( r/min) |
Positive rotation rate:50 87 137 189 230 399 629 868 Reverse rotation rate: 39 180 |
Spindle hole diameter( mm) |
Φ63/Φ95 |
Spindle output torque max(N.M) |
2800 |
Spindle stroke(mm) |
530 |
Lifting power max( KN) |
60 |
Driving force max(KN) |
40 |
Lifting speed( m/s) |
0.41 0.72 1.13 1.6 |
Lifting capacity(single) max(KN) |
30 |
Steel wire rope diameter (mm) |
Φ13 |
Mode of chuck |
hydraulic chuck or pillar-type chuck |
Weight(power unit excepted)(Kg) |
1200 |
Overall dimensions(mm) |
2315*900*1700 |
Diesel engine model |
K4100D(30KW) |
Electromotor model |
Y180L-4( 22KW) |
Q:Rig using common sense?
Answer:
(1) class maintenance:
The outer surface of the drill is wiped clean, and pay attention to the rig substructure slideway, vertical surface cleaning and good lubrication.
The examination of all open bolt, nut, insurance and other solid and reliable.
According to the lubrication requirements of the lubricating oil or grease, see Figure two and table a.
The check gearbox, gear box and the hydraulic system the location of oil tank.
The check around the oil leakage and as the condition to be treated.
The elimination in the class occurred within the other fault.
(2) peripheral maintenance:
The complete class maintenance programs required.
The removal of chuck and slips on the tooth surface dirt, mud.
The clean the inner surface of the brake oil, mud.
The excluded from this week 's fault.
(3) month maintenance:
The complete class, weekly maintenance programs required.
The disconnect chuck, cleaning slips and slips seat. Should be replaced if damaged.
The cleaning tank filter, replacement of deterioration or soiled by hydraulic oil.
The examination of the major components of the intact state, should be replaced if damaged, can not be wounded the work.
The complete elimination of the fault occurred in the month.
And if the drill does not use for a long time, the display part (especially the processing table. ) should becoated with grease.
