Specifications
mine drilling rig machineDrilling depth:300m
Drilling dia.:75~200mm
Drilling Rig Machine for Gotechnical Prospectio

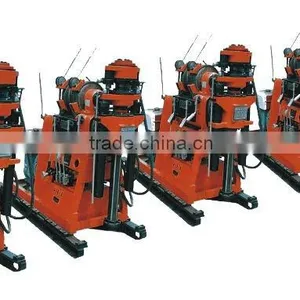

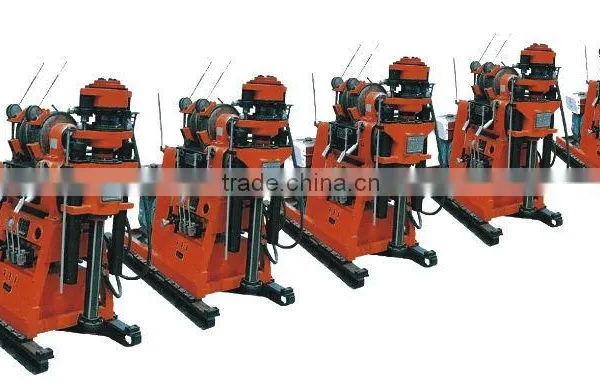

mine drilling rig machine HGY-300
Company introduction:
1. 32 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc
Features of mine drilling rig machine HGY-300 :
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of mine drilling rig machine HGY-300
Model |
HGY-300 Core Drilling Rig |
Drilling depth( m) |
300 |
Drilling rod diameter.(mm) |
Φ50 |
Head angle range |
0~360 |
Movable cylinder stroke (mm) |
400 |
Spindle speed( r/min) |
Positive rotation rate:34 67 115 189 238 156 307 531 868 1094 Reverse rotation rate: 38 173 |
Spindle hole diameter( mm) |
Φ65 |
Spindle output torque max(N.M) |
3100 |
Spindle stroke(mm) |
530 |
Lifting power max( KN) |
60 |
Driving force max(KN) |
40 |
Lifting speed( m/s) |
0.30 0.59 1.01 1.66 2.09 |
Lifting capacity(single) max(KN) |
30 |
Steel wire rope diameter (mm) |
13 |
Mode of chuck |
Full-hydraulic chuck or ball-type chuck |
Weight(power unit excepted)(Kg) |
1200 |
Overall dimensions(mm) |
2000*900*1600 |
Diesel engine model |
395K2( 19.8KW) |
Electromotor model |
Y180L-4( 22KW)
|

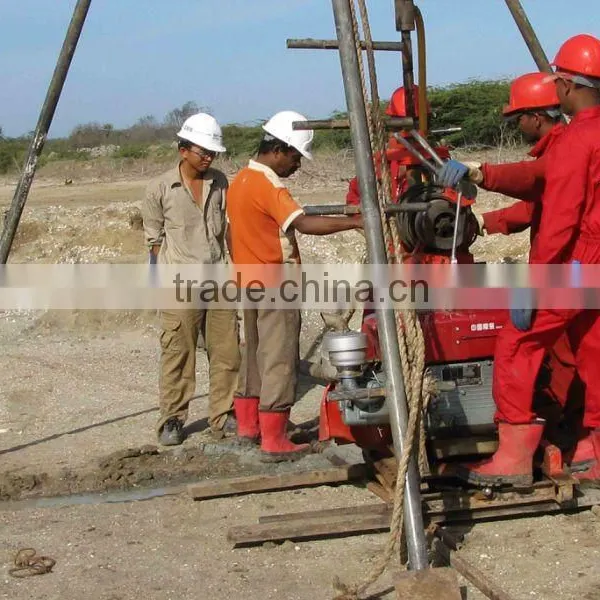

Application of mine drilling rig machine HGY-300 :
1.Construction drilling of the projects e.g. prospection, geotechnical investigation, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction;
2. Coal mining exploration, Ore exploration;
3. Small hole diameter water well drilling;
4. Geothermal pipe-installing for heat pump;
5. Small-diameter hole foundation piling drilling
