Specifications
multifunctional mineral prospecting drilling rig1.Exploration Drilling Rig
2.drill depth:1500m
al mining
Multifunctional mineral prospecting drilling rig
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification. The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
|
|
|
|
|
| Our Factory | our team of foreign trade | In 1992,100m drill in Antarctica in the world | Go to driiing site to train drilling knowledge |
Wooden case package

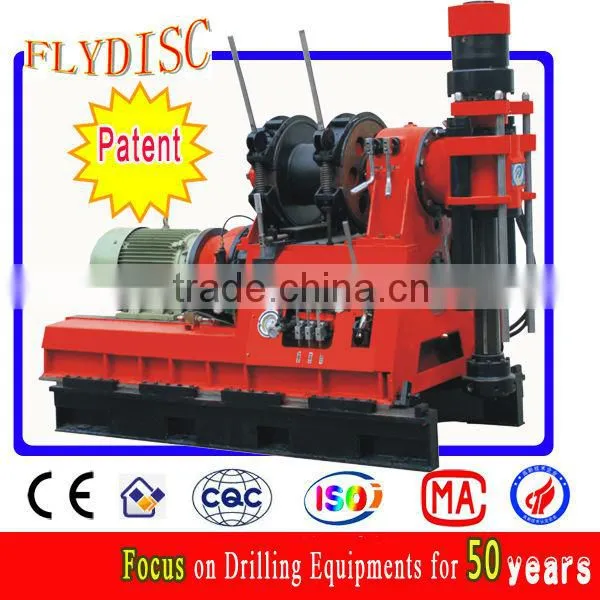

Features of HGY-1500 Core Drilling Equipment for Deep Hole Drilling :
1) Wide range of suitable rotary speed to meet various needs.
2) Adopted from the 'jiefang"CA151 auto parts, such as clutch and gear-Box.
3) Reasonable design of the transmission and shift on the principle of bevel gear.
4) A good grip with the disk spring on the Chuck.
5) Convenient to lift up and down the tower, all the work are performed by the hydraulic system.
Use of HGY-1500 Core Drilling Equipment for Deep Hole Drilling :
for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of Core Drilling Rig(HGY-1500T)
Model |
HGY-1500T Core Drilling Rig |
Drilling depth( m) |
1500~1200 |
Rod diameter( mm) |
Φ42~Φ50 |
Spindle speed( r/min) |
Positive rotation rate: 54 86 145 219 310 378 415 570 808 1081 Reverse rotation rate: 58 152 |
Spindle stroke(mm) |
600 |
Lifting power max( KN) |
80 |
Driving force max(KN) |
60 |
Spindle output torque max(N.M) |
7150 |
Spindle hole diameter( mm) |
Φ95 |
Cable diameter(mm) |
17.5 |
Drum circumferential velocity( 9 layers) |
130 |
Lifting speed( m/s) |
0.51 0.81 1.37 2.06 2.92 3.91 |
Lifting capacity(single) max(KN) |
40 |
Movable cylinder stroke (mm) |
400 |
Gear oil pump model |
2CB-FA32/10-FL |
Nominal displacement( ml/r) |
40 |
Nominal pressure( MPa) |
14 |
Electromotor model |
Y225S-4 or Y225M-4 |
Power( kw) |
37 or 45 |
Speed( r/min) |
1480 |
Diesel engine model |
R4105ZD1 |
Power( kw) |
56 |
Speed( r/min) |
2800 |
Diesel engine weght(Kg) |
385 |
Overall dimensions(mm) |
2460*1150*1888 |
Weight(power unit excepted)(Kg) |
4100 |
Head angle range |
0~90 |
Tower load(t) |
10 |
Tower height(m) |
9.5 |
Tower pedestal(m) |
4*4.5 |
Drill tools for exploration wireline
