XUL-100 Ground Hole Drill Rig

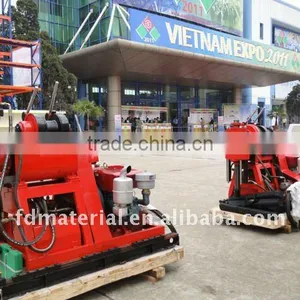

XUL-100 Ground Hole Drill Rig thumbnail-1

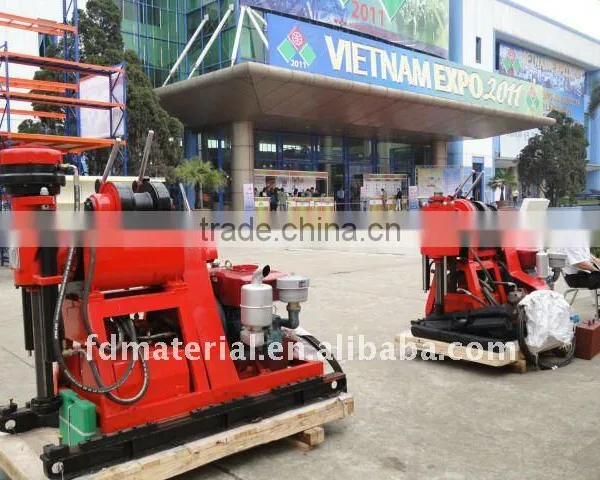

XUL-100 Ground Hole Drill Rig photo-1
US$ 1 - 2 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Other, Diesel or electric
Contact Supplier Request Quote Chat Now
Hunan Flydisc New Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
guangzhou/ shenzhen/ shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Other, Diesel or electric
Place of Origin Hunan, China
Brand Name Flydisc
Model Number XUL-100
Voltage 220v
Power(W) 12kw
Dimension(L*W*H) 1200*650*1300MM
Weight 550KG without power
Certification CE,ISO9001:2008
Warranty 6months
After-sales Service Provided Overseas service center available

Specifications

1) Advanced capability and high reliability.
2) Excellent design and easy operation.
3) Alternative-designed unit construction





Product Description



Drilling Rig(XUL-100)

This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.

Brief introduction:
1.32 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to:  Africa, the Middle East, South America, Asia,
   Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.

 Historical view:
1) 1992 the first drill rig for the sample boring from the deep stratum of antarctica in the world used by the Chinese Academy of science.
2) Best Quality Awards belonging to China National Nuclear Ministry Hunan province.

Features:
1) Advanced capability and high reliability.
2) Excellent design and easy operation.
3) Alternative-designed unit constructions.
4) Accessories in common use.

 Use:  for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.

Technological Data of Drilling Rigs:

     Model

Drilling Rig(XUL-100)

Drilling depth( m)

100

Drilling rod diameter.(mm)

42

Head angle range

360°

Movable cylinder stroke (mm)

300

Spindle speed( r/min)

 144 264 590 1083

Spindle hole diameter( mm)

54

Spindle output torque max(N.M)

800

Spindle stroke(mm)

370

Lifting power max( KN)

30

Driving force max(KN)

23

Lifting speed( m/s)

0.36 0.7 1.49 2.9

Lifting capacity(single) max(KN)

10

Steel wire rope diameter (mm)

11

Mode of chuck

Hand lever chuck

Weight(power unit excepted)(Kg)

550

Overall dimensions(mm)

1200*650*1300

Diesel engine model

Zs1100 ( 12.1KW)

Electromotor model

Y160M-4 ( 11KW)

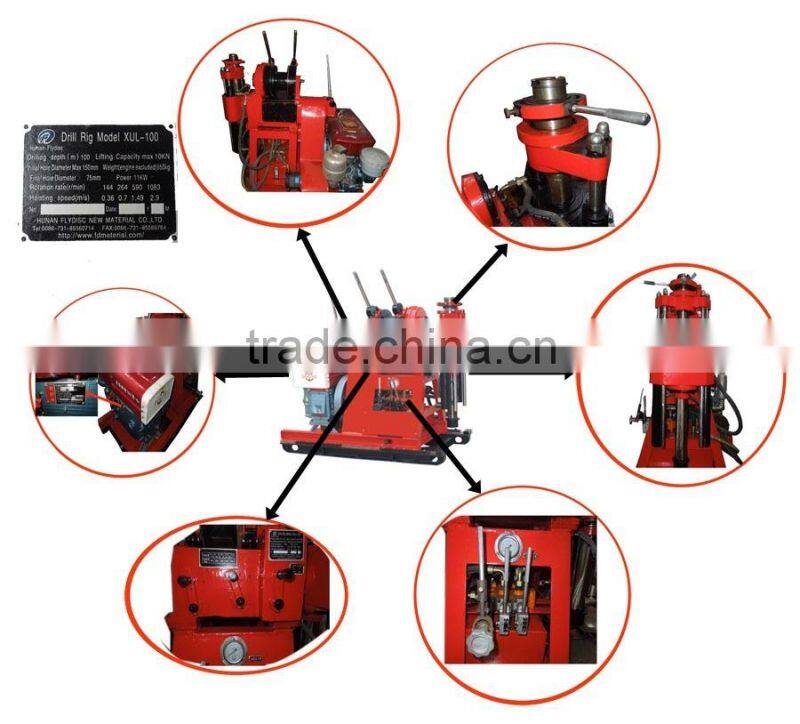

 XUL-100 ground hole drill rig

Packaging & Shipping



Production



Company Information

  XUL-100 ground hole drill rig

Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.





XUL-100 ground hole drill rigThe rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.



XUL-100 ground hole drill rig   XUL-100 ground hole drill rig   XUL-100 ground hole drill rig   XUL-100 ground hole drill rig
Our Factoryour team of foreign trade  In 1992,100m drill in Antarctica in the world            Go to driiing site to train drilling knowledge

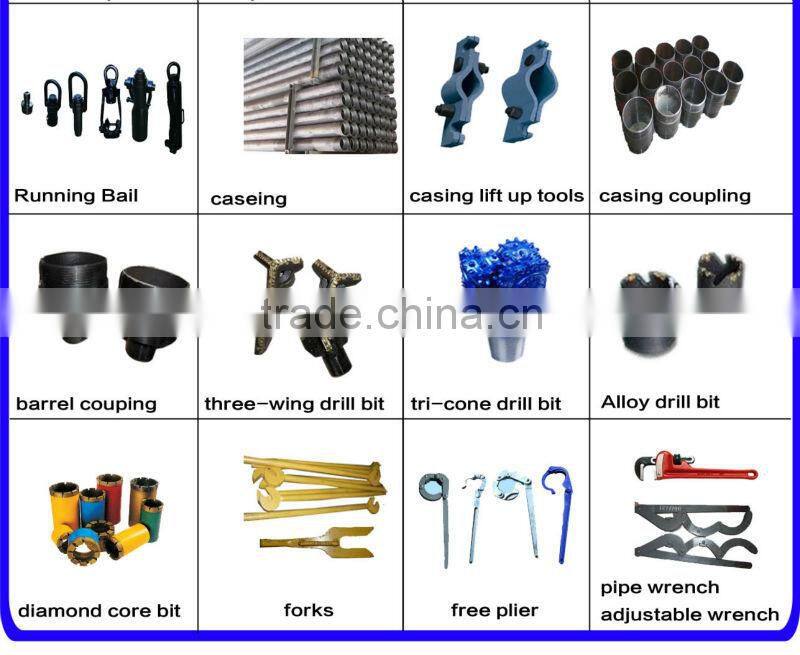

Matching Drill Tools

Drill tools for water well

XUL-100 ground hole drill rig

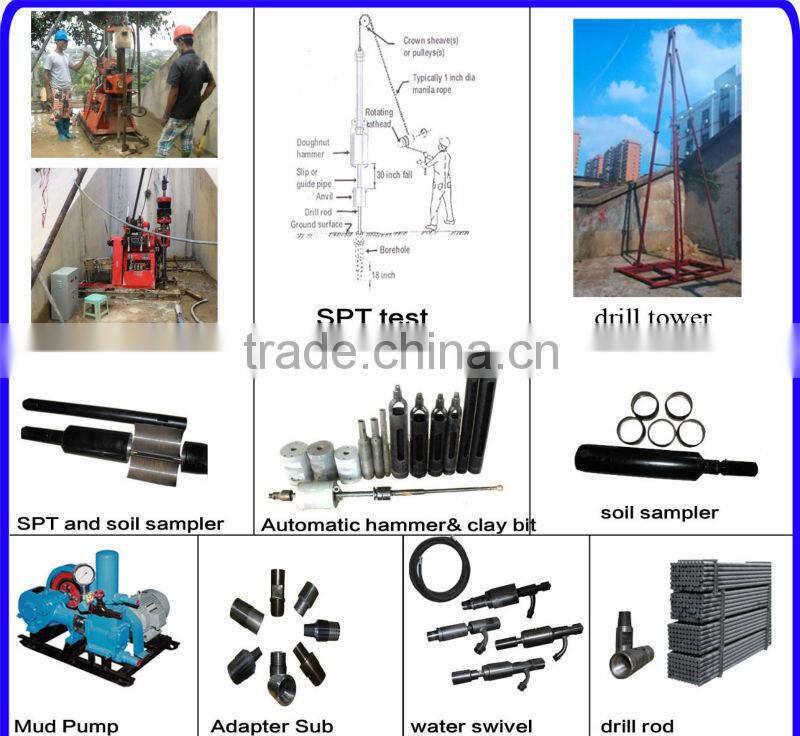

Drill tools for exploration XUL-100 ground hole drill rigXUL-100 ground hole drill rig

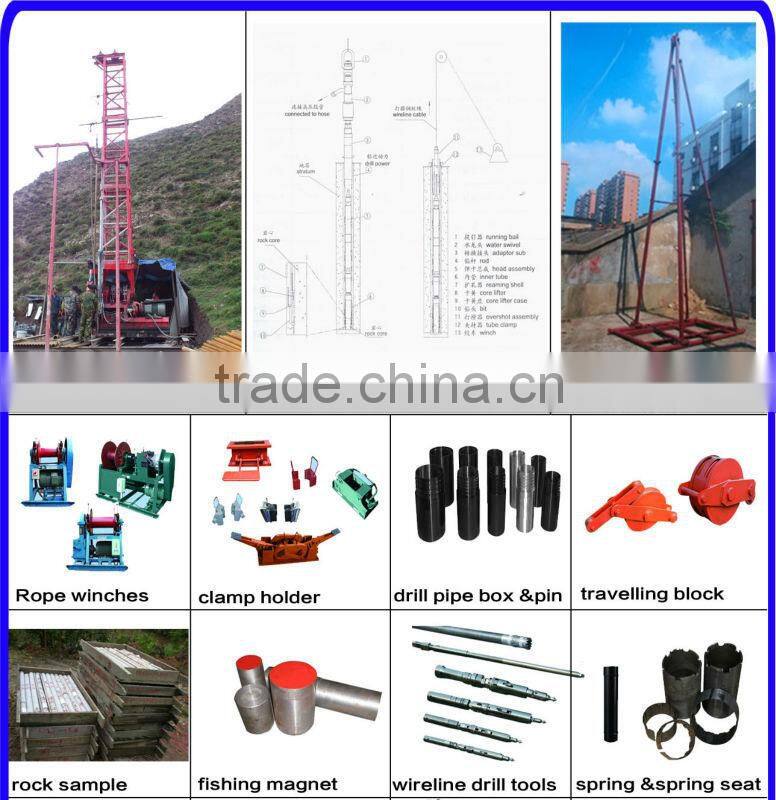

Drilling tools for wire-line coring:

XUL-100 ground hole drill rigXUL-100 ground hole drill rig
