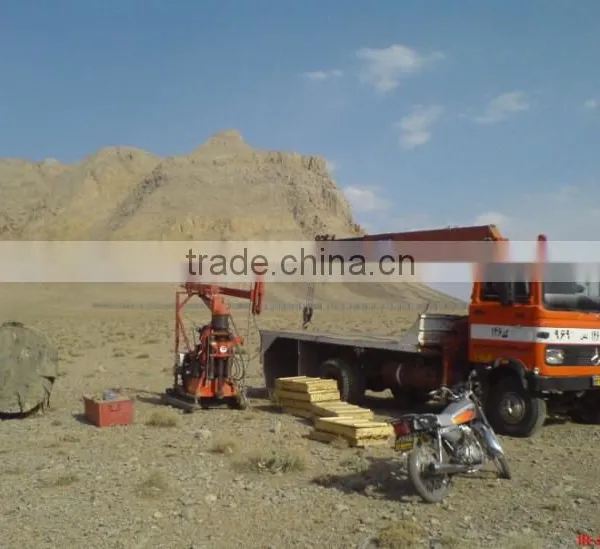

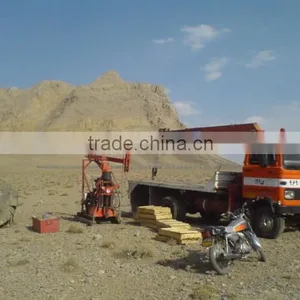

HGY-200 cheap ground hole drill rig
- 200 Set / Sets per Month
- guangzhou/shenzhen/shanghai
- T/T
-
3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
-
2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
-
The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
-
Coal mine tunnel drilling rig ZLJ350 head can be turned
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Hunan, China | Brand Name: | Flydisc | Model Number: | HGY-200 |
Usage: | Other | Voltage: | 220v | Power(W): | 14.7kw |
Dimension(L*W*H): | 1860*800*1400mm | Weight: | 750KG(without power) | Certification: | CE,ISO9001:2008 |
Warranty: | 6months | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
1,Max depth:200m with 75mm(46~250mm)2,Two patents
3,Hydraulic or ball chuck
4,Angle: 0-360.
Drilling Rig(HGY-200)
1,Max depth:200m with 75mm(46~250mm)
2,Two patents
3,Hydraulic or ball chuck
4,Angle: 0-360.
Brief introduction:
1.32 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Two patents for HGY-200 drilling rig:
Utility patent for transmission case.
Design patent for appearance.
Drilling Ability:
Drilling depth: 200m
Drill hole diameter: 75mm(46~250mm)
Max successful drilling depth: 427m, 478m with 75mm hole diameter
Features:
1) Good stability and high reliability.
2) Multilevel positive and reverse rotate speed.
3) The complete hydraulic chuck and vertical spindle.
4) Convenient to transport with the small volume and light weight.
5 )Perfect frame's rigidity ,low center of gravity and good stability.
Technological Data of Drilling Rigs:
Model | Drilling Rig(HGY-200) |
Drilling depth( m) | 200 |
Drilling rod diameter.(mm) | Φ50/Φ42 |
Head angle range | 360° |
Movable cylinder stroke (mm) | 360 |
Spindle speed( r/min) | Positive rotation rate:60 150 240 340 550 830 Reverse rotation rate: 35 85 135 195 330 480 |
Spindle hole diameter( mm) | Φ63/Φ95 |
Spindle output torque max(N.M) | 1700 |
Spindle stroke(mm) | 500 |
Lifting power max( KN) | 50 |
Driving force max(KN) | 37 |
Lifting speed( m/s) | 0.6 2.3 3.4 |
Lifting capacity(single) max(KN) | 20 |
Steel wire rope diameter (mm) | Φ11 |
Mode of chuck | hydraulic chuck or pillar-type chuck |
Weight(power unit excepted)(Kg) | 750 |
Overall dimensions(mm) | 1860*800*1400 |
Diesel engine model | HGY-200C/D/E Zs1110 ( 14.7KW) HGY-200F Zs1115(16.2KW) |
Electromotor model | Y160L-4 ( 15KW) |
Use: for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
| | | |
