Specifications
1) Advanced capability and high reliability.2) Excellent design and easy operation.
3) Alternative-designed unit construction

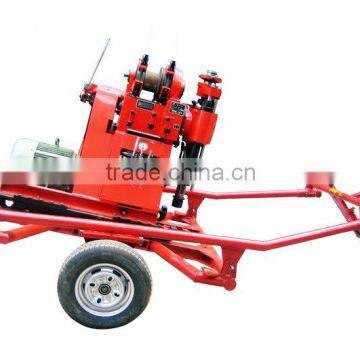

XUL-100 man portable drilling rig
This machine is widely used in construction work such as exploration, railway, highway, port, bridge, hydropower, tunnel, water well, building, engineering geological prospecting, heavy caliber drilled pile and minor-caliber diamond core drilling.
Brief introduction of XUL-100 man portable drilling rig :
1.50 years professional manufacture
2. Certificate: ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Historical view of XUL-100 man portable drilling rig :
1) 1992 the first drill rig for the sample boring from the deep stratum of antarctica in the world used by the Chinese Academy of science.
2) Best Quality Awards belonging to China National Nuclear Ministry Hunan province.
Features of XUL-100 man portable drilling rig :
1) Advanced capability and high reliability.
2) Excellent design and easy operation.
3) Alternative-designed unit constructions.
4) Accessories in common use.
Use of XUL-100 man portable drilling rig : for geotechnical investigation, exploring, prospecting, water well drilling;
Widely used in the construction of the projects e.g. prospection, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploring, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Technological Data of man portable drilling rig :
Model | Drilling Rig(XUL-100) |
Drilling depth( m) | 100 |
Drilling rod diameter.(mm) | Φ42 |
Head angle range | 360 |
Movable cylinder stroke (mm) | 300 |
Spindle speed( r/min) | 144 264 590 1083 |
Spindle hole diameter( mm) | Φ54 |
Spindle output torque max(N.M) | 800 |
Spindle stroke(mm) | 370 |
Lifting power max( KN) | 30 |
Driving force max(KN) | 23 |
Lifting speed( m/s) | 0.36 0.7 1.49 2.9 |
Lifting capacity(single) max(KN) | 10 |
Steel wire rope diameter (mm) | 11 |
Mode of chuck | Hand lever chuck |
Weight(power unit excepted)(Kg) | 550 |
Overall dimensions(mm) | 1200*650*1300 |
Diesel engine model | Zs1100 ( 12.1KW) |
Electromotor model | Y160M-4 ( 11KW) |
Q:How to choose drilling rig?
Answer:drilling machine including drilling rig, mud pump, engine ( diesel engine or motor) and tower. Choose drilling machine, should be based on drilling purpose, hole depth, hole structure and transportation condition.
