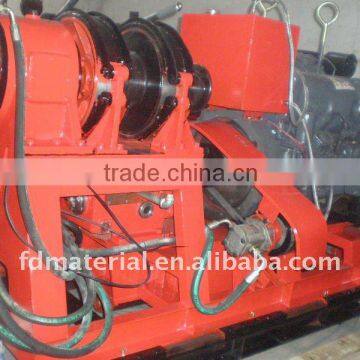

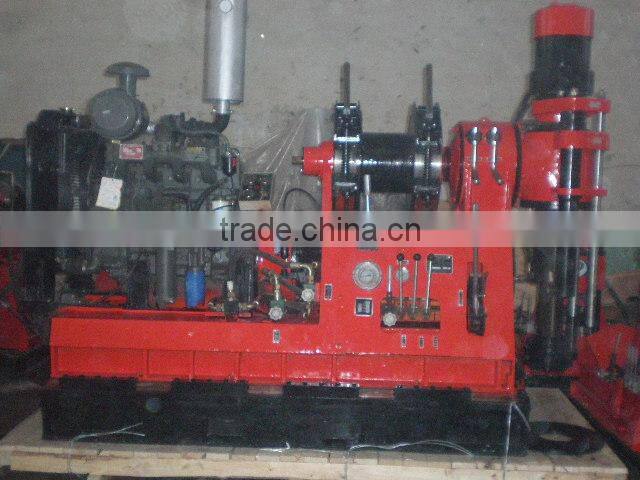

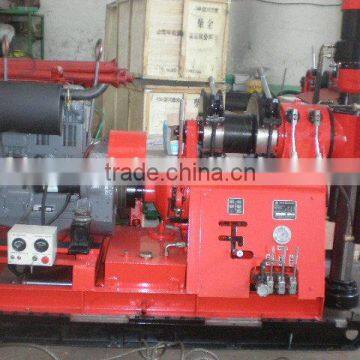

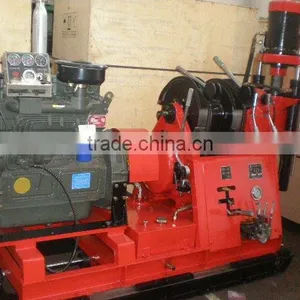

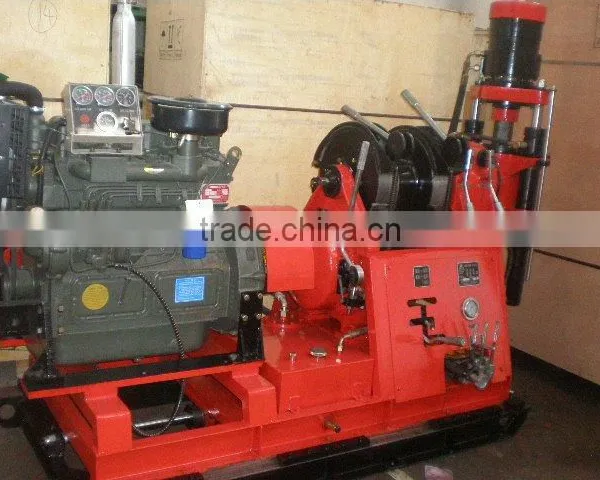

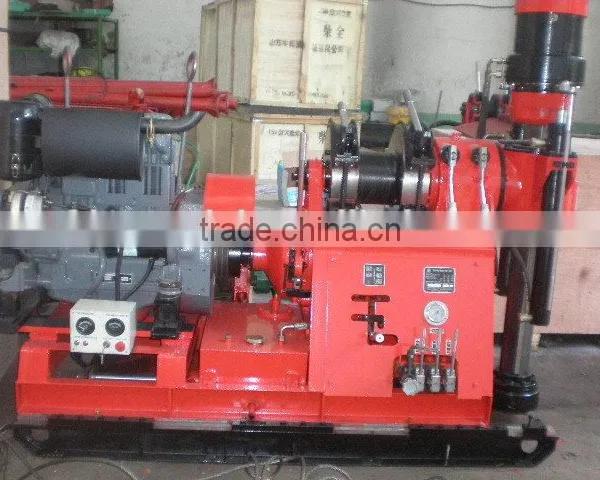

Help CenterHot Sale in Oversea Market! HGY-300 Core Drill Rig Machine for Sale
Related Products
-
High Quality! HGY-2000 Wire-line Core Drill Rig for SaleNegotiableMOQ: 1 Set -
HGY-650 High Quality and Efficiency Wire-line Core Drill Rig for SaleNegotiableMOQ: 1 Set
-
HGY-1000 Spindle Wire-line Core Drill Rig MachineNegotiableMOQ: 1 Piece
-
HGY-1000 Portable Stone Drilling EquipmentNegotiableMOQ: 1 Piece
-
HGY-1000 Portable Soil Sample and Rock Drill EquipmentNegotiableMOQ: 1 Piece
Specifications
Drilling depth: 300mDrill dia.: 75mm

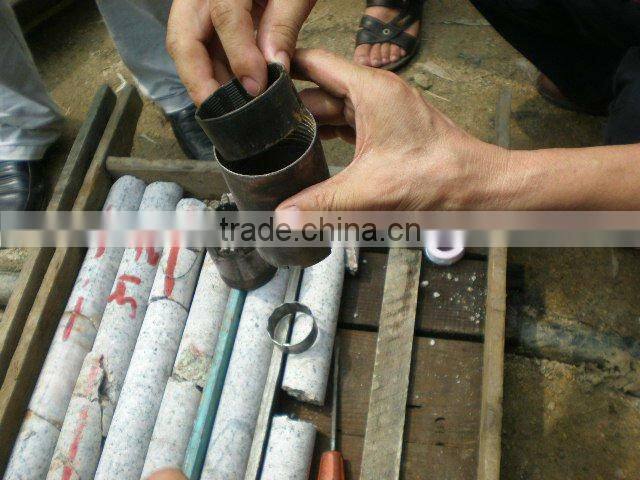

Take rock core sample in mining exploration, geological survey
Company introduction:
1. 50 years professional manufacturer
2. National-control Group company with 4 part factories
Main products: drilling rig and drill bit, others: diamond, PDC, bush
3. Certificate: ISO9001:2008
4. Main market: South America, Africa, the Middle East, Aisa
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Features :
1) Wide range of suitable rotary speed to meet various needs.
2) Common auto parts, such as clutch, transmission case and shifting structure.
Technological Data of Drilling Rigs:
Model | HGY-300 Drilling Rig |
Drilling depth( m) | 300 |
Drilling rod diameter.(mm) | Φ50 |
Head angle range | 0~360° |
Movable cylinder stroke (mm) | 400 |
Spindle speed( r/min) | Positive rotation rate:50 87 137 189 230 399 629 868 Reverse rotation rate: 39 180 |
Spindle hole diameter( mm) | Φ63/Φ95 |
Spindle output torque max(N.M) | 2800 |
Spindle stroke(mm) | 530 |
Lifting power max( KN) | 60 |
Driving force max(KN) | 40 |
Lifting speed( m/s) | 0.41 0.72 1.13 1.6 |
Lifting capacity(single) max(KN) | 30 |
Steel wire rope diameter (mm) | Φ13 |
Mode of chuck | hydraulic chuck or pillar-type chuck |
Weight(power unit excepted)(Kg) | 1200 |
Overall dimensions(mm) | 2315*900*1700 |
Diesel engine model | K4100D(30KW) |
Electromotor model | Y180L-4( 22KW) |
Q:Rig using common sense?
Answer:
(1) class maintenance:
The outer surface of the drill is wiped clean, and pay attention to the rig substructure slideway, vertical surface cleaning and good lubrication.
The examination of all open bolt, nut, insurance and other solid and reliable.
According to the lubrication requirements of the lubricating oil or grease, see Figure two and table a.
The check gearbox, gear box and the hydraulic system the location of oil tank.
The check around the oil leakage and as the condition to be treated.
The elimination in the class occurred within the other fault.
(2) peripheral maintenance:
The complete class maintenance programs required.
The removal of chuck and slips on the tooth surface dirt, mud.
The clean the inner surface of the brake oil, mud.
The excluded from this week 's fault.
(3) month maintenance:
The complete class, weekly maintenance programs required.
The disconnect chuck, cleaning slips and slips seat. Should be replaced if damaged.
The cleaning tank filter, replacement of deterioration or soiled by hydraulic oil.
The examination of the major components of the intact state, should be replaced if damaged, can not be wounded the work.
The complete elimination of the fault occurred in the month.
And if the drill does not use for a long time, the display part (especially the processing table. ) should becoated with grease.
