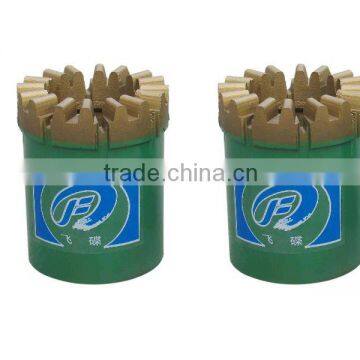

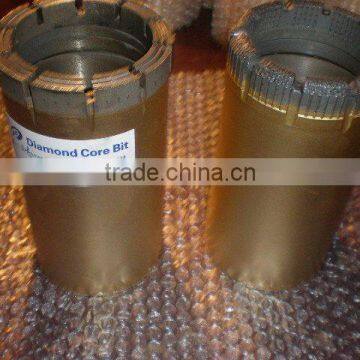

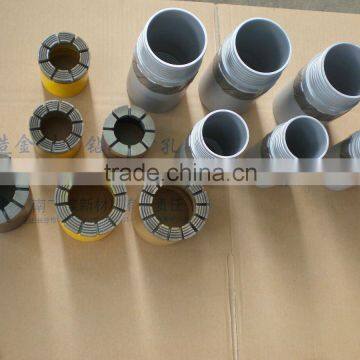

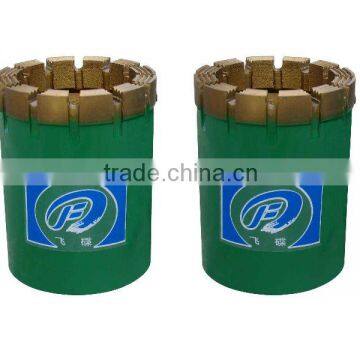

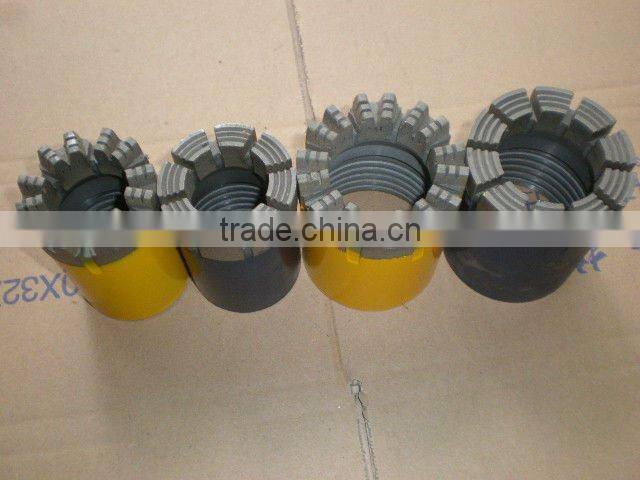

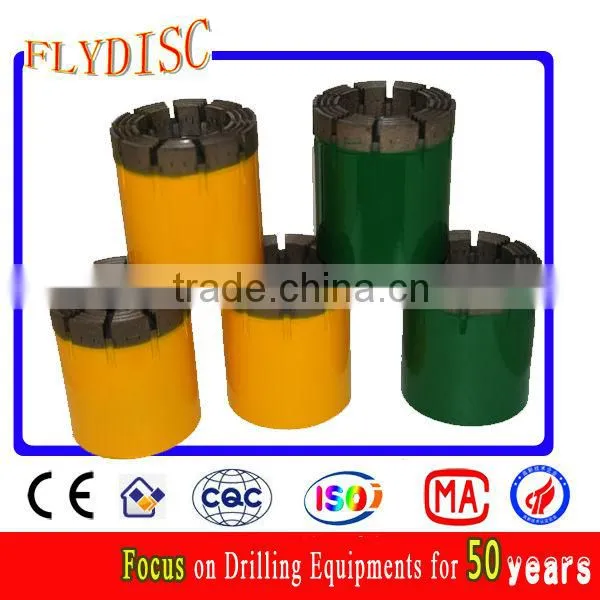

Help CenterCoal Mining, Ore Mining, Water Well Drilling Diamond Core Drill Bits
Related Products
Diamond Core Drill bits, Rock Drill Bits
Brief introduction:
1.50 years professional manufacture
2. Certificate: ISO9001:2000 and ISO9001:2008
3. Export to: Africa, the Middle East, South America, Asia,
Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.
Size:
46~325mm with national and international standard
Main exportation: AQ,BQ,NQ,HQ,PQ wire-line drill bit
ITEM |
DIAMOND BIT |
REAMING SHELL |
|||||
"Q" Series Wireline |
Size |
Bit-set OD |
Bit-set ID |
||||
mm |
inch |
mm |
inch |
mm |
inch |
||
AQ |
47.6 |
1.88 |
26.97 |
1.06 |
48 |
1.89 |
|
BQ |
59.5 |
2.35 |
36.4 |
1.43 |
59.9 |
2.36 |
|
NQ |
75.3 |
2.97 |
47.6 |
1.88 |
75.7 |
2.98 |
|
HQ |
95.58 |
3.77 |
63.5 |
2.5 |
96 |
3.78 |
|
PQ |
122 |
4.8 |
84.96 |
3.35 |
122.6 |
4.83 |
|
Type:
Impregnated diamond drill bit; Natural surface-set diamond drill bit;
Electroplated diamond bit; Thin-wall diamond bit;
Concentric circular saw tooth diamond dril bit; Casing shoe bit
Electroplated Diamond Hole Reamer, Sintered Diamond Hole Reamer
Use:
FLYDISC core bits can drill a broad range of geological formations from the softest to the hardest rock, widely used in all kinds of drillings for prospecting, water and electricity building and construction industry of road, railway, bridge and building taking out core to examine stake,etc.
Structure:
They are manufactured with very small, high quality synthetic diamonds mixed evenly through a metal matrix. FLYDISC core bits are manufactured to give optimum penetration rates and bit life, which is required to keep the cost of diamond drilling to a minimum.
The custom core bits can be manufactured according to the samples or drawings.
Our company has produced drilling equipments for 50 years. We have passed ISO9001:2008, TS16949, CE Certification, MA Certification, High-tech Enterprise Certification.
The rigs are widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc. The main products are engineering geological drilling rig;water well drilling rig; vertical shaft 100, 200, 300, 650, 1000, 1500m rigs, full hydraulic power head 1000, 2000m rigs. At the same time, we produce drill bits and drill tools matching with the drilling rigs. Many rigs and drill bits possess patent certificates. Our products have exported to many countries of world. Such as Nepal, India, SriLanka, Afghanistan, Malaysia, Iran, Sudan, Chile etc.
