Geological Diamond Core Drill Bits

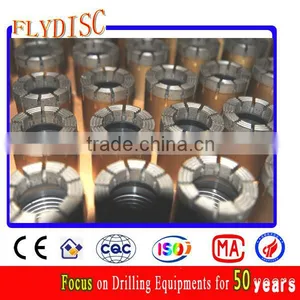

Geological Diamond Core Drill Bits thumbnail-1

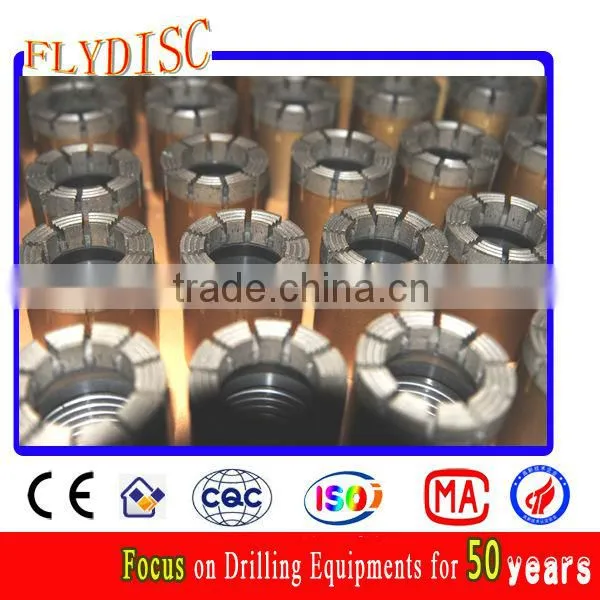

Geological Diamond Core Drill Bits photo-1
US$ 1 - 2 MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
FLYDISC
Model Number:
46~250mm
Contact Supplier Request Quote Chat Now
Hunan Flydisc New Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen /Shanghai/ guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name FLYDISC
Model Number 46~250mm
Type Core Drill Bit
Material Diamond
Use Metal Drilling

Specifications

NMLC Geological Diamond Core Drill Bits and Reaming Shell
46~250mm,core drill bit for exploring,soil investigation,
drill rock

 diamond core drill bitsand Reaming Shell:



Company introduction:



1.50 years professional manufacture

2. Certificate: ISO9001:2008

3. Export to: Africa, the Middle East, South America, Asia,

Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.



Company introduction:



1.32 years professional manufacture

2. Certificate: ISO9001:2000 and ISO9001:2008

3. Export to: Africa, the Middle East, South America, Asia,

Countries: South Africa, Zambia, Sudan, Iran, South Korea, Costa Rica etc.



Size for Diamond Core Drill Bits

Size: 46~325mm diamond core drill bits with national and international standard

Main exportation: AQ,BQ,NQ,HQ,PQ wire-line diamond core drill bits

ITEM

DIAMOND BIT

REAMING SHELL

"Q" Series Wireline

Size

Bit-set OD

Bit-set ID

mm

inch

mm

inch

mm

inch

AQ

47.6

1.88

26.97

1.06

48

1.89

BQ

59.5

2.35

36.4

1.43

59.9

2.36

NQ

75.3

2.97

47.6

1.88

75.7

2.98

HQ

95.58

3.77

63.5

2.5

96

3.78

PQ

122

4.8

84.96

3.35

122.6

4.83



Type for Diamond Core Drill Bits :

Impregnated diamond drill bits; Natural surface-set diamond drill bits;

Electroplated diamond bits; Thin-wall diamond bits;

Concentric circular saw tooth diamond dril bits; Casing shoe bits

Electroplated Diamond Hole Reamer, Sintered Diamond Hole Reamer



Size Available:
1. A-Gauge Core Bits: AQ, AQ-RSG, AWG(AX), AWM, AWT, LTK48

2. B-Gauge Core Bits: BQ, BQ-RSG, BQ-2.400, BQ3, BWG(BX), BWM, BWT, LTK60, TBW

3. N-Gauge Core Bits: NQ, NQ-3.032, NQ2, NQ2-RSG, NQ3/NQTT, NQ3-RSG, NQ3-3.032, NMLC, NWG(NX), NWM, NWT, TNW

4. H-Gauge Core Bits: NQ, HQ-RSG, HQ-3.830, HQ-3.895, HQ3/HQTT, HQ3-RSG, HQ3-3.380, HQ3-3.895, HMLC, HWF-Long, HWF-Short, HWG(HX), HWT

5. P- Gauge Core Bits: PQ, PQ3, PWF-Long, PWF-Short

6. S- Gauge Core Bits: SWF-Long, SWF-Short

7. U- Gauge Core Bits: UWF-Long, UWF-Short

8. Z- Gauge Core Bits: ZWF-Long, ZWF-Short

9. T, TT, T2 &TB Series Metric Core Bits: T36, TT46, T2-46, TB56, TT56, T2-56, T2-66, T2-76,

T2-76 coreline, T2-86, T2-86 coreline, T2-101, T2-101 coreline

10. T6 Series Metric Core Bits: T6-76, T6-86, T6-101, T6-116, T6-131, T6-146

11. T6S Series Metric Core Bits: T6S-76, T6S-86, T6S-101, T6S-116, T6S-131, T6S-146

12. B Series(ISO3552-1) Metric Core Bits: B36, B46, B56, B65, B76, B86, B101, B116, B131, B146

13. Chinese Standard Metric Core Bits for Single Tube Core Barrels: φ36, φ46, φ56, φ59, φ75, φ91, φ110, φ130, φ160, φ170, φ219, φ275

14. Chinese Standard Metric Core Bits for Double Tube Core Barrels: φ56, φ59, φ75, φ91

15. Chinese Standard Metric Core Bits for Wireline Core Barrels: φ59, φ75, φ91



The custom core drill bits can be manufactured according to the samples or drawings.











geological diamond core drill bits
