About Gmee Solar
GMEE SOLAR, specializing in turnkey solution for solar module production line, so far has exported machines and production
lines to many countries, like Mexico, UK, India, Thailand, Malaysia, US, Japan, Germany, Italy, etc., and continuously gets praise
and trust from customers. With 8+ years of experience in the Solar PV industry, GMEE SOLAR together with its solid parters
has formed a professional team to fulfill its customer satisfaction. .
GMEE SOLAR’s head company -- YIHENG
YIHENG is the first and largest manufacturer of laminator in China since 2001. Its “ORIENT” laminators have 70% high-end market in China. The largest customers include: Yingli solar, CSI, Jinko, and JA solar
GMEE SOLAR’s Solid Partner -- GEOLITE
GEOLITE was founded in 2003, and owns patents of 13 advanced technology. GEOLITE invented the first auto solar cell stringer
in China and is the leading manufacturer of auto stringer with complete solution of the auto solar module production line.
1. CE & TUV Certified Laminator
2. For solar module production and laboratory
3. Flexible operation modes
4. PLC-controlled, touch screen operation
Lamination area: various sizes available. | |||
Total Power | 37 kW | Power Supply | 380 VAC, 3-phase 5-Wire |
Heating Medium | Oil | Temperature Control | PLC |
Laminating Time | 2 - 4 Minutes | Environmental Temperature | 0 -50 Degree C |
Temperature Accuracy | +/- 1 Degree C | Temperature Uniformity | +/- 2 Degree C |
Temperature Range | 30 - 180 Degree C | Maximum Working Temperature | 180 Degree C |
Pumping Speed | 70 L/s | Air Supply | 0.6 - 1.0 MPa |
Height of Opening Lid | 300 mm | Module Thickness | 20 mm |
Features:
| |
Heating | 1. Patened oil heating solution. 2. Even temperature distributing |
Loading/ unloading | 1. Auto loading/ unloading optional, which is ready for connection with auto production line; 2. Auto self-cleaning system;
|
Controlling | PLC-controlled, with standard industrial touch screen. English interface. Precise temperature controlling |
Laminating | Latest lamination technology providing highest yield. Orient is the only one in China to use this advanced technology in laminating process. |
Machine Photos:
1. Vacuum Pump

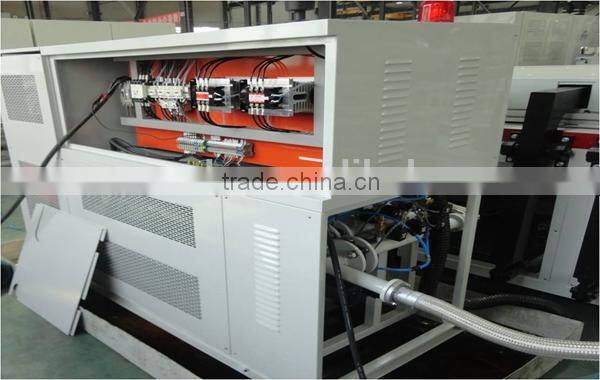

2. Back side of laminator

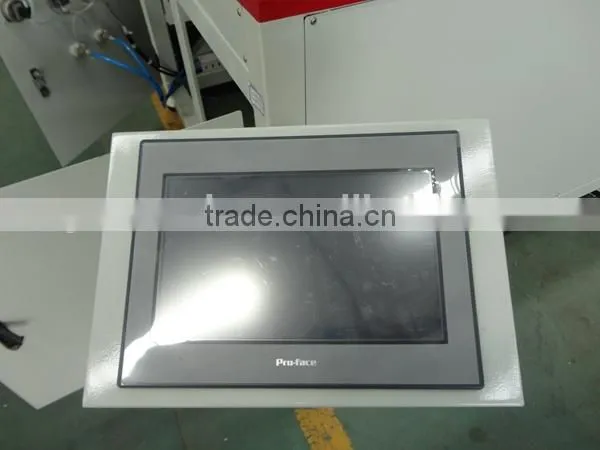

3. Touch Screen

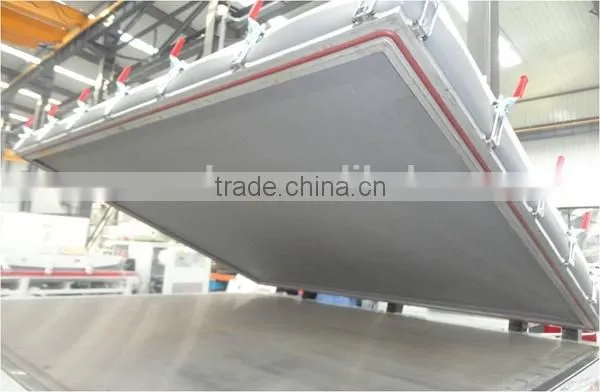

4. Open Lid

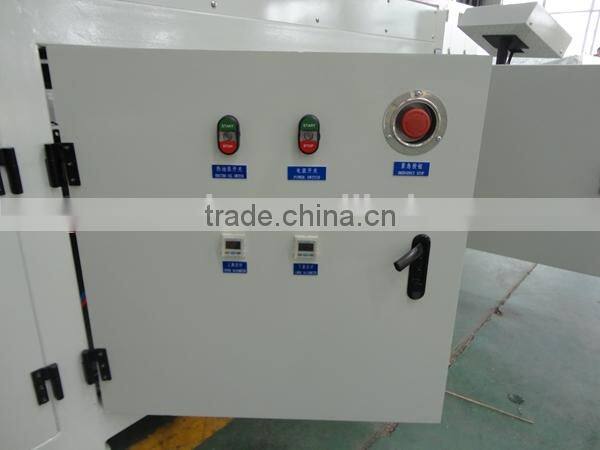

5. Control Panel
Package: vacuum-packed laminator
Export wooden case
Stuffing
