PE coated red color prepainted aluminum coil for roofing
Aluminum alloy:
v Alloy:3003/3004/3105
v Base Material :aluminum coil
Specifications of color aluminum:
v Thickness: 0.3mm~1mm
v Width: ≤1700mm
v Coil ID: ø508mm
v Coil Weight: ≤6T
coating deta of color aluminum:
v Zinc Coating:50~200g/m2
v Painting method: PCM printing,2 color coating and 2 baking,
no color difference, extreme flatness technique method
v Frontispiece painting: KYNAR500 fluorocarbon resin painting
( more than 70% fluorocarbon resin)
v The thickness of coating: ≥30μ
v Protective layer: PE≥80μ
v Gloss requirement: 20%~60%.
v Color: according to the customer’s requirements
Coating pattern:
v Pattern: Wood imitation, Marble, Brush Brick, and Camouflage series, etc
v Paint: PE , PVDF
Photophysical properties:
v Salt Spray :≥720hr
v Acid Stability: Dip in 5% HCL liquor for 300 hr , no bubble , no color change and no peel-off
v Alkali resistance: Dip in 5% NaOH liquor for 300 hr , no bubble , no color change and no peel-off
Product name |
alloy |
Temper |
Thickness |
Width |
Weight/coil |
|
Coating aluminum coils |
1100 |
All tempers |
0.3-3.0mm |
30-1850mm |
2.5-9MT |
1050 |
0.3-3.0mm |
30-1850mm |
2.5-9MT |
||
1060 |
0.3-3.0mm |
30-1850mm |
2.5-9MT |
||
3003 |
0.3-3.0mm |
30-1560mm |
2.5-9MT |
||
3004 |
0.3-3.0mm |
30-1560mm |
2.5-9MT |
||
3005 |
0.3-3.0mm |
30-1560mm |
2.5-9MT |
||
3104 |
0.3-3.0mm |
30-1560mm |
2.5-9MT |
||
3105 |
0.5-3.0mm |
30-1560mm |
2.5-9MT |
||
5005 |
0.5-3.0mm |
30-1560mm |
2.5-9MT |
||
5052 |
0.5-3.0mm |
30-1560mm |
2.5-9MT |
||
5754 |
0.5-3.0mm |
30-1560mm |
2.5-9MT |
Features:
1)Fireproof and water resistant, excellent heat and sound insulation
2) Excellent surface flatness and smoothness
3) Superior weather, corrosion and pollutant resistance
4) Even coating, various colors
5)Super peeling strength
6) Superior impact resistance
7) Lightweight and easy to process
8) Easy to maintain

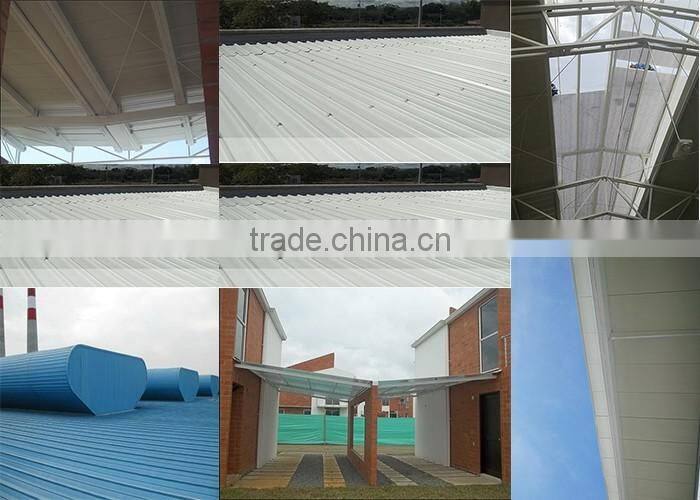

Applications of color aluminum coil:
Application
Building exterior application
Building interior application
Furniture
Household appliances
Steel windows
Outdoor application
Roof,gutters, structural balcony, panels, window sills, window frames, gates, garage doors, rolling doors, booths, shutters, watch rooms, makeshift houses, street waiting room (booth), refrigerators, etc.
Indoor application
Room doors, dividing walls, door frames, light house steel structures, sliding doors, screens, ceilings, toilets, interior elevator lobby, stairway ventilating duct, communication pipelines.
Packing show:

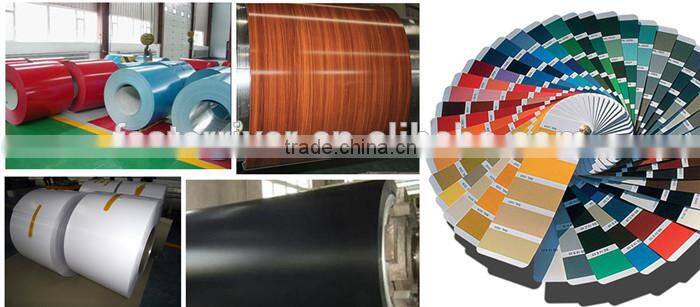

Color range:
