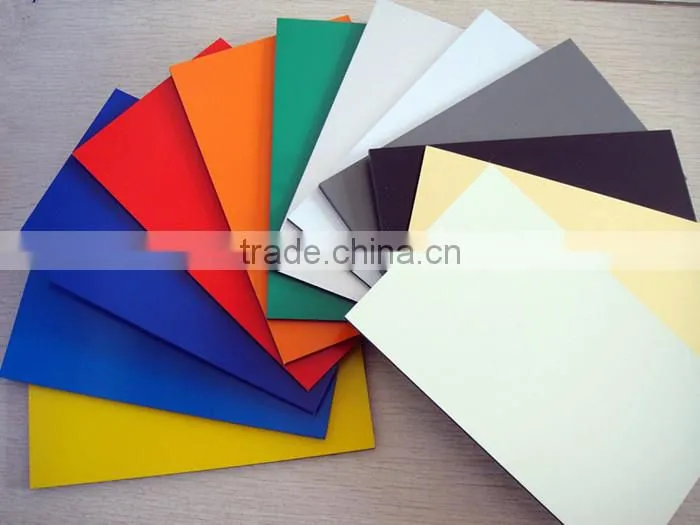

High Strength colour coated anodized aluminum sheets for building
Specification:
Product |
colour coated aluminum sheet |
Alloy: |
A1100/ A8011 |
Temper |
H14, H16, H18, H24 etc. |
Thickness |
0.25-0.70mm |
Width |
From 56mm to 1600mm |
Color |
Customized, you can choose from our color chart, or we adjust the special color as the samples you offer. |
Coating |
PE coating, PVDF coating, Back coating |
Coating thickness: |
0.18mm for PE coating, 0.25mm for PVDF coating |
Characteristic:
1) High gloss
2) High flexibility
3) Impact resistance
4) Excellent weather-proof durability
5) Anti-ultraviolet
6) High erosion resistance
7) Stable color and gloss
8) Good mechanical processing performance
9) Abrasion resistance
Technical information:
Test Item |
National standard |
Test Result |
Color Difference |
ΔE≤2.0 |
ΔE≤1.5 |
Gloss Difference |
≤10 |
≤5 |
Coating Thickness |
Two layers Min 23μm |
≥25μm |
Pencil Hardness |
≥HB |
≥HB |
T-bend |
≤2T |
≤2T |
Adhesion |
Grade 0 |
Grade 0 |
Impact |
≥50kg.cm |
≥50kg.cm |
Boiling water Resistance |
2h No change |
4h No change |
Solvent Resistance |
200 times paints remaining |
500 times paints remaining |
Acidity Resistance |
5%HCL 24hrs No change |
No Change |
Alkali Resistance |
5%NaOH 24hrs No change color ΔE≤2.0 |
No Change |
Nitric acid Resistance |
ΔE≤5.0 |
ΔE≤5.0 |
Oil Resistance |
20Φ oil 24hrs No change |
No Change |
Salt Spray Resistance |
4000hrs ≤Grade 1 |
No Change |
Abrasion resistance |
≥5L/μm |
≥5L/μm |
Dirt Resistance |
≤5% |
≤5% |
Color retaining |
4000 hrs ΔE≤4.0 |
4000 hrs ΔE≤3.0 |
Gloss weaken Level |
4000 hrs ≤ Grade 2 |
4000 hrs ≤ Grade 2 |
MEK |
4000 hrs No change |
4000 hrs No change |
Applications:
1. Raw materials of aluminum ceiling, aluminum composite panel, aluminum sheet.
2. Mterials of aluminum signs, advertisement board
3. Roofs, wall cladding.
4. Package materials, flip off seals
Kinds of other types and serieses of Aluminum products for choice. Any needs or
interests, welcome your inquiry, pleased to help!!!
Henan FASTARRIVER Trade Co., Ltd., located in Zhengzhou City (center China), is a professional supplier of aluminum products. The main products are 1 Series, 3 Series, 4 Series, 5 Series, 6 Series, 7 series, 8 series, and dozens of alloy grades. There are aluminum sheet, aluminum coil, aluminum foil, PS version of the base, electrolytic capacitor with aluminum foil, Single zero foil, double zero foil material, brazing sheet, embossing roller and coating materials, gold and silver mirror aluminum, aluminum circle, and so on.
Our products are exported to North America, South America, and the European markets. To meet various requirements from customers, we have established a complete quality control system from incoming material inspection, production process control, to final inspection according to the ISO9001 system.
Q: How to contact your company?
A: With TradeManager or Skype or Email or the other ways we have written upon.
Q: Can you give us a quotation right now?
A: Please give us detailed technical data. Then we will make a design and quotation for you as soon as
possible.
Q: What is the MOQ (Minimum Order Quantity)?
A: 1 ton
Q: Do you provide your products catalogue?
A: Of course, I will send it to your E-mail if it's convenient to you.
Q: What are your payment terms?
A: We accept L/C, D/A, D/P, T/T, Western Union, MoneyGram etc.
Q: Do you supply other products?
A: Yes, our main products include Aluminum Sheet, Aluminum Coil, Color Aluminum, Mirror Aluminum,
Embossed Aluminum, and Aluminum Foil, Aluminum Circle, Aluminum Tube etc.
At the same time, different dimension can be customized .Welcome your inquiry.
