Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acuvim-L Series Digital Panel Power Meter

Acuvim-L Series Digital Panel Power Meter

Name: Acuvim-L Series Digital Panel Power Meter
Brand: Accuenergy
SKU: 120948429
Availability: InStock

Acuvim-L Series Digital Panel Power Meter thumbnail-1

Acuvim-L Series Digital Panel Power Meter photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Beijing, China

Brand Name:

Accuenergy

Model Number:

Acuvim-L

Contact Supplier Request Quote Chat Now

Accuenergy Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Beijing

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Beijing, China

Brand Name Accuenergy

Model Number Acuvim-L

Measuring Current Range 0-50000A, 0-50000A

Measuring Voltage Range 20V-1000kV, 20V-1000kV

Accuracy Class 0.5s

Operating Temperature -25℃- 70℃, -25℃- 70℃

Dimensions 96x96x64.3mm, 96x96x65mm

Specifications

1.True-RMS measuring parameter
2.4-quadrant Energy
3.Quality Analysis
4.Over range alarm
5.Energy pulse output

The Acuvim-L is Digital Panel Power Meter by Accuenergy. It is the ideal choice for monitoring and controlling of power distribution system. Some of the features and electric power parameters available on the Acuvim-KL are:

True-RMS Measuring Parameter
4-quadrant Energy
Power Quality Analysis
Over/Under Limit Alarm
Energy Pulse Output
TOU, 4 Tariffs, 12 Seasons, 14 SchedulesMetering

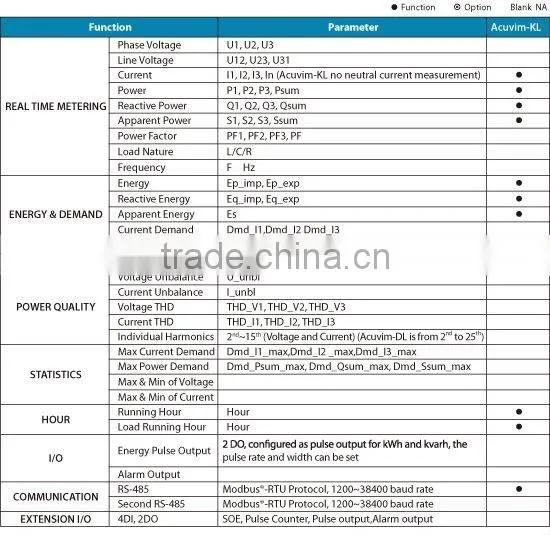

Metering

Voltage V1, V2, V3, V12, V23, V31
Current I1, I2, I3, In
Power P1, P2, P3, Psum
Reactive Power Q1, Q2, Q3, Qsum
Apparent Power S1, S2, S3, Ssum
Frequency F
Power Factor PF1, PF2, PF3, PF
Energy Ep_imp, Ep_exp
Reactive Energy Eq_imp, Eq_exp
Apparent Energy Es
Demand Dmd_I1, Dmd_I2, Dmd_I3, Dmd_P, Dmd_Q, Dmd_S

Monitoring

Power Quality
Voltage Harmonics 2nd to 15th and THD
Current Harmonics 2nd to 15th and THD
Voltage Unbalance Factor U_unbl
Current Unbalance Factor I_unbl
Max/Min Statistics
Meter Running Hour and Load Running Hour

Alarm

Two (2) parameter may be set within a specified time interval. If indicated parameter is over or under its setting limit and persists over the specified time interval, the event will be recorded with time stamps and trigger the alarm DO output. The indicated parameter can be selected from any of the 35 parameters available.

Pulse Output option
