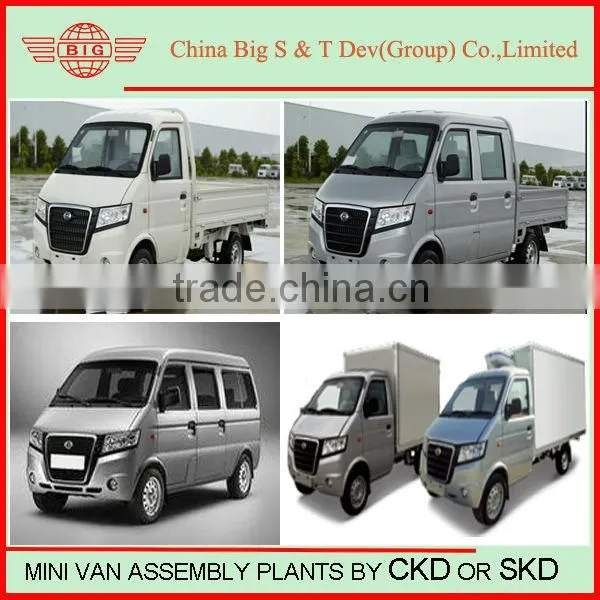

Help CenterMini Van Assembly Plants by CKD or SKD
Related Products
-
Manufacturers Looking for Agents or Distributors of Available Assembling Urban Buses for Sale in SKD and CKD KitsUS$ 400,000 - 1,000,000MOQ: 1 Set -
China Public Transportation Bus Assembly Production Line for SaleUS$ 500,000 - 1,000,000MOQ: 1 Set
-
Minibus SKD Parts Assembling Line for SaleUS$ 20,800 - 29,999MOQ: 1 Set
-
Build City Bus, Long Distance Bus and Other Vehicle Assembly Plant In Your CountryUS$ 22,600 - 39,999MOQ: 1 Unit
-
City Bus Long Distance Bus School Bus Plant ServiceUS$ 22,600 - 39,999MOQ: 1 Unit
Specifications
1.auto spare parts cheap & fine2.SKD, CKD manage
3.We provide cooperation and technical support
4.tariff a freight saving

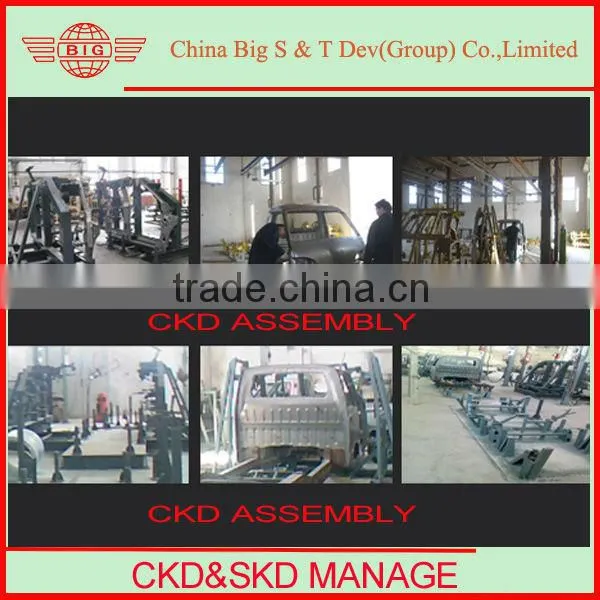

We are able to provide pickup spare parts in SKD term and CKD term, relative equipment and technology. Design a pickup assembly line.
What's the advantage of the project?
In win-win princple our goal is to help customer to set a mini van and mini truck assembly factory at oversea. So far we have sucessful project to set pickup and SUV assembly factory in Ghana and Syria.
| Bigst MINI VAN 6397Model SPECIFICATIONS | |||
| Model | Mini van | ||
| Dimension | Overall (mm) | 3970×1535×1930 | |
| Wheelbase (mm) | 2615 | ||
| Front/Rear Tread (mm) | 1295/1310 | ||
| Min. Turning Radius (m) | 5 | ||
| Approach/Departure angle(°) | 36/16 | ||
| Front/Rear suspension(mm) | 560/795 | ||
| Kerb mass(kg) | 1020 | ||
| Body structure | Unibody | ||
| Fuel tank capacity(L) | 40 | ||
| Number of doors | 5 | ||
| Min. Ground Clearance (mm) | 165 | ||
| Engine | Engine layout | middle | |
| Drive type | Rear wheel drive(4×2) | ||
| Top speed(km/h) | 120 | ||
| Engine type | GA465QED, LJ465QR1E1 |
||
| ECU | DelphiMT22U | ||
| Displacement(L) | 0.998 | ||
| Engine air intake mode | Naturally aspirated | ||
| Number of valves per cylinder | 2 | ||
| Cylinder arrangement form | Inlinefour-cylinder | ||
| Compression ratio | 9.5:1 | ||
| Valve structure | Single overhead camshaft | ||
| timing structure | chain | ||
| Rated horse power(PS) | 60 | ||
| Rated power(kw) | 44 | ||
| Rated rotate speed(r/min) | 5600 | ||
| Max.torque(Nm) | 85 | ||
| Max.rotate speed(r/min) | 3500-4000 | ||
| Fuel type | gasoline | ||
| Fuel grade | 93# | ||
| Emission standard | EuroⅢ | ||
| Oilsupply mode | MPI | ||
| Chassis | Transmission | MT | |
| Reverse number | 1 | ||
| Front suspension type | Macpherson Strut Independent Suspension | ||
| Rear axle speed ratio | 4.778 | ||
| Rim material | Steel | ||
| Wheel rim size | 14-inch | ||
| Tire | 165/70R14LT / 165/70R1481T | ||
| Spare tire | Full-size | ||
| SABS | |||
| Rear suspension type | longitudinal leaf spring independent suspension | ||
| Spring quantity | 4 | ||
| Brake system | Front Disc/Rear Drum | ||
| Steering system | Pinion and-rack | ||
| Seat belt | Front preload three-point seatbelts | ||
| Second row seat belts | |||
| Seatbelt warnnig | |||
| CHMSL | |||
| Standard items | Main colour | WhiteSilverChampagne Gold | |
| Window | Manual | ||
| Windscreen | Normal | ||
| Back door Glass | Tempered glass | ||
| Front door glass | Tempered glass | ||
| Middle door glass | Tempered glass | ||
| Side window glass | Tempered glass | ||
| Interior | 5-door and body flat-panel interior | ||
| Front door threshold rubber | |||
| Middle door threshold rubber | |||
| Roof interior | Air conditioning hole | ||
| Handrail | deputy driver's seat only | ||
| Sunvisor | Sunvisor assembly(L) | ||
| Dashboard | Leather | ||
| Center console | Matt black | ||
| Air outlet | Shutter | ||
| Steering wheel | Three-spoke | ||
| Carpet | Grey PVC | ||
| Seat row number | 3 | ||
| Seats number | 4~8 | ||
| Main/deputy driver's seat | Adjustable cloth seat with pillow | ||
| Middle row seat(2-seater) | Adjustable cloth seat withpillow | ||
| Backrowseat(3-seater) | Adjustable cloth seat with pillow,the chairback can flit forward | ||
| Combination of instruments | Stepper motor pointer+LCD | ||
| Sound system | Rodio+MP3 | ||
| grille | Chrome-plated frame black grille | ||
| Front and rear bumpers | Black | ||
| Rear license Board cover | Chrome-plated | ||
| Manual rear view mirror | |||
| Front wiper | |||
| Back door gas spring rod | |||
| Front diamond crystal lights | |||
| Rear combination lights | |||
| Rear top lamps | |||
| High-fidelity loudhailer | |||
| Front and rear fender | |||
| Fire extinguisher | |||
1. Our company is focusing on the the vehicle assembling project throughout the world, so far, we have successfully set up several such auto assembling plants in Syria, Ghana, Seychelles, Vanuatu for pickup, SUV, bus, moke assembling. We have the ability to provide the whole spare parts in SKD term and CKD term. Anyone who is interested, contact us freely, looking forward to your cooperation.
2. Our main products :
1) Pickup (Single & Double Cabin; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);
2) SUV (off-road vehicle: 5 / 7 seats; Gasoline & Diesel Engine; 4x2 & 4x4 drive; LHD & RHD);
3) Van (7-8 seats, 9-15 seats, Gasoline & Diesel Engine; 4x2 drive; LHD & RHD);
4) Mini Moke (Gasoline & Electric, 4x2 drive, LHD & RHD);
5) Bus (Mini Bus, City Bus, and Long-Distance Bus)
6) Providing the assembling equipments of the above mentioned automobiles (pickup, SUV, Van, Moke and Bus).
Note: Invest one a set of welding joint fixture may complete under three model( Shared same Chassis Platform) :single cabin,two cabin mini track and mini van.
If you interest in assemble the mini van assembly plants, the project budget and invest requirements is follow term: if you like know more message, please you inform us.
