Help CenterSelective Wave Soldering Machin MF302/Mini Wave Soldering Machine
Related Products
-
Selective Wave Soldering Machin MF301/Selective Soldering SystemNegotiableMOQ: 1 Set -
Selective Wave Soldering Machin MF301/Reliable Alternative to Manual Lead-Free SolderingNegotiableMOQ: 1 Set
-
\MF302 Selective Wave Soldering Machine/Jet SolderingNegotiableMOQ: 1 Set
-
Wave Soldering Machine LF250/Integrated Cooling Zone for Rapid Cooling of Soldered Boards.NegotiableMOQ: 1 Set
-
Small Wave Soldering Machine LF250/Middle Wave Soldering MachineNegotiableMOQ: 1 Set

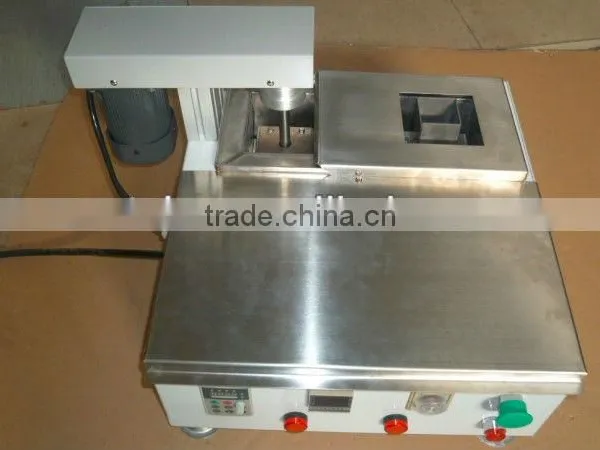

Selective Wave Soldering machine, it is a multi-purpose machine. It can be used for single-point soldering, removal of ICs and parts; changeable nozzles with special tools are suitable for all kinds of PCBs.
Features
1 Auto dipping solder tin design, this can do part soldering and PCB after welding process;
2 Position accurately, dip solder tin uniform, automatic operating is more easy and high efficiency.
3 With changeable nozzle of any sizes; all kinds of PCBs will be soldered by replacing nozzles;
4 Step-less adjustment, stable wave crest will reduce empty solder, edge solder and other phenomenon;
5 Point-point solder, little power consumption;
6 This machine is compact and versatile. It is easy to be transported and space saving.
7 Titanium Solder tank nozzles, solder pumping mechanism are made from special steel alloy material (SUS316), No corrosion and no bursting apart problem in lead free soldering. Minimum solder dross.
8 Machine will be shipped with 3 different sizes nozzle as per customer specs.
9 Preset timer every day (option);
10 N2 protection system to prevent solder pad and lead oxidation (option);
11 Infrared center position support system, it can ensure solder or take components more precision (option);
Specification
Power Source |
AC 220V 50/60HZ 1PH |
Heater power |
Outside heater, 1.2kw |
Temperature range |
Room temperature--300°C |
The height of wave crest |
Adjustable |
Soldering time |
1 ~12S adjustable |
Preheat time |
About 30 min |
PCB size |
600*380mm |
Solder pot |
Titanium Solder tank |
Timer |
Auto timer on/off in one week |
Controller |
PID mode, SSR driven |
Safe protection |
Short circuit protection, alarm with over-temperature |
Nozzle material |
Titanium alloy |
Solder capacity |
30kg |
Machine weight |
50kg |
Machine dimension |
70*45*40cm |
Nozzle size |
80*8mm, 80*10mm, 100*15mm,150*10mm, 180*10mm,200*23mm, 330×23mm or made by customers |
