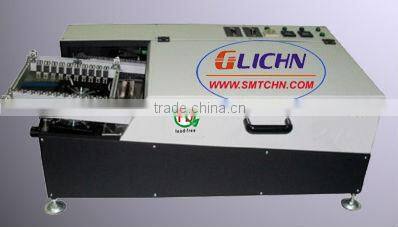

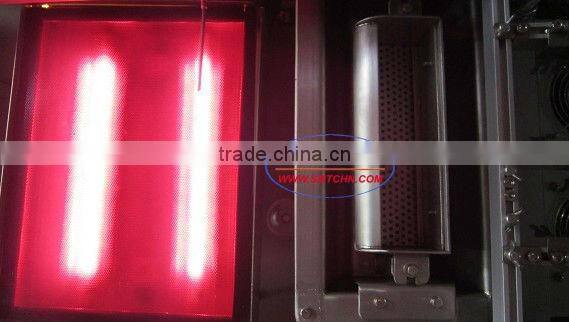

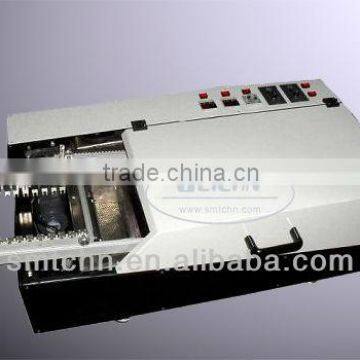

Table wave soldering machine, low capacity titanium solder pot of 85kg, high performance shot light preheat and reliable foam flux.
Features
1 Easy operation and control;

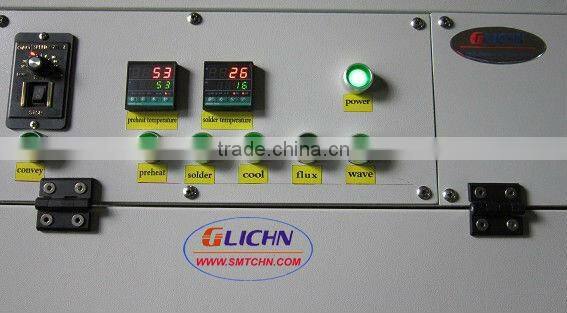

2 Solder temperature and time are digital display on the controlling panel;
3 High temperature heat elements are in the machine to ensure wave solder stable performance and best reliability.
4 Wave solder machines with bench top and lead free are widely application. The unit has replaced iron and dip solder furnace to do soldering in small-middle batch production.
Specification
Model |
Bench top lead free wave LF230 |
Max power consumption |
3Kw |
Solder pot capacity |
85Kg |
PCB Size |
200 * 260 mm (It can be made by order) |
Solder temperature range |
Room~300°C adjustable |
Preheat Temperature range |
90~130 °C |
Wave height adjust range |
5~ 12mm |
Melt time |
60min |
Flux spray |
Foam spray |
Power supply |
AC 220V 50HZ |

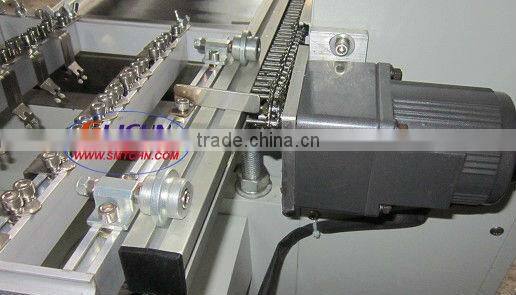

Conveyor speed |
0.5~ 2 m /min |
Dimension |
900 * 668* 580mm |
Weight |
Approx 110kg |
Packing |
Exemption wooden packing |
Packing size |
L110* W800 * H700mm |
