Specifications
GPRS modem terminal1.ON/OFF switch
2. rs232/rs485/TTL
3.remote control through gprs
4.Plug and play
1 Overview

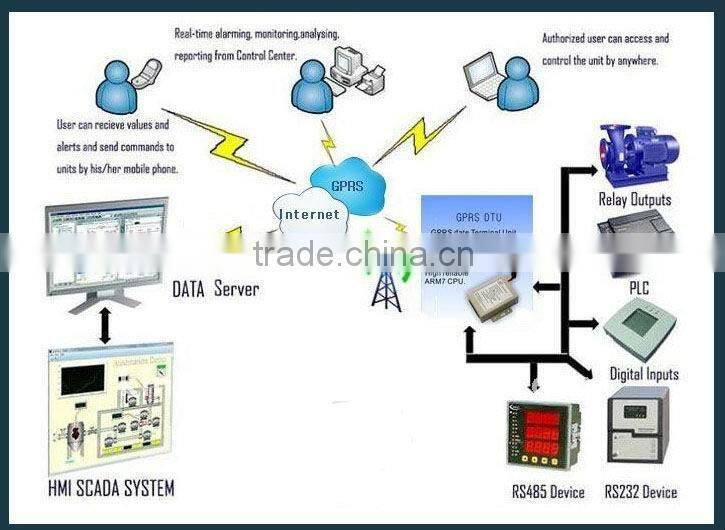

Based on the public net, KB3050 GPRS DTU transmit widely, stably and reliably, KB3050 GPRS DTU is widely used in unattended operation device, Remote AMR, remote data acquisition, remote scheduling and so on. Due to this product is designed for industry integrated, we adopt special designs in the temperature scope, shaking, EMC and interface multiform and so on
2Plug and play (new solution)

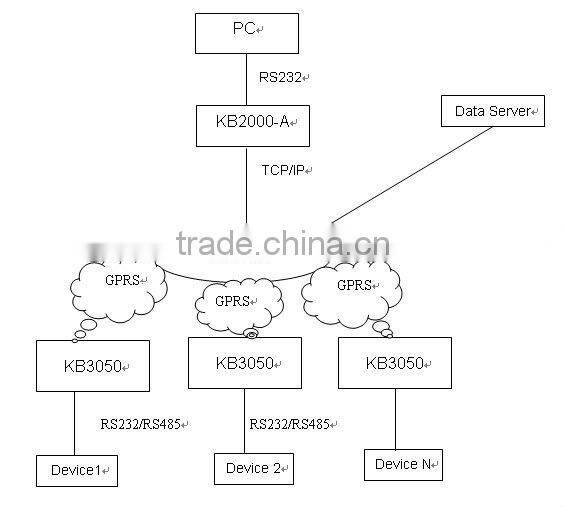

KB2000 and KB3050

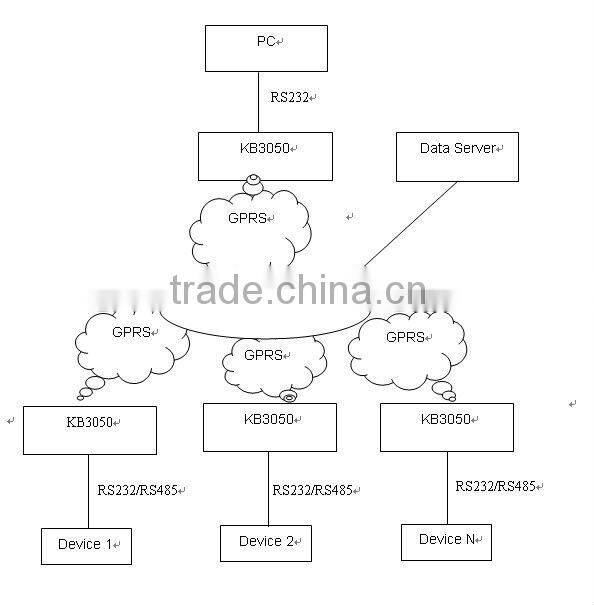

KB3050 and KB3050

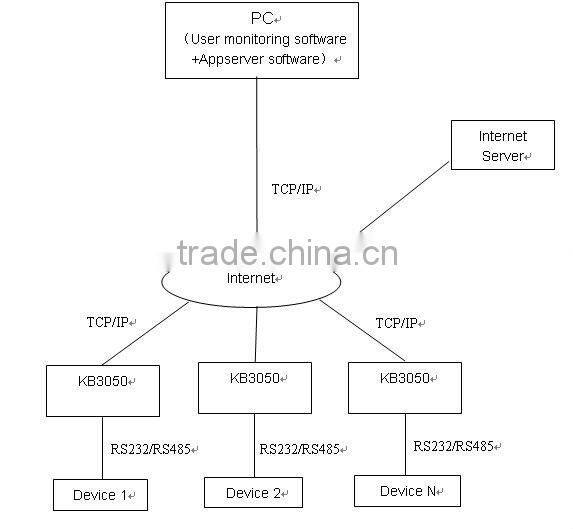

Appserver software work with KB3050
4:product feature
| Build-in procotol | Support TCP,UDP Network protocol and Data channel backup. | |
| Built-in Chinese or English configuration tool | ||
| DDP, protocol, ensuring the data channel reliability | ||
| Kingbird Data Center software (Server) support | ||
| Kingbird Appserver software support | ||
| Communication |
Frequency: 850/900/1800/1900MHz, can be suit for every country all over the world (Including North Amercia and South America) |
|
|
Self-Research network platform supply with “Plug and Play” solution: Work with KB2000 and K3020. No need software and hardware development, can realize commincatioin Change COM to COM to GPRS remote data transmition |
||
|
Advanced and strict data communication protocol, with the function of correction and encryption. Never lose package when data transmission |
||
|
IO switching value function: Two channels input, two channels IO output. Remote control and reading. Alarm status threshold, automatic alarm |
||
| Strong server software support, application for many years, strong function. | ||
| Supply DTU work status interface, user can estimate DTU’s work status anytime; | ||
| Strong communication backup function: Support switchover automatic between main server and backup server; | ||
| Support special APN, data center support fixed IP and DDNS. | ||
| Support | ||
| Always online: automatic online, automatic redial and keep-alive while the line dropped. | ||
| Self-define re-connecting interval and online report interval | ||
| Supports peer to peer, center to multi-point, multi-point to multi-point data transmission | ||
| Industrial design | Independent research and developing, embedded 32 bit ARM7-CPU with real-time operating system. | |
| Standard industrial products, EMC anti-jamming design, strong adaptiveness | ||
| Bare borad and small size, low cost, easy to be embedded integration | ||
| Industrial class design and components to meet harsh environmental requirements | ||
| Working temperature range: -40°C-80°C, communication is not effected at -40°C | ||
| Operation | Remote sleep and awake: User can use appointed cell phone number to dial can sleep or awake DTU, it is convenient for user to save a lot of GPRS Flow Fee when no need to use DTU | |
| Remote modify DTU parameters by network | ||
| Adjustable Heartbeat interval | ||
| Flexible data link modes for varied applications | ||
| Support hardware and software Watch Dog Timer | ||
5 Specifications
| GPRS DATA | GPRS Module: M10 | |
| Supports GSM/GPRS | ||
| Supports GSM850MHz/EGSM900MHz/ | ||
| interface | Antenna: 50Ω/SMA-K | |
| SIM: standard user card interface | ||
| Serial data interface | ||
| • Type: TTL(5V), CMOS(3.3V); | ||
| • Baud rate: Standard products 300~115200bps | ||
| • Connector:3.5mm pluggable terminal block | ||
| • Configuration interface: RS-232 Standard-115200bps | ||
| Power | Work Voltage: GPRS Module: 3.4VDC~4.5VDC; 3.4V~4.5V DC; MCU: 2.0VDC~3.6VDC | |
| Power Standby: < 30mA@5V | ||
| Power Communicating: < 200mA@5V | ||
| Power Launched peak: 1.5A@5V | ||
| Other | Mechanical: 54×36×6.8mm (not including ) | |
| Weight: 20g | ||
| Operation temperature: -40°C~+80°C | ||
|
Relative humidity: 20%~95% non-condensing
|
||
