Electric Moke Mini Moke Spare Parts From China

Electric Moke Mini Moke Spare Parts From China thumbnail-1
Electric Moke Mini Moke Spare Parts From China photo-1
US$ 9,699 - 9,999 MOQ: 100 Units
Key Specifications
Get Latest Price
Fuel:
Electric
Power:
> 1000W
Voltage:
48V
Contact Supplier Request Quote Chat Now
Chongqing Big Science & Technology Development Co., Ltd.
Gold Verified Supplier
6Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Electric
Voltage 48V
Transmission System Shaft Drive
Certification Other
Brand Name BIGMT
Place of Origin Chongqing, China
Model Number Jeep



Product Description

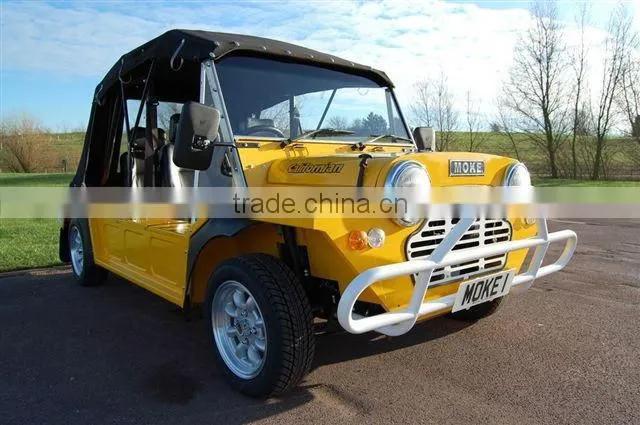

 Electric moke mini moke spare parts from ChinaElectric moke mini moke spare parts from China

Electric devices Motor: 7.5kw,High-efficiency separately-excited winding motor
Battery: 6*12V, 210A/H, traction battery with big capacity and deep circulation.
Charger: Fully-automatic high-frequency pulse charger, input voltage AC 220V, 50Hz; output current 72V, 30A.
600A  INBOL controller
Accelerator: induction accelerator 0-12V
DC Module:72V-12V Direct current converter
Solar battery and charger  Solar battery and charger
Chassis Frame type, high strength steel structure, both anti-rust treatments of electrophoretic paint and powder spraying
Cover panel  1. Steel boday; streamlined design; 2.Steel frame headlining with imported canvas
Brake system Disc brakes (F), drume brakes (R ), plus vacuum booster pump
Front suspension system Two A arms, spring + damper type (or MacPherson front suspension)
Rear suspension system Towed semi-independent suspension
Steering system rack-and-pinion steering and EPS system
Lighting system Headlamp lamp assembly (headlamp, turn signal lamp), Tail lamp assembly (brake lamp, turn signal lamp, everlasting lamp)
Seats 1.Confirming to Human-Machine Engineering Principle, confortable seats; 2. Leather surface, waterproof, impermeable, corrosion resistance, resistance of yellowing, easy to clean;
Tire 165/70  R14  Mini cars' tire
2.  Main technical data
Net Weight    ≤ Car 500KG + batteries 250KG = 750KG
L * W * H 3110mm *1520mm *1600mm                                                                     Adding front and rear bumpers:3140mm *1520mm *1600mm
Wheel base 2200 mm
Front wheel track  1250mm
Rear wheel track 1270mm
Min. turning radius 2.5m
Load capacity 350kg
Full charge endurance 150KM
Min. ground clearance          200mm
Brake distance    ≤4m (60km/h)
Climbing capacity ≤28%
Max. noise ≤ 50dB
Max forward speed Client have two select:  60 km/h ; 80 km/h
Max. backward speed 8-10km/h
Driving gear 4 + 1 or 5 + 1
Body/headlining color  Black / Green / Camouflage hide-and-seek
Seats 4

Company Information

   We are an auto manufacturer from China. We are searching for local cooperation partners for assembling pickups, SUV, buses, saloon cars, vans, trucks. Our favorable cooperation models include turnkey project model, joint venture and agreement cooperation. If you wish to know more about our oversea chain automobile manufacture factory projects, we’d like to deliver relevant information to you and explain all the aspects in detail. Our chain auto Assembly plant projects include mini cars, mini trucks, pickups, SUV, mini Moke jeeps, CNG buses Series (airport bus, New energy bus,CNG buses, electric power bus, CNG buses, and buses of electric power Hybrid bus)..... We have established a lot of chain auto assembling factories in many developing countries, like Syria, Egypt, Ghana, Nigeria, Angola, Bangladesh and Latin America etc. Our cooperation principle is to achieve a win win situation.



Our Services



Why is it profitable to cooperate with us to assemble vehicles?

1. Import tariff between auto spare parts in CKD (completely knocked down) mode and CBU (complete built unit) mode would normally be at least 30-35%, which would be totally translated to profit.

2. Auto industry in China has been booming in the last decade, which means auto technologies in China have improved greatly that they are competitive in the market.

3. Components and parts from China are much cheaper than western counterparts while maintain relatively high quality.

4. It's a lot easier to carry out after-sale service when you have a local plant due to the easy access to spare parts and engineers, which is almost impossible for totally imported vehicles.



Successful stories

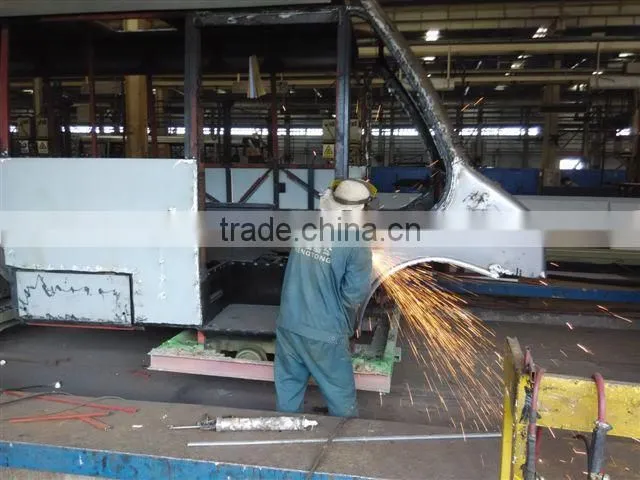

1. Bus assembly plant in Syria

2.  Joint Venture plant in Ghana

3. Bus assembly plant in Mozambique





Assembling vehicles is not a samll project which requires funds  and other related  resources, so we'd like to lay out all the basic requirements to anyone who is interested in our proposal.



Our requirements for automobile assembling projects:



1, Funds: Investment capacity shall be over one million USD.


2, Workshop and lands: at least 5000 square meter's workshop, and over 15000-20000 square meter's land.


3, Market channel: have car-sale channels (sales network) or car garage for remanufacturing second-hand cars, or any other car related businesses.


4, Import tariff policy: Import tariff policy in your country should be supportive, gap of import tariff between auto spare parts in CKD (completely knocked down) mode and CBU (complete built unit) mode shall be at least 30-35%;



Note: those requirements are not necessarily the deal breaker or deal maker. If you are really interested in our proposal, just contact us, we'll figure out more details.



Supports we can provide:



We'll provide free technical supports through the whole process.



1. Pre-stage: We will come up with the most vital scheme for KD projects according to the scale of funds and lands you could channel, the model(s) of vehicles you choose, the marketing situation in your region and other resources;



2. First stage: You will be visiting us to have a face-to-face meeting to have all the details straightened out. You'll be getting familiar with our products and technologies. All the parties involved in the project will confirm all the details mentioned in the business plan.





3. Mid stage: We will send engineers to have an all-round guidance in your workshop and production line, and train your technicians till they can produce cars independently, and prvide the whole set of KD technical documents. We will also require your workers to take training in our factories until they are all well done;



4. Last stage: We'll send after-sales team to your company to provide all-round after-sales service, including claims, quality improvement, technical guidance, if needed, we can also help you improve the after-sales system;



We'll also provide free business support before and after the project.

1. Equipment investment support

2. CBU sample for free support

3. KD price discount support

4. Sole agency support

5. Perfect after-sales system

6. Other supports you need



If you are interested in our proposal, feel free to contact us. We'll be preparing a questionnaire for you to fill out all the information we need to come up with a specific business plan.
