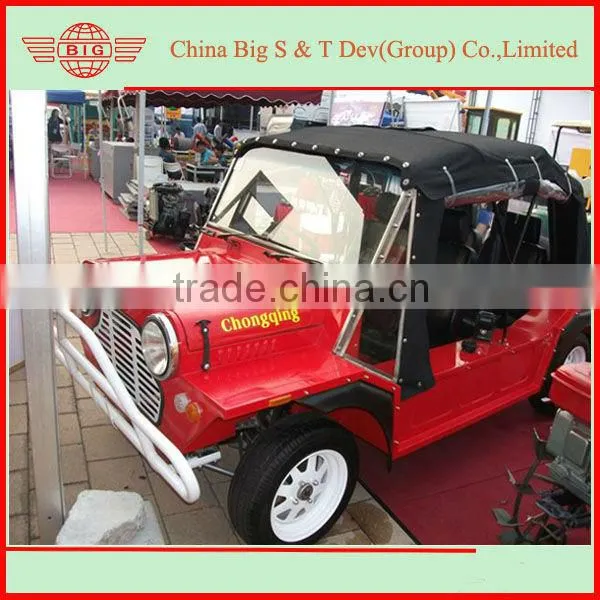

Help CenterElectric Power Mini Moke Car
US$ 9,699 - 9,999
MOQ: 100 Units
Key Specifications
Get Latest Price
Fuel:
Electric
Power:
> 1000W
Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Right Hand Driving Gasoline Classic Mini MokeUS$ 8,299 - 8,999MOQ: 4 Units -
Right Hand Drive Convertible Petrol Mini Moke Mini Jeep for SaleUS$ 8,299 - 8,999MOQ: 4 Units
-
Chinese Manufacturer Seeks Coorperation To Set Up Moke Car Assembly LineNegotiableMOQ: 1 Unit
-
An Efficient Way to Manufacture Mini Moke With Car Assembly Line SystemNegotiableMOQ: 1 Unit
-
Sand Beach BuggyUS$ 8,000 - 12,000MOQ: 4 Units
Fuel
Electric
Voltage
48V
Transmission System
Shaft Drive
Certification
Other
Brand Name
BIGMT
Place of Origin
Chongqing, China
Model Number
Jeep
Specifications
72V ac system,6wk or 7 kw: High-efficiency separately-excited winding motor;top speed to 55-60 km/h,the maximum mileage of 120km
| |||||||||||
|
| |||||||||||
| Electric power Mini Moke main configuration | |||||||||||
| Electric devices | 48 V ac system, 5 KW: High-efficiency separately-excited winding motor; top speed to 55-60 km/h, maximum mileage 65-70 km | ||||||||||
| 72 V ac system, 6wk or 7 kw: High-efficiency separately-excited winding motor;top speed to 55-60 km/h, the maximum mileage of 120 KM (this configuration cost is better high above term ) | |||||||||||
| Battery: 6*12V, 210A/H, traction battery with big capacity and deep circulation. | |||||||||||
| Charger: Fully-automatic high-frequency pulse charger, input voltage AC 220V, 50Hz; output current 72V, 30A. | |||||||||||
| 600A INBOL controller | |||||||||||
| Accelerator: induction accelerator 0-12V | |||||||||||
| DC Module:72V-12V Direct current converter | |||||||||||
| Solar battery and charger | Solar battery and charger | ||||||||||
| Chassis | Frame type, high strength steel structure, both anti-rust treatments of electrophoretic paint and powder spraying | ||||||||||
| Cover panel | 1. Steel boday; streamlined design; 2.Steel frame headlining with imported canvas | ||||||||||
| Brake system | Disc brakes (F), drume brakes (R ), plus vacuum booster pump | ||||||||||
| Front suspension system | Two A arms, spring + damper type (or MacPherson front suspension) | ||||||||||
| Rear suspension system | Towed semi-independent suspension | ||||||||||
| Steering system | rack-and-pinion steering and EPS system | ||||||||||
| Lighting system | Headlamp lamp assembly (headlamp, turn signal lamp), Tail lamp assembly (brake lamp, turn signal lamp, everlasting lamp) | ||||||||||
| Seats | 1.Confirming to Human-Machine Engineering Principle, confortable seats; 2. Leather surface, waterproof, impermeable, corrosion resistance, resistance of yellowing, easy to clean; | ||||||||||
| Tire | 165/70 R14 Mini cars' tire | ||||||||||
| 2. Main technical data | |||||||||||
| Net Weight | ≤ Car 500KG + batteries 250KG = 750KG | ||||||||||
| L * W * H | 3110mm *1520mm *1600mm Adding front and rear bumpers:3140mm *1520mm *1600mm | ||||||||||
| Wheel base | 2200 mm | ||||||||||
| Front wheel track | 1250mm | ||||||||||
| Rear wheel track | 1270mm | ||||||||||
| Min. turning radius | 2.5m | ||||||||||
| Load capacity | 350kg(including driver, passenger, and cargos) | ||||||||||
| Full charge endurance | (IF install High-power li-ion battery power) 150 km | ||||||||||
| Min. ground clearance | 200mm | ||||||||||
| Brake distance | ≤4m (60km/h) | ||||||||||
| Climbing capacity | ≤28% | ||||||||||
| Max. noise | ≤ 50dB | ||||||||||
| Max forward speed | Client have two select: 60 km/h ; 80 km/h | ||||||||||
| Max. backward speed | 8-10km/h | ||||||||||
| Driving gear | 4 + 1 or 5 + 1 | ||||||||||
| Body/headlining color | Black / Green / Camouflage hide-and-seek | ||||||||||
| Seats | 4 | ||||||||||
| Note: 1. The above parameters for reference only, and the specific technical indexes to factory state shall prevail. 2 this vehicle priority for ordering customers, satisfy customer individual requirements. Custom-made period for 45-60 days | |||||||||||
