belt driven centrifugal water pump food grade Sanitary centrifugal pump
USD $500 - $5,000
/ Piece
1 Piece(Min.Order)
- 10000 Piece / Pieces per Month
- Ningbo Port or Shanghai Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
MONO progressive block for prefabried concrete houses
-
MONO progressive block for concrete pump spare parts
-
MONO progressive block for ready mix concrete trucks
-
MONO progressive block for concrete statue molds
-
MONO progressive block for concrete columns mold
-
MONO progressive block for gearbox for concrete mixer
Product Details
| Place of Origin: | Shanghai, China | Brand Name: | ZH, ZH | Model Number: | BAW |
| Theory: | Centrifugal Pump | Structure: | Single-stage Pump | Usage: | Water |
| Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, electricity |
| Pressure: | Low Pressure | Application: | Other, milk,beverage etc. |
Product Description

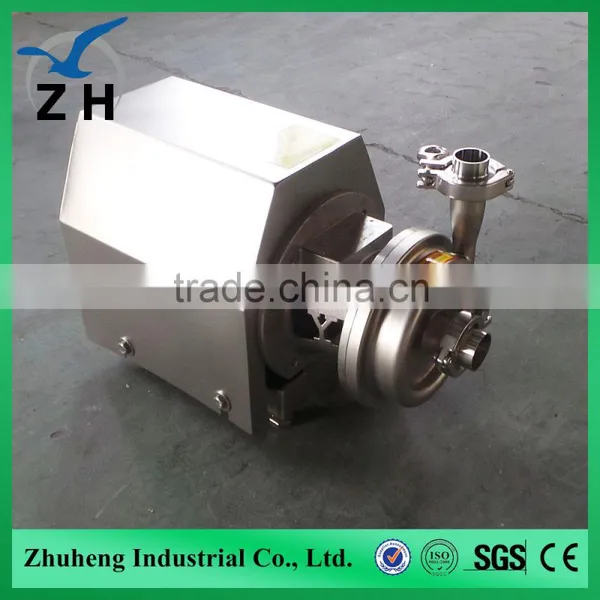

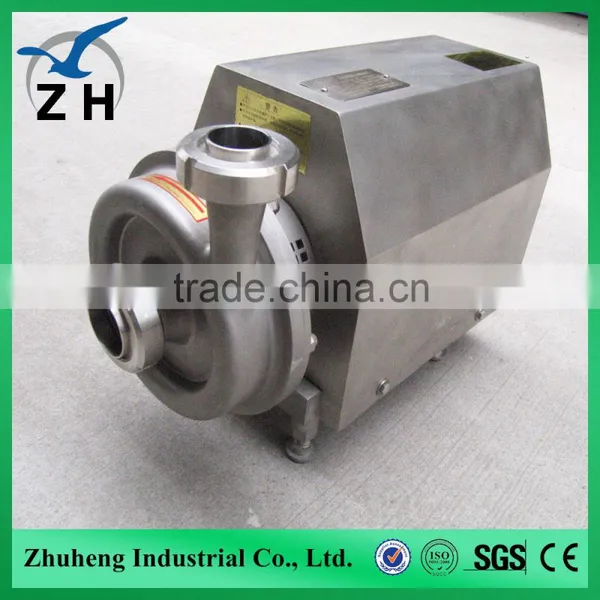

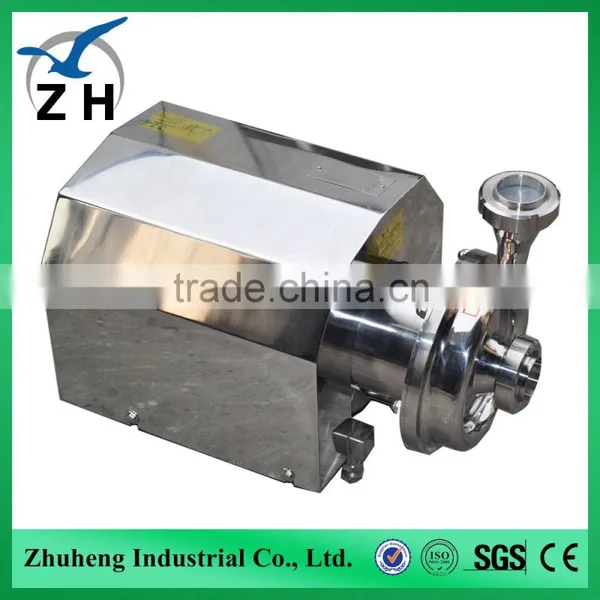

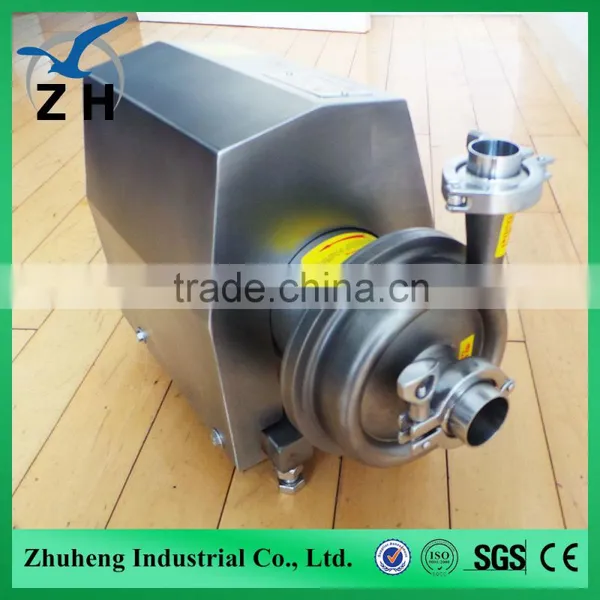

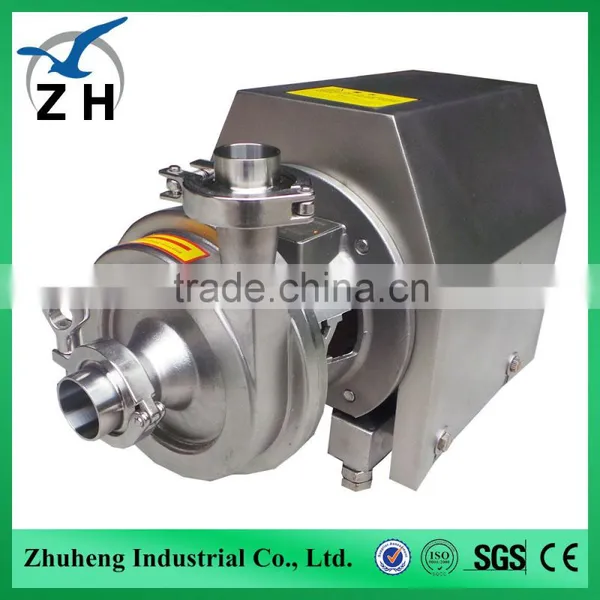

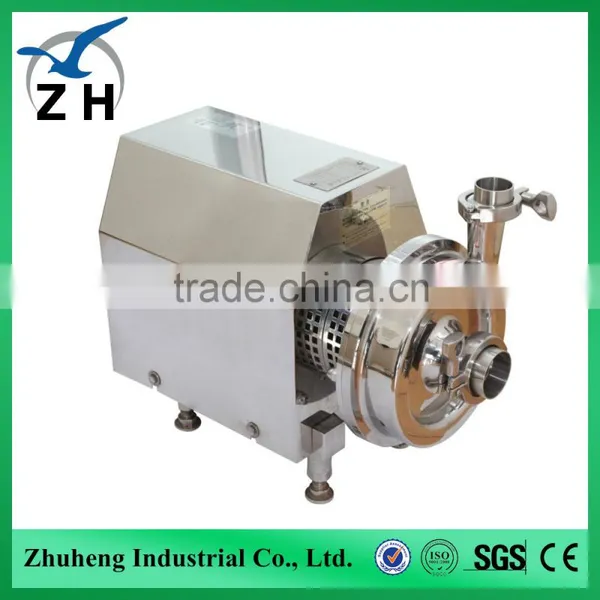

food grade Sanitary centrifugal pump belt driven centrifugal water pump
Brand: ZH
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.8um
Certification: CE ISO9001:2000
Product Display
Product Display
| Product Name: | food grade Sanitary centrifugal pump belt driven centrifugal water pump |
| Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
| Construction: | Horizontal BAW Series and vertical BAW series, impeller has open type and semi-open type |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) |
| Max. Flow: | 180m3/h |
| Max. working temperature: | 120 C / 248 F |
| Max. rev: | 1450 RPM |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …22KW,75kw |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 220V, 380V,415V |
| Motor: | ABB, LOCAL,50hz/ 60hz |
| Surface treatment: | Inner polished and Sandblast outside |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |
| Food Industry | Yogurt, Ice Cream, Cheese, Soft Drink, Fruit Jelly, Ketchup, Oil, Syrup, Chocolate etc. |
| Daily Chemicals | Facial Foam, Hair Gel, Hair Dyes, Toothpaste, Shampoo, Shoe Polish, Cosmestics etc. |
| Pharmacy | Nutrition Liquid, Chinese Traditional Patent Medicine, Medicine Grease, Biological Products etc. |
| Chemical Industry | Fat, Dissolvent, Resin, Paint, Pigment, Oil Agent etc. |
| Other Industry | Contruction Industry, Plastic Industry, Textile Industry, Coal Floatation Agent etc. |
Shipping method including: Courier (DHL, FEDEX etc), By Airline, By Sea
Price Term including: EXW, FCA, FOB, CIF etc.
Payment: L/C,T/T,D/P,D/A,PAYPAL,WESTERN UNION,MONEY GRAM etc.
Please contact our After-sales service department in time within 30days after you received the cargo. | |
Tel: 0086-021-54938956 Working Time: 9:00 a.m.- 6:00 p.m. (Beijing time) | |
Process | Please provide the copy of Sales Contract and describe the problems appeared. |
Problems confrimation: | |
Slight problem: | Please send the proof to our After-Sales Department, we will reply within two days. |
Serious problem: | |
a | We will dispatch our Quality and Problems Appraisers to make a confirmation. |
b | Have a negotiation of the compensation and sign agreements |
c | Our After-Sales Department will perform the duties as the agreements |

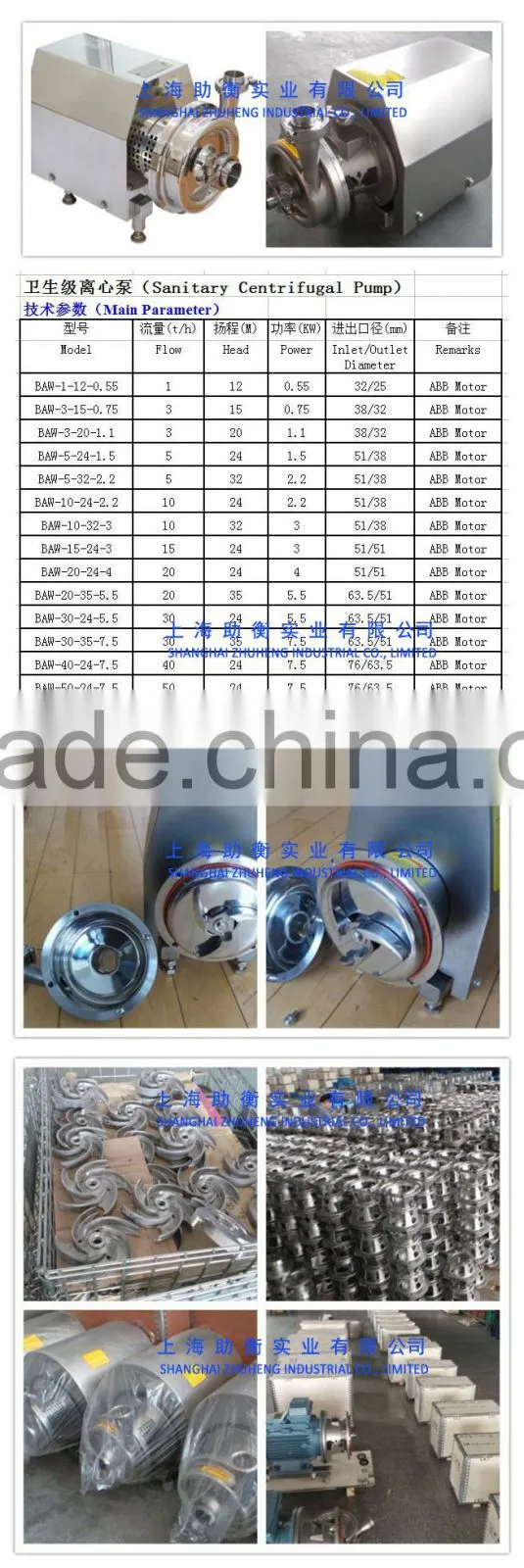

Product Detail Display
