Flexible LED Strip(30 SMD 5050 leds per meter nonwaterproof)
- Item Code : LED Strip-CM-5050W12V30NF
LED light strip with 150 3-chip 5050SMD LEDs. 5 meter (197 in) nonwaterproof flexible light strips, can be cut into 3-LED segments. 12VDC operation.
Characteristics:
5 meter (197 in)/Roll Soft and flexible, can be bent as will; Long service life: 50000 hours (5 years), no flickering, no RF interference, high lightness, high light transmission .
Application:

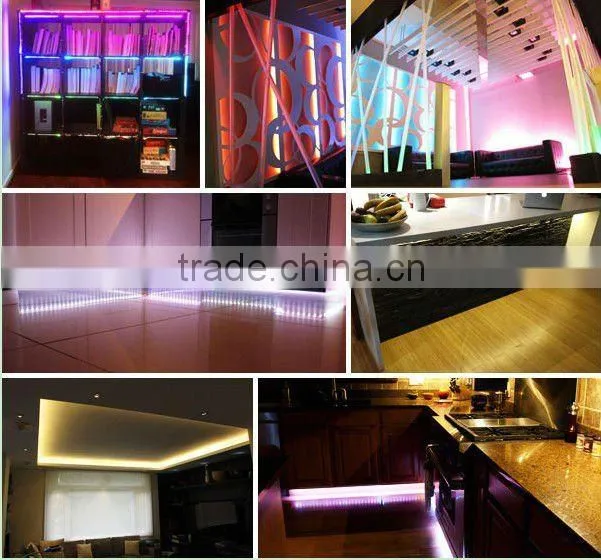

Widely used for architectural decorative lighting, amusement park, theater and aircraft cabin mood lighting, hallway and walkway lighting, stairway accent lighting, art lighting for signage letters, cove lighting, emergency exit path lighting, cabinet and under counter lighting, exhibition stands and panels, display cases, etc.

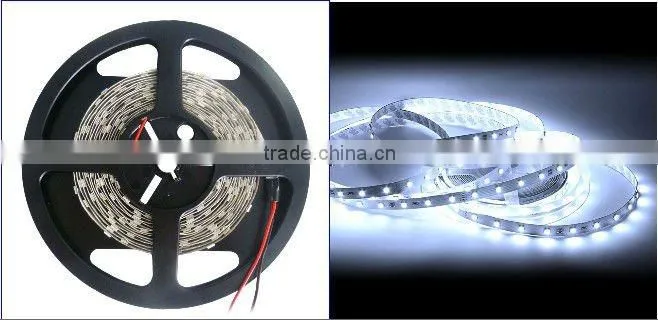

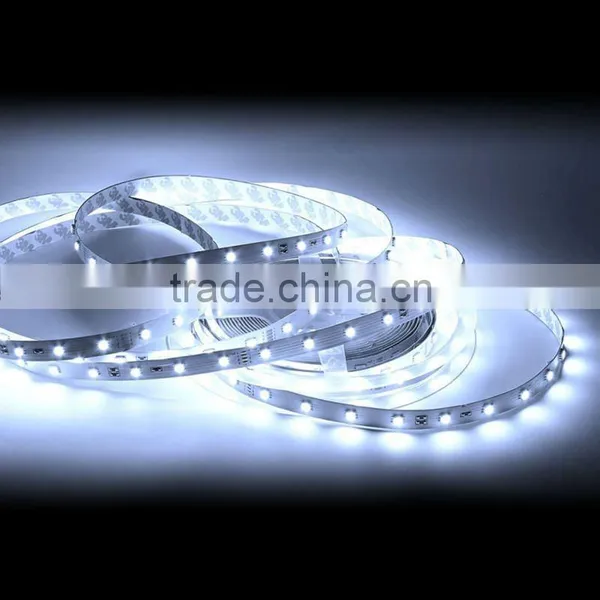

Product Photos:
Notes:

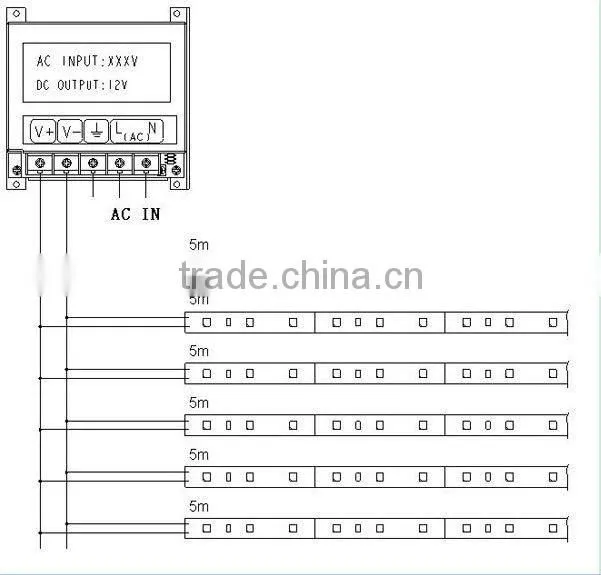

1. The thickness of the wires shall be adopted based on the possible current products power, length of the wire extention(5meter at maximum as recommended) and the loss in the wires transit at low voltage.
2. The both ends of extention shall be sealed with as waterproof.
3. Don't work under the situations of touching in static-electronics environments or light on.
4. The strip can be connected to 5m at maximum and no exceed.
5. Suggest choosing high-qualited switch power( have shortelectronics ,overvoltage and overloading protection function etc).
6. Acid silicone glue is forbidden.

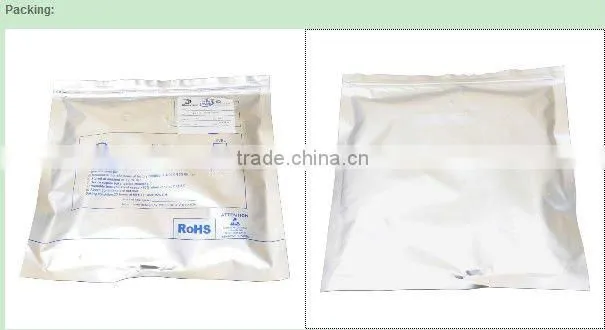

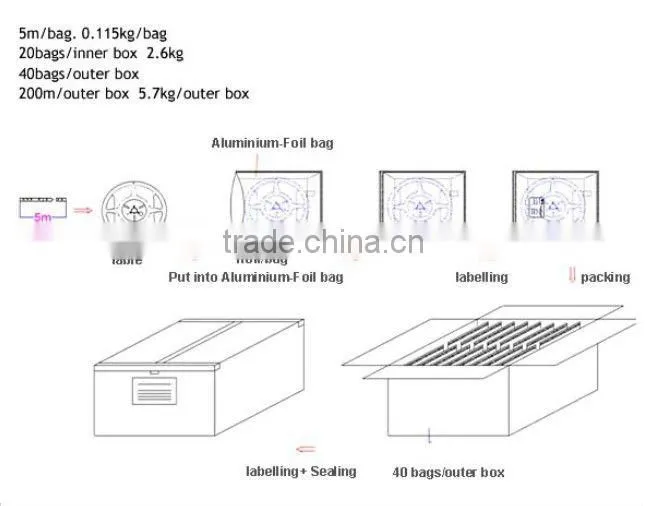

Packing:
Packing detail:
1. Bigger carton:45x25x25.6cm ; Small carton:23x21.6x22.6cm ; Aluminium-Foil bag:220x240x0.12mm.
2.150pcs LEDs per/5m,5m per reel,one reel in one aluminum -foil bag.
3.15 bags in one small carton . ( 75m in one small carton).
4. One bigger carton contains two small cartons . (150m in one bigger carton).
5. N.W: 4.9± 10%Kg/bigger carton.
6. G.W: 6.7± 15%Kg/bigger carton.
