SMD 5050 Waterproof LED Module (3 LEDs, White Light, 0.72W, L78 x W15mm)
US$ 0.32 - 0.32
MOQ: 20 Pieces
Key Specifications
Get Latest Price
Model Number:
LEDM-OFY-507815W
Chip Material:
Other
Emitting Color:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Guangzhou/Beijing
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Bright (1 LED, White Light, 1.2W,L42xW32xH19mm) for Double-sided LightboxSMD 5050 Waterproof LED ModuleUS$ 0.69 - 0.69MOQ: 10 Pieces -
SMD 5050 Waterproof LED Module (4 LEDs, 0.96W, L37 x W37 x H5.8mm) for Illuminate SignsNegotiableMOQ: 10 Pieces
-
60pcs SMD 3030 High Power Waterproof LED Module (1 LED, 1.2W, L35.5 x W40mm)with One 12V 10A DC Power SupplyNegotiableMOQ: 60 Pieces
-
Waterproof RGB Color Changing LED Strip Light Kit 16.4ft, LED Light StripUS$ 22.64 - 32.64MOQ: 1 Piece
-
Waterproof RGB Color Changing LED Strip Light Kit 16.4ft, LED Light StripUS$ 22.64 - 32.64MOQ: 1 Piece
Model Number
LEDM-OFY-507815W
Chip Material
Other
Emitting Color
Other
Luminous Flux(lm)
40
Operating Temperature(℃)
-40, 60
Storage Temperature(℃)
-30, 60
Place of Origin
Beijing, China
Brand Name
SIC
Certification
CE, CE
• 12VDC operation.
• This waterproof LED module strings.
• 3-7/8 inch wires between each modules.
• Each module has 3 wide viewing angle 120 degree high power 5050SMD LEDs.

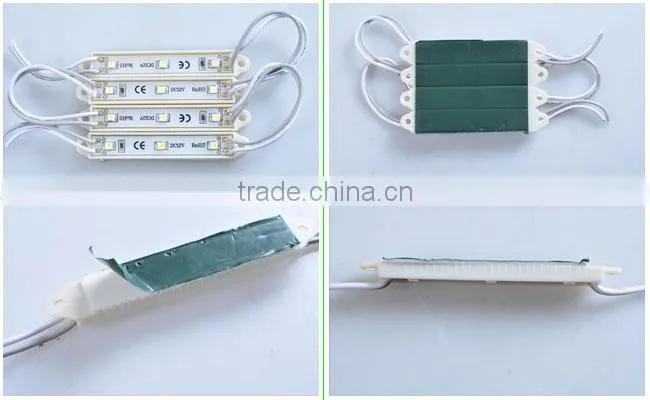

• Injection molding ABS shell has 2 mounting screw hole and included double sided adhesive foam tape.
• Injection molding ABS shell has 2 mounting screw hole and included double sided adhesive foam tape.
Three Space Dimensions:
Basic parameters | ||||||
| Color | Natural white, cool white |
LED type | 5050 smd | |||
| LED Qty | 3 pcs |
Dimension | 3.1" x 0.6" x 0.2" (75 x 15 x 5mm) | |||
| Module interface | 2 x 4.0" (2 x 70mm) RVleads | Interface definition | Gray anode, white cathode | |||
| Cluster Qty | 20pcs | Module space between | 70mm | |||
| Weight | 0.4oz (12g)±5% | Lifespan | MTBF>50,000hours | |||
| Environment parameters | ||||||
| Working temperature | -40°C∼60°C | |||||
| Defend grade | IP65 competely satisfies the outdoorlighting standard | |||||
| Electronic specifications | ||||||
| Working input voltage | D12V±5% | Max power | 0.73W | |||
| Driving mode | Invariable voltage! (Insure every LED working under the invariable voltage) | |||||
| Lighting capability | ||||||
| Luminous flux | 40 lm | |||||
| Beam angle | 120° |
|||||
Comparison:
About luminouse efficiency, comppare with SMD3528,SMD5050 and SMD2835. The SMD3528 is low, SMD5050 in the middle and the SMD2835 is high. But for the price, SMD2835 in the middle, SMD3528 is low and the SMD5050 is high.

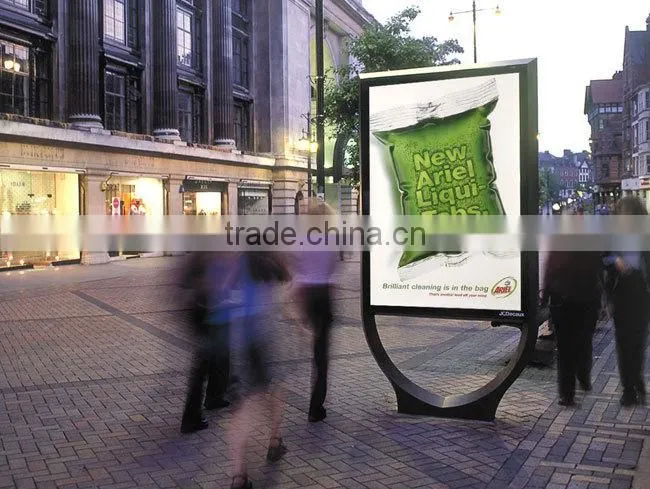

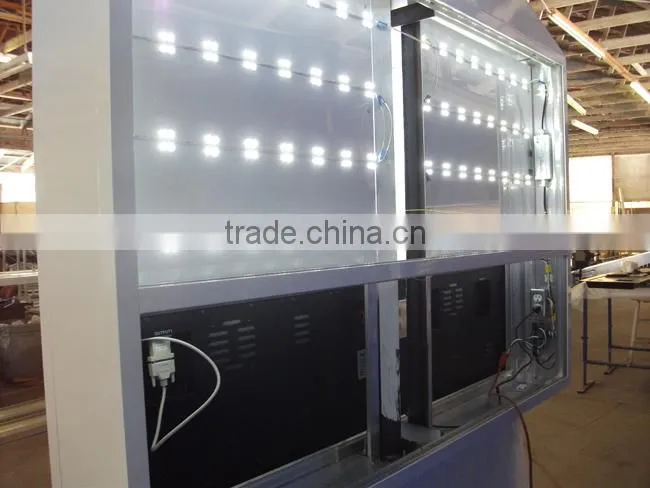

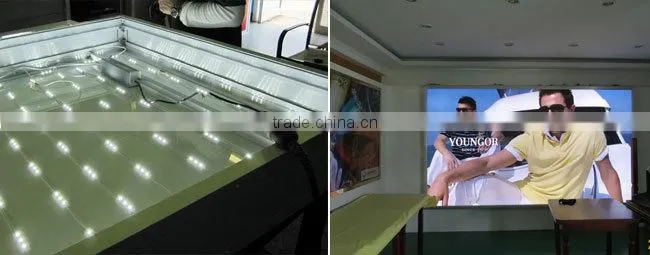

1. led module used for light box making:
2. LED module used for Sign Cabinets:

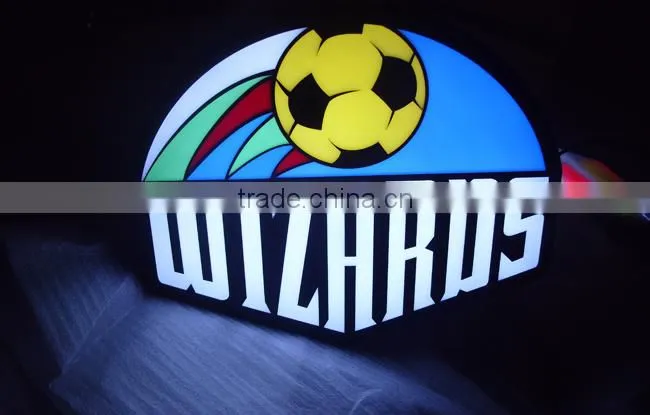

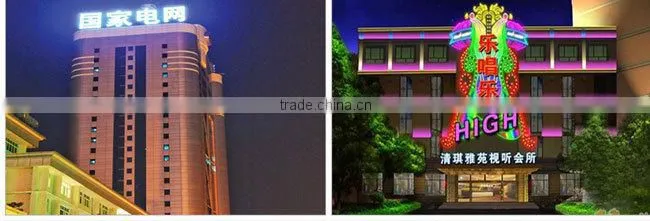

3. LED module used for signage making:

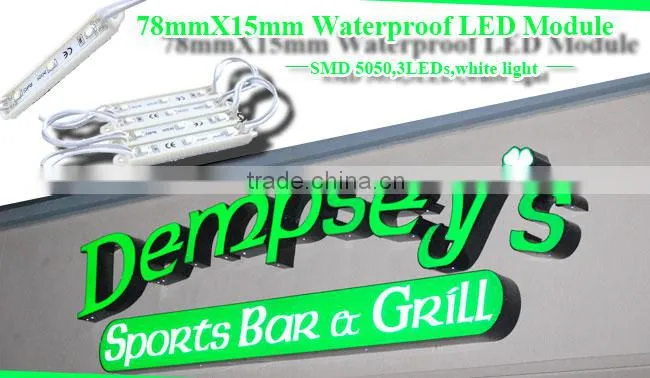

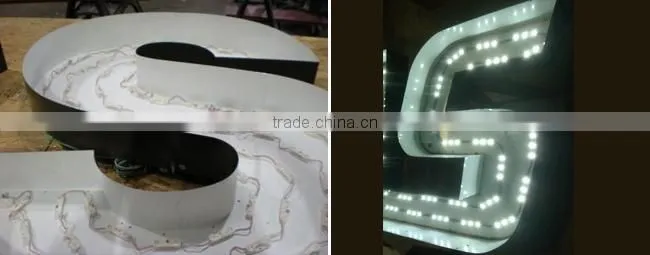

4. LED module used for channel leter:
