Home > Lights & Lighting > LED Encapsulation Series > LED Module > 78mm x 15mm Waterproof LED Module(SMD 5050,3LEDs,white Light)

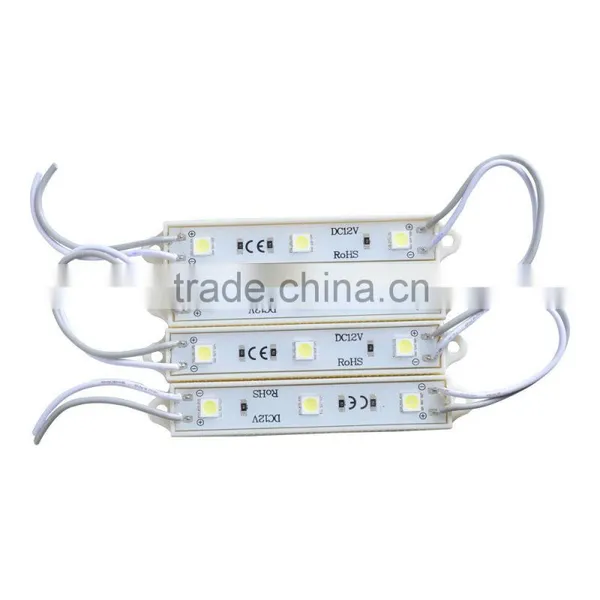

78mm x 15mm Waterproof LED Module(SMD 5050,3LEDs,white Light)
Negotiable
MOQ: 1 Pack (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Model Number:
LEDM-OFY-507815W
Place of Origin:
China
Brand Name:
SIC
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin/Shanghai/Guangzhou
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
USB PC Input Message Desktop LED Fan(random Color)NegotiableMOQ: 10 Pieces -
Table LED Scrolling B1664BNegotiableMOQ: 1 Piece
-
35mm*35mm Led Module 5050NegotiableMOQ: 100 Pieces
-
35mm*35mm 5050 Waterproof High Power Led ModuleNegotiableMOQ: 100 Pieces
-
35mm*35mm 5050 Waterproof Led Display ModuleNegotiableMOQ: 100 Pieces
Model Number
LEDM-OFY-507815W
Place of Origin
China
Brand Name
SIC
• 12VDC operation.
• This waterproof LED module strings.
• 3-7/8 inch wires between each modules.
• Each module has 3 wide viewing angle 120 degree high power 5050SMD LEDs.
• Injection molding ABS shell has 2 mounting screw hole and included double sided adhesive foam tape.
• Injection molding ABS shell has 2 mounting screw hole and included double sided adhesive foam tape.
Details:
Usages:
Usages:

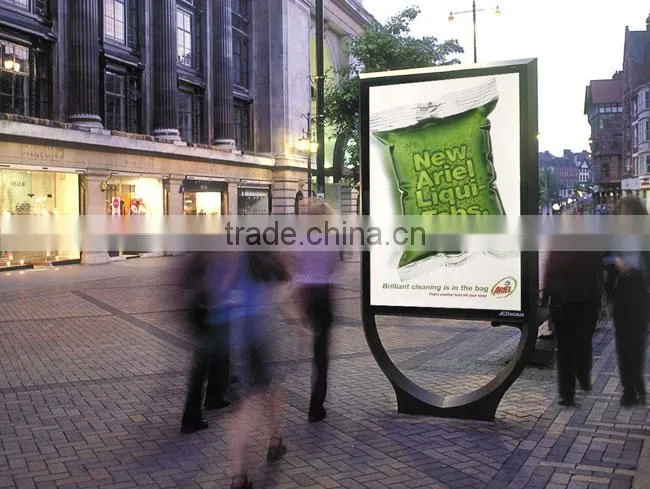

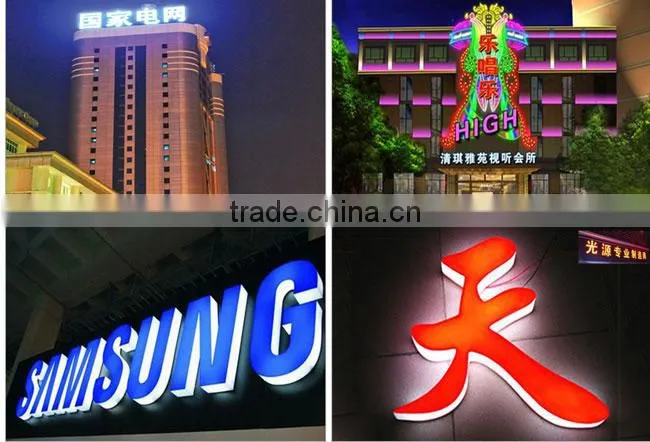

Application:
Process:
Quality Report:
Basic parameters | ||||||
| Color | natural white,cold white |
LED type | 5050 SMD | |||
| LED Qty | 3 pcs |
Dimension | 3.1" x 0.6" x 0.2" (75 x 15 x 5mm) | |||
| Module interface | 2 x 4.0" (2 x 70mm) RVleads | Interface definition | Gray anode, white cathode | |||
| Cluster Qty | 20pcs | Module space between | 70mm | |||
| Weight | 0.4oz (12g)±5% | Lifespan | MTBF>50000hours | |||
| Environment parameters | ||||||
| Working temperature | -40°C∼60°C | |||||
| Defend grade | IP65 competely satisfies the outdoorlighting standard | |||||
| Electronic specifications | ||||||
| Working input voltage | D12V±5% | Max power | 0.73W | |||
| Driving mode | Invariable voltage! (Insure every LED working under the invariable voltage) | |||||
| Lighting capability | ||||||
| Luminous flux | 40 lm | |||||
| Beam angle | 120° | |||||
Package:
