Help CenterElectret Condenser Microphone Components FOR Sound Level Meter
Related Products
-
Best High Sensitivity Condenser Microphone FNM6035US$ 0.1 - 0.5MOQ: 500 Pieces -
Europe Precision OEM Condenser MicrophoneUS$ 0.06 - 0.5MOQ: 200 Pieces
-
Europe Precision OEM Condenser Microphone Used in Sound Level MeterUS$ 0.1 - 0.5MOQ: 500 Pieces
-
Microphone Condenser for Mobile PhoneUS$ 0.04 - 0.5MOQ: 10 Pieces
-
Multi-function Studio Condenser Microphone FNM6050US$ 0.1 - 0.5MOQ: 500 Pieces
General Introduction of electret condenser microphone
Electret condenser microphone is a sound- electrical conversion device. The Electronic condenser microphone is used in telephones, wireless telephones, mobile phones, ear-telephones, PCs, language-learning recorders, radio recorders, cassette recorders, alarms, voice control toys, voice control switches and so on .
Main Parameter of electret condenser microphone
1.What is the Noise Cancelling Electret condenser microphone?
A noise cancelling microphone (also known as pressure gradient or close talking) is a directional microphone designed for use close to the talker's mouth. Its directional pattern looks like a figure 8, and is called cosine or bidirectional.
2. The usage of Noise Cancelling Electret condenser microphone:
Very small noise cancelling microphone
Close talk characteristics effectively reduce ambient noise.

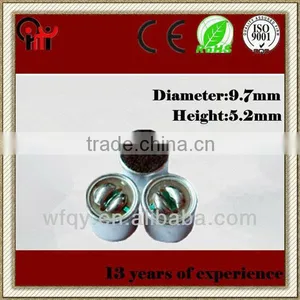

3. QY-NM9752
Dimension: Φ9.7mm ×5.2mm

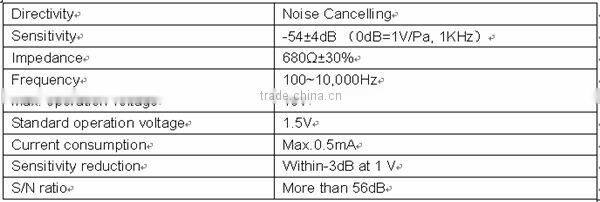

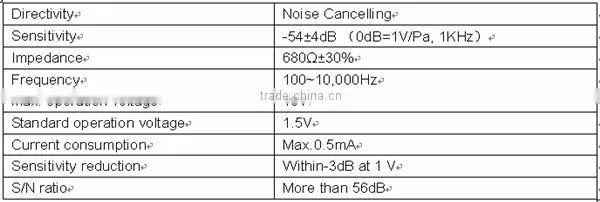

4.Specifications:
we can also produce according to your specific requirement.
5.Typical Frequency Response Curve:

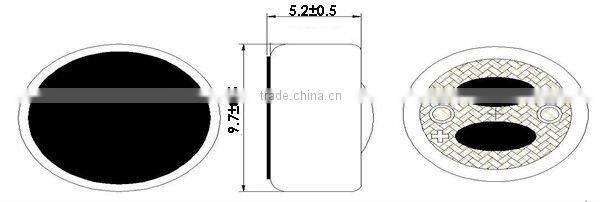

6.Dimensional Drawing:
7. Internal and Test circuit for diaphragm condenser microphone :
Packaging,Delivery
1.Packing for Electret microphone:
1)inner foams and outside cartons, inner plastic box and outside cartons (pin type)
2) inner small cartons lined with waterproof paper outside cartons (solder type)
3) inner plastic bags and outside cartons (lead wire)
we can also pack according to your specific requirement.
2.Delivery for Electret condenser microphone:
Customer feedback
1.UPS
2.Custom evaluation:
oversea market
1.oversea market:
North America ;South America ;Eastern Europe ;Southeast Asia ;Africa ;Oceania
Mid East ;Eastern Asia ;Western Europe ;Central America ;Northern Europe ;Southern Europe ;South Asia ;Domestic Market.
2.Other products of company:
Directivity:
Omnidirectional
Unidirectional
Noise cancelling
Dimension:
Diameter:Φ 9.7; Φ 9.4; Φ 6.0; Φ 4.5 and so on.
Height:6.7mm;5.2mm;5.0mm;4.5mm;3.5mm;2.7mm;2.0mm and so on.
Company’s Strength
1.Quality guarantee :
CE,ROHS,ISO9001
2. Certificate of Company:
3.Company picture :
Weifang Qinyi Electron Science and Technology Co., Ltd is a joint venture specialized in designing, producing and sales of Electret condenser microphone. The company was established in 2000, already has 13 years of experience.
Service
- If you would need a sample of our products, we will provide it for you
- We would adjust & modify our products as per your request
- Please provide your specific request for us such as diameter, size & sensitivity.
