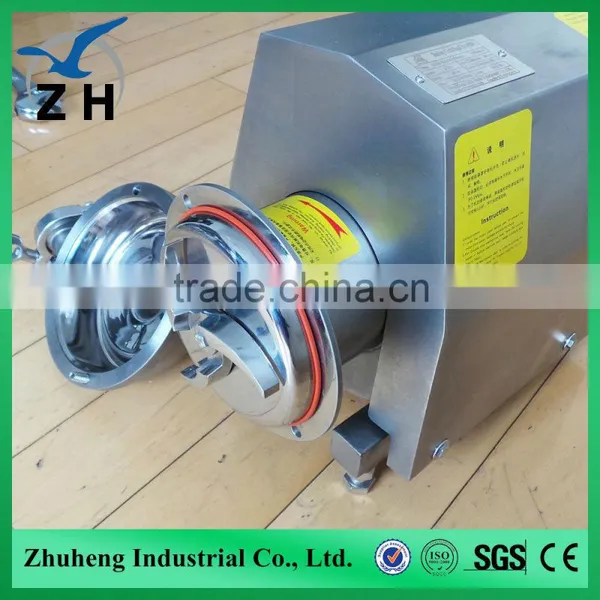

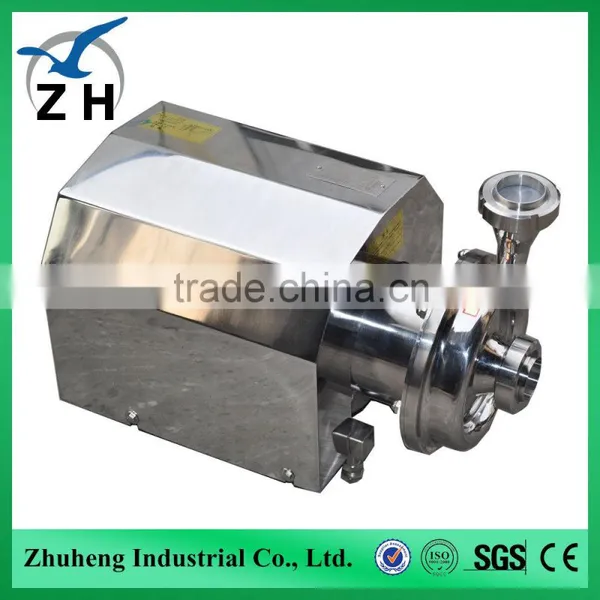

High Quality Stainless Steel Sanitary Centrifugal Pump With CE
US$ 600 - 3,200
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
ZH/oem, ZH/oem
Model Number:
BAW
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Port or Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sanitary FerruleUS$ 4.3 - 30MOQ: 5 Pieces -
Plate Heat Exchaner High Quality Small Heat ExchangerUS$ 950 - 8,980MOQ: 1 Piece
-
2016 Hot Vacuum Emulsifying Machine for FoodUS$ 4,000 - 8,000MOQ: 1 Set
-
High Quality Rotor Pump Sanitary Lobe PumpUS$ 800 - 3,860MOQ: 1 Piece
-
SMS Union Quick Connect Union ConnectorUS$ 5 - 30MOQ: 5 Pieces
Place of Origin
Shanghai, China
Brand Name
ZH/oem, ZH/oem
Model Number
BAW
Theory
Centrifugal Pump
Structure
Single-stage Pump
Usage
Water
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, electricity
Pressure
Low Pressure
Application
Other, milk,beverage etc.
food grade Sanitary centrifugal pump centrifugal air pump stainless steel centrifugal pump
Electric motor drives the impeller to rotate, so that the liquid centrifugal force, due to centrifugal force, the liquid is thrown into the side of the pump, or into the next level impeller, so that the impeller inlet pressure is reduced, and the role of pressure in the suction liquid pressure difference, pressure difference between the liquid suction pump, the centrifugal pump does not stop the rotation, theliquid flowing into the suction or discharge.
Product Display
Product Display
Technical parameter
Spec: 3T-1 80T, 0.55KW-75KW
Material: SUS304, SUS316L ,the pump body ,pump cover and impeller contact with
medium made Of SUS316L,SUS304
Standards: DIKI, SMS
Impeller:
open type impeller ,there is no dead end;
Operate condition: Health centrifugal pump is a few horizontal transport Of high and low level ,
is not the self-priming type
Surface Treatment: stainless steel centrifugal pump
the part contact with mdedium is polished ,and other partisglass painted and sand blasted
Max Inlet Pressure: 0.5MPa
Temperature Range: -10 ℃ to +140 ℃ (EPDM)
Flushed Shaft Mechanical Sealing:
Water pressure: Max 0.1 M Pa water
Lift: 0.25-0.5Umin
| Product Name: | centrifugal pump |
| Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
| Construction: | Horizontal BAW Series and vertical BAW series, impeller has open type and semi-open type |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Seal Material: | EPDM (Standard, FDA approval) |
| Max. Flow: | 180m3/h |
| Max. working temperature: | 120 C / 248 F |
| Max. rev: | 1450 RPM |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Motor power: | 0.75kw, 1.1kw, 1.5kw, 2.2kw, 3kw, …15KW,18.5kw |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 220V, 380V,415V |
| Motor: | ABB, LOCAL,50hz/ 60hz |
| Surface treatment: | Inner polished and Sandblast outside |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Plywood case or customerized. Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |
Product Detail Display

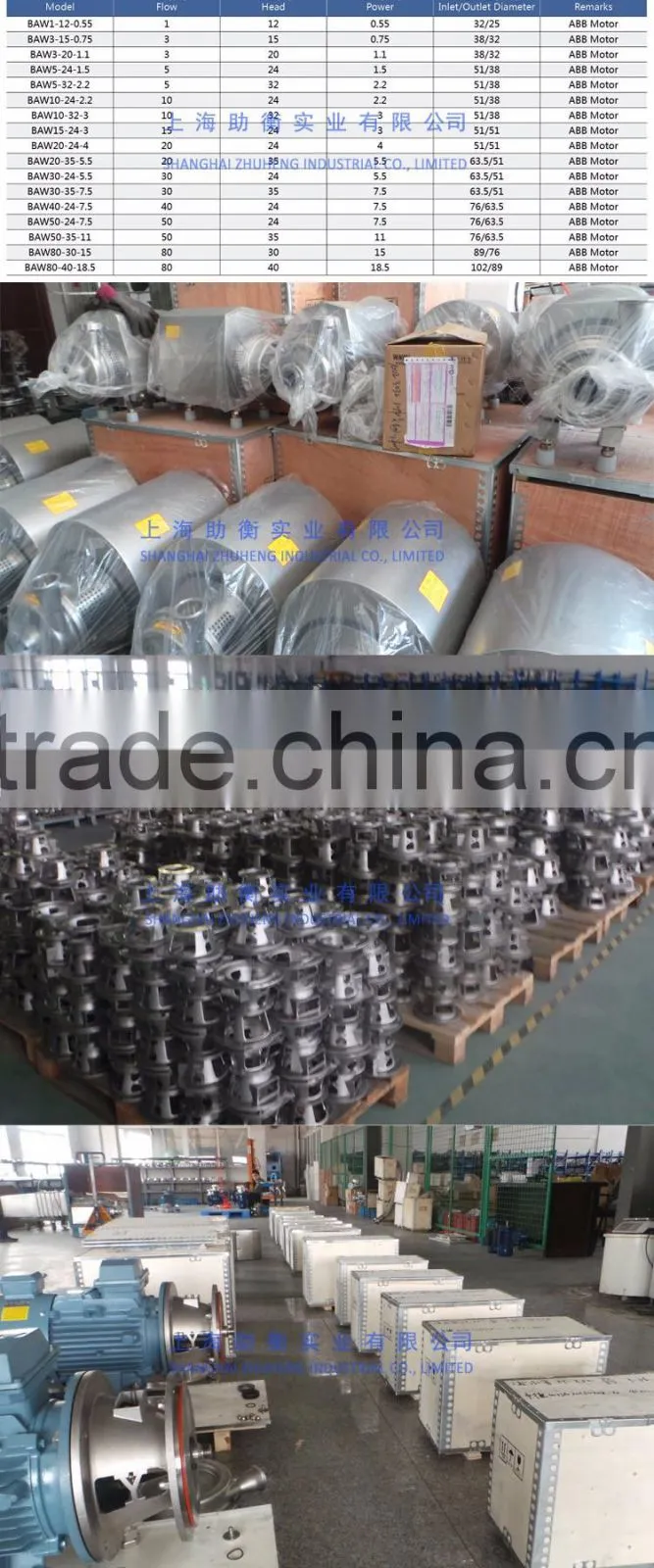

Production Process
