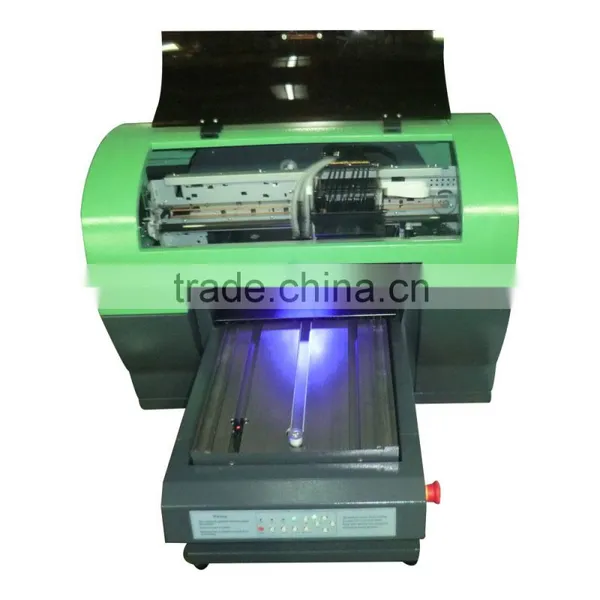

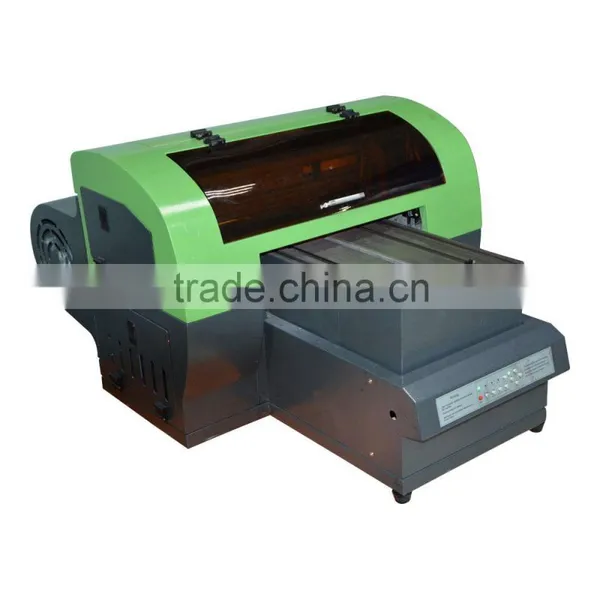

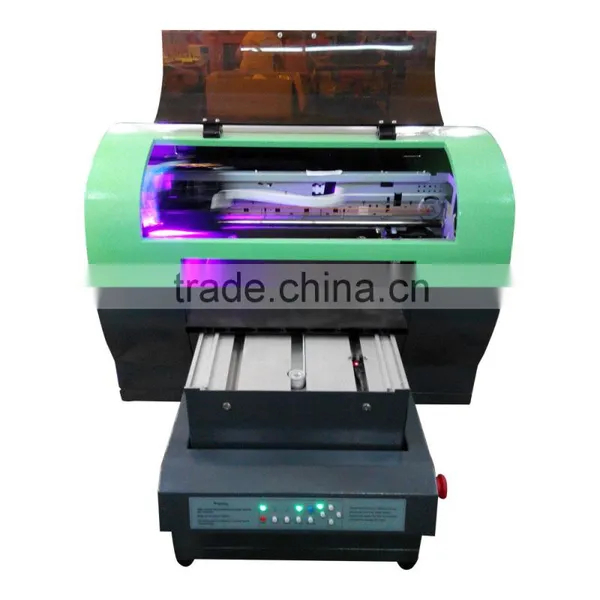

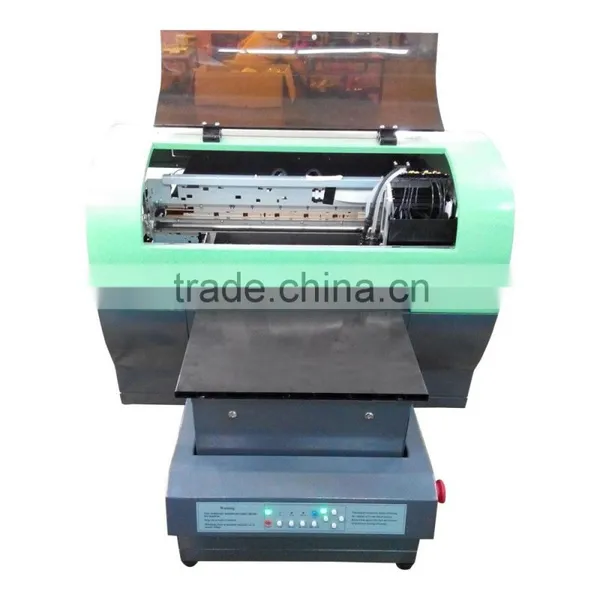

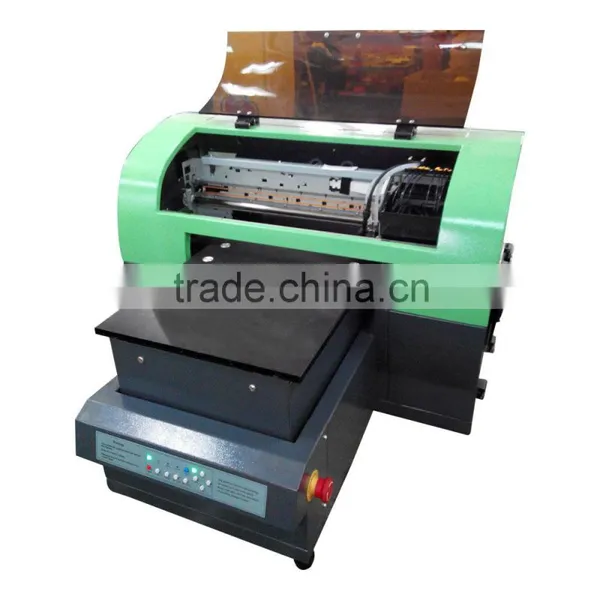

Help CenterCALCA DFP1800UV Small Size LED UV Flatbed Printer
Related Products
-
CALCA DFP1800 No Coating High Speed Flatbed PrinterNegotiableMOQ: 1 Set -
Eyelet Hand Press Grommet Machine Tool for Banner Including One MoldUS$ 34.63 - 44.00MOQ: 1 Set
-
39" x 24" Single Head Laser Engraving and Cutting System, With Electric Up and Down Lifting TableNegotiableMOQ: 1 Set
-
Automatic Media Take up Reel for Mutoh/ Mimaki/ Roland/ Ep Son Printers (No Steel Pipes)US$ 92.03 - 92.03MOQ: 5 Sets
-
5 in 1 Combo Heat Press MachineNegotiableMOQ: 1 Set
Buy one printer, you can get 8 bottles free Inks (150ml/bottle, 2 sets, including 4 colors each, C Y M K, but shipping fee is not included)
Descriptions:
Features:
LED UV printing technology is energy saving; uv ink is more environmentally friendly than other inks and it does not produce volatile gases.
• Support white ink.
CALCA A3 LED uv printer can print with white ink on transparent or dark color materials.
• Smart design for easy transport.
The machine is small and exquisite, easy for shipment by air or sea.
• Wide application of personalized print.

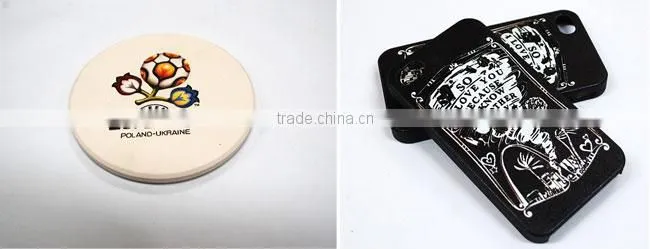

Suitable for printing on gifts, badges, signs, glasses, hair grip, cards, leather, PVC cards, crystal, U disk, mobile phone cases, IPAD cases and other materials.

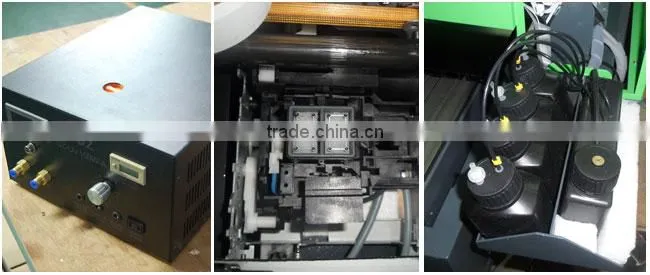

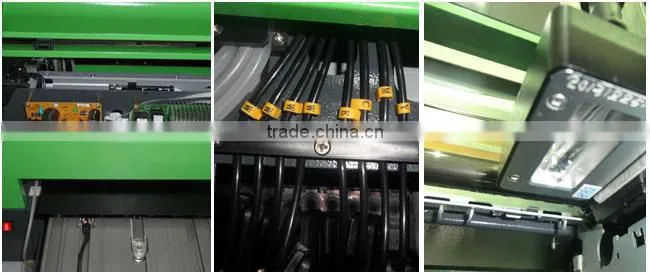

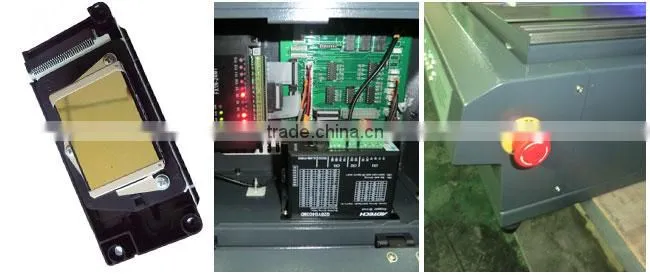

100W Water-cooling UV System Auto Cleaning System Continuous Big Ink Supply System
EPSON DX5 Printhead(Original) Digital Stepper Driver System Emergency Stop Device
Epson Original Main Board Four Colors& Four White LED UV Lamp
Usages:

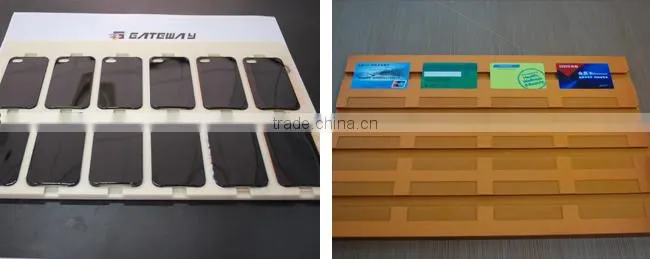

In order to get an better performance DFP1800UV flatbed printer, we also recommend you to purchase of custom sets of fixtures which can improve the efficiency of batch printing. (Fixtures are customized products. Due to different print material and thickness, please provides printing sample when you purchase).
Bottle Opener Fixture Cup Mat Fixture
Golf Fixture Guitar Pick Fixture
Mobile Phone Shell Fixture PVC Card Fixture

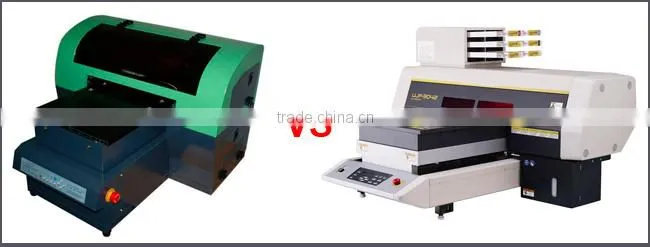

Comparison:
Price:
The DFP1800UV Printer is economical and its price is only 15 % of similar printers.

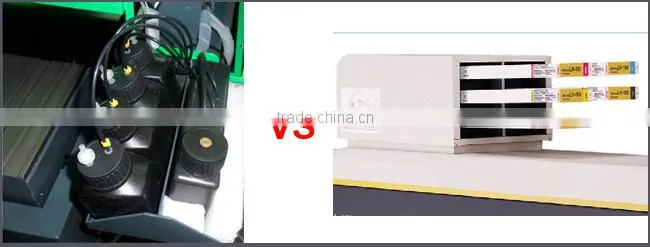

Supply ink system:
DFP1800UV Printer adopts the capacity Other Printers adopts disposable cartridges.
refillable cartridges.
Printing height:
| The maximum printing height of the DPF1800UV Printer is 9cm. |
The maximum printing height of other Printers is 5cm. |
| The DFP1800UV Printer adopts the water-cooling UV system with has strong environmental adaptability. | Other Brands use the forced air cooling system, which are easily affected by climate. |

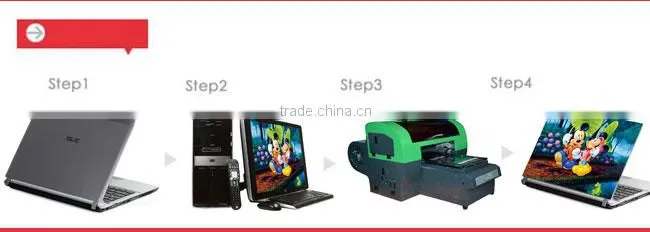

Process:
Quality Report:
Details:
| Interface | USB2.0 |
| Ink colors | C,M,Y,K, W |
| Max Media thickness | 90mm |
| Print resolution | 5760x1440dpi |
| Printer head | Micro Piezo Inkjet Epson DX5 Printhead |
| Max print size | 270mm×550mm |
Model |
SIC-CALCA-DFP1800UV |
|
Print size |
270mm×550mm |
|
Printhead |
Micro Piezo Inkjet Epson DX5 Printhead |
|
Print color |
C,M,Y,K, W |
|
Print direction |
Automatic Bidrection Printing |
|
Print speed |
Text:13 PPM, A4 color photo: about 61 seconds, A3 color photo: about 103 seconds |
|
Max. height of object |
90mm |
|
Max.printing weight |
8KG |
|
Max.printing resoultion |
5760x1440dpi |
|
Ink |
Environmental UV ink |
|
Ink Supply System |
Continuous Big Ink Supply System |
|
Height Adjustment |
Manual |
|
Printhead protection |
Infrared Ray |
|
Power supply |
AC220V 50-60HZ 75W |
|
Printing interface |
USB2.0/IEEE1394 |
|
Operation system |
Windows XP/Vista/7(32/64bit), Mac OS X10.4.11 or higher version |
|
Working Environment |
Temperature 10-35°C relative humidity 20-80%RH |
|
