Home > Manufacturing & Processing Machinery > Machine Tools > Punching Machine > Eyelet Hand Press Grommet Machine Tool for Banner Including One Mold

Eyelet Hand Press Grommet Machine Tool for Banner Including One Mold

US$ 34.63 - 44.00 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Power Source:

Other, Eyelet Hand Press Grommet Machine Tool

Place of Origin:

Beijing, China

Contact Supplier Request Quote Chat Now

Beijing Chinasigns Information Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

tianjin/shanghai/guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Power Source Other, Eyelet Hand Press Grommet Machine Tool

Place of Origin Beijing, China

Brand Name SIC

Model Number CS-MGM-SD

Weight 9kg

Dimension(L*W*H) 36*15*38cm

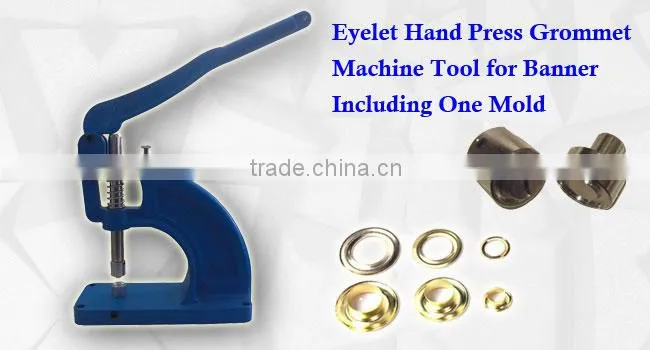

Eyelet Hand Press Grommet Machine Tool for Banner Including One Mold , Grommet Machine

Description:
This manual Grommet Machine is smart which is very easy to carry and convenient for shipping. The eyelet punch tool can exchange different die sets (3 different sizes of die set meet customers different requirements). It is very easy to operate because of the simple structure.

Feature:

• Smart and convenient.

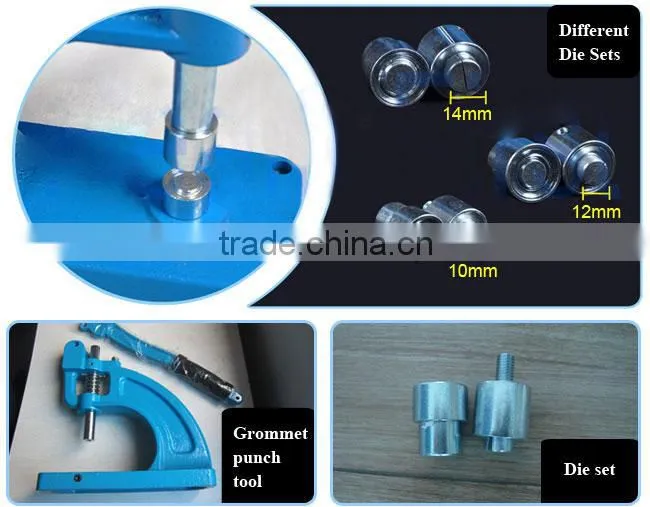

• Interchangeable Dies (#4, #5, #6) to meet different needs.
• Accommodating more material.
• Allowing Grommets to be set further into the material, not just along the edge.
• Can be mounted to a tabletop or stand alone.

Used for :
This practical die-changeable manual grommet machine is very essential equipment for punching Flex Banner, mesh, ,signs, awnings, posters,digital printing etc.

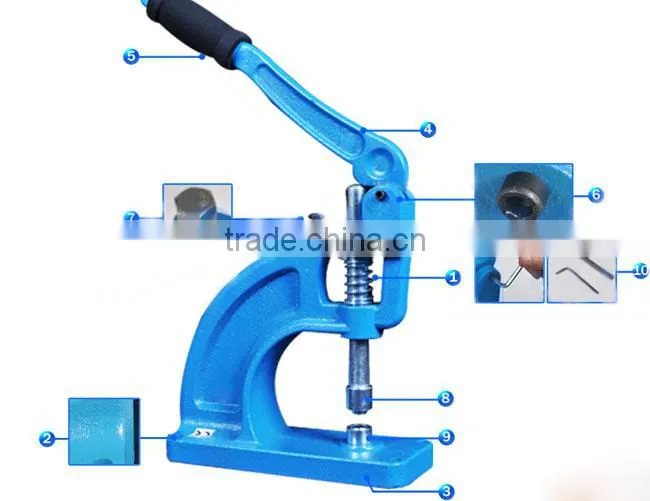

1.Main Shaft	6. Handle Fixed Screw
2.Base Plate Hole	7.Top Screw
3.Base Plate	8.Upper Die Set
4.Handle	9. Down Die Set
5. Rubber Sleeve	10.Allen Key

Note:

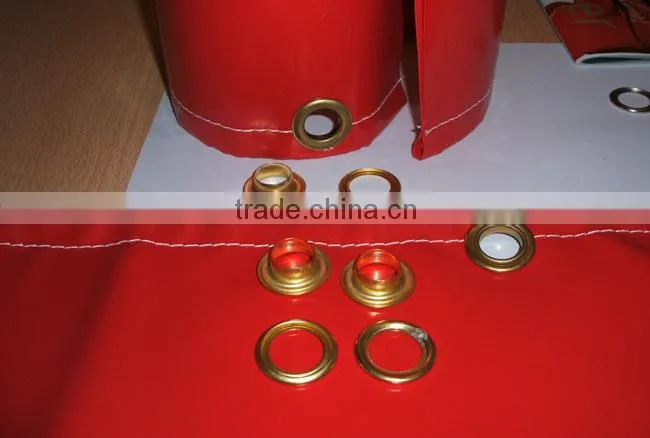

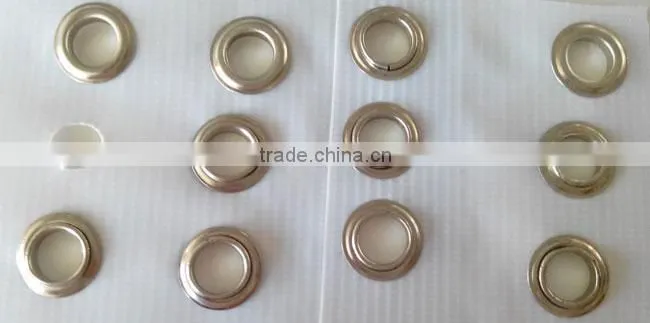

Available Grommet Sizes (inner diameter, outer diameter, height)
#4(10mm, 19mm, 6mm)
#5(12mm, 22mm, 7mm)
#6(14mm, 23mm, 7mm)

Remarks:
The price we provide above contains one machine and one mold.
If you want get one more mold, you can choose from our related products.

Warm Tips:

1. This manual grommet puncher machine tool is smart and lighter that is specially available for small amount of working (less than 100 eyelets punching per day).

2. If you have a big amount of processing eyelets (more than 100 eyelets), you’d better to choose the compared hand press grommet machine. Meanwhile, the compared manual grommet machine is heavy duty and we recommend you to choose it when you want to punch bigger and thicker banners.

3. Avoid putting grommet where sewing string or other obstructions are located. Grommet may not set completely in these areas.

On foam boards, or boards alike, set the top screw to limit the handle from pressing all the way down. This will prevent crushing of the material (foam board). To set the screw you have to unscrew little by and test it each time until you are satisfied with the grommet setting.

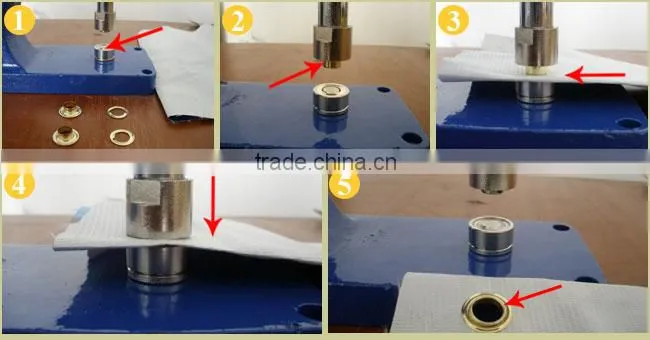

Usage for Hand Presses Eyelet Machine :
