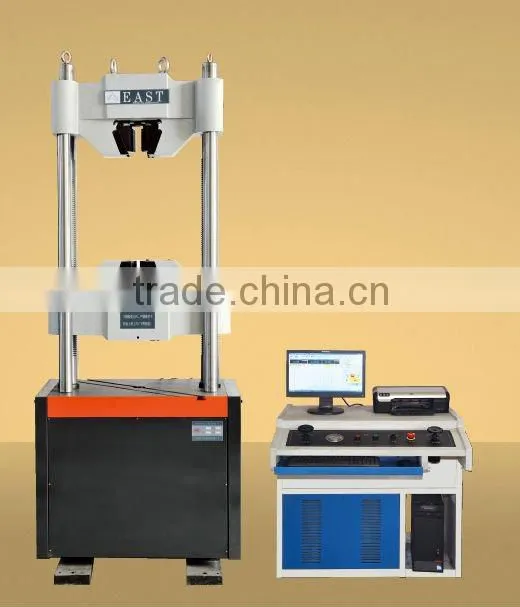

WEW-600 Computer display hydraulic universal Testing machine
Function and characteristics
1. WEW series of computer screen hydraulic universal testing machine adopt hydraulic loading, the structure of the cylinder underneath, oil pressure sensor measurement, the computer screen, jaw clamping part with tow kinds way of manual clamping and hydraulic clamping , Easy to operate, adding other accessories can do other testing, the precision being 1class.
2.This series testing machine used for testing the tension compression, bending and shear of metal and plastic, concrete, cement and other non-metallic. Adding simple accessories, it can complete the mechanical performance test of tape, chain, wire rope, and components, with the functions of analysing and printing the testing data and curves.
3.It can be widely used in the industry such as machinery, building materials, metallurgy, research institutes, tertiary institutions, the quality inspection center and commodity inspection departments. So it is the ideal choice for production, quality inspection, research and teaching sectors.
Technical data:
Model: WEW-600 |
Max. Capacity: 600kN |
structural style: Four -column |
Precision of force: better than ±1% |
Test force range: 2%-100% |
Precision of deformation measurement: better than ±0.5% |
Deformation resolution (um):2 |
Tensile space: 600mm |
Compression space: 0-550mm |
Valid width: 500mm |
Oil cylinder stroke: 250mm |
Flat specimen clamping diameter: 0-30*80 mm |
Round specimen clamping diameter: Φ13-Φ40 |
The dimension of loadframe(mm):800*620*2050 |
The motor power: 2.3kw |
