1.

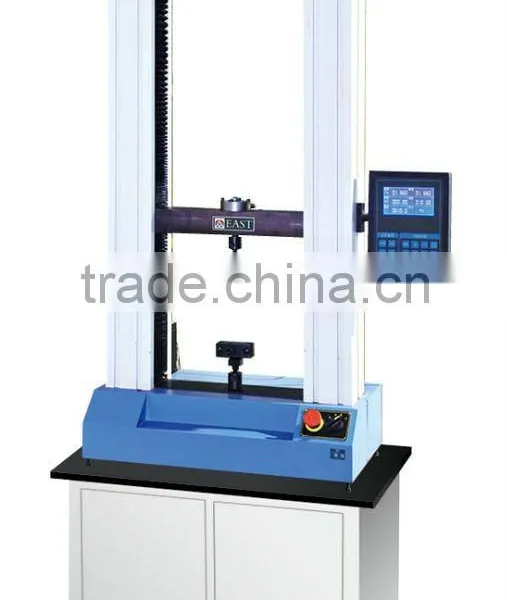

LDW Electronic Tensile Testing machine (small door)
1.It is widely used in mechanical properties test of rubber, plastic, wire and cable, textiles, waterproofing materials, woven etc.
2.non-metallic materials and metal wire, metal foil, metal sheets , metal rods and other materials, but also do the mechanical properties test of other parts. Adding the attachment it can also do compression, bending test.
Primary Technical Parameters
product |
LDW Electronic Tensile Testing Machine(small door) |
LDW Electronic Tensile Testing Machine(large door) |
|||
Model |
0.1KN,0.2KN,0.5KN,1KN,2KN,5KN,10KN,20KN |
5KN,10KN,20KN,50KN |
100KN |
200KN |
300KN |
Effective range of testing force |
2% -100% of Maximum load
|
||||
Load measurement accuracy |
Indication of ± 1%
|
||||
Stretching space |
0-650 mm |
0-650 mm |
0-700 mm |
||
Valid test width |
350mm |
410mm |
450mm |
550mm |
|
Testing speed Range |
0.1-500mm |
0.1-500mm |
0.1-500mm |
0.2-100mm |
|
Speed precision |
±2% |
||||
Displacement measurement |
Resolution of 0.1mm
|
||||
External dimensions |
620*370*1250mm |
700*410*1680mm |
760*480*1780mm |
1000*570*2200mm |
|
power |
220v±10%,0.8kw |
220v±10%,1.2kw |
220v±10%,1.5kw |
220v±10%,2kw/3KW |
|
