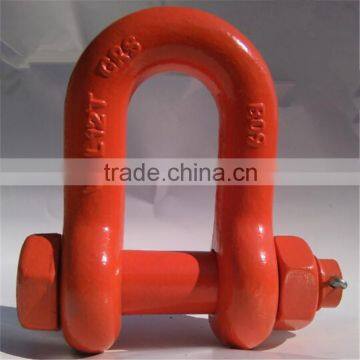

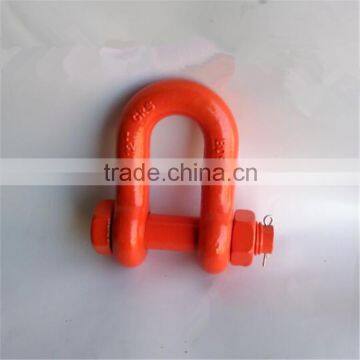

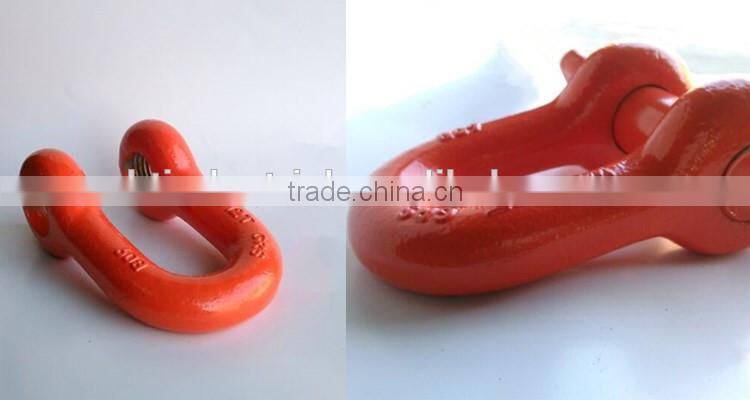

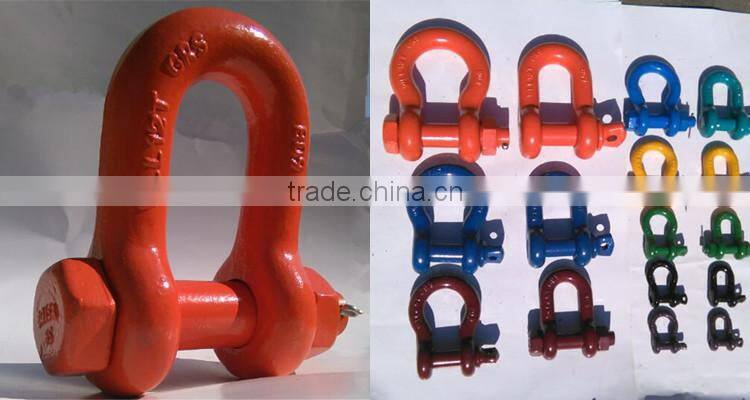

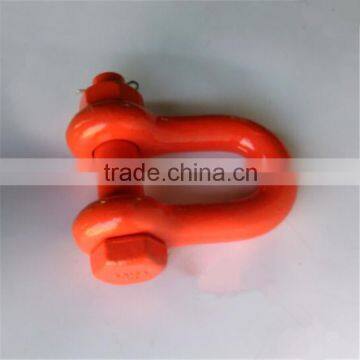

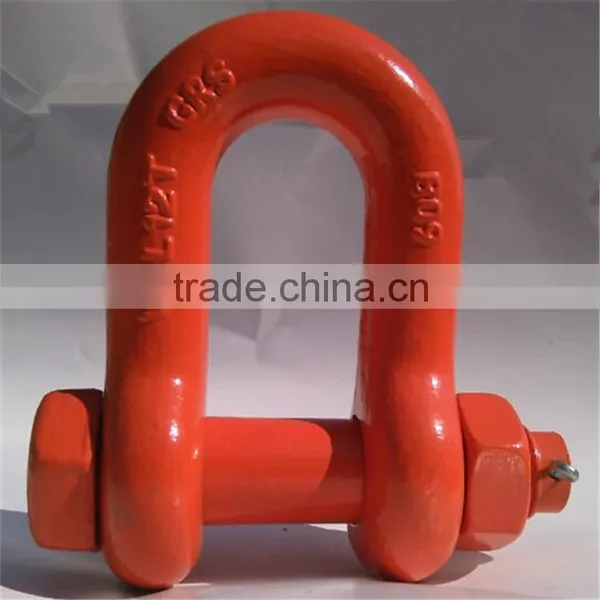

AS2741-2002 Grade S 6 times d type Shackle
| MATERIAL: | Body was carbon steel pin was alloy steel | ||
| CONSTRUCTION: | Quenched and Tempered | ||
| STANDARD: | AS 2741-2002 | ||
| PROOF LOAD: | Proof load tested at 2 times of Working load limit | ||
| SAFETY FACTOR: | MBL equals 6 X WLL | ||
| working load limit | diameter bow(mm) | width inside(mm) | diameter pin(mm) |
| WLL0.33T | 5 | 10 | 6 |
| WLL0.5T | 6 | 12 | 8 |
| WLL0.75T | 8 | 13 | 10 |
| WLL1T | 10 | 17 | 11 |
| WLL1.5T | 11 | 18 | 13 |
| WLL2T | 13 | 21 | 16 |
| WLL3.25T | 16 | 27 | 19 |
| WLL4.75T | 19 | 32 | 22 |
| WLL6.5T | 22 | 37 | 25 |
| WLL8.5T | 25 | 43 | 29 |
| WLL9.5T | 29 | 46 | 32 |
| WLL12T | 32 | 52 | 35 |
| WLL13.5T | 35 | 57 | 38 |
| WLL17T | 38 | 60 | 41 |
| WLL25T | 44 | 73 | 51 |
| WLL35T | 51 | 83 | 57 |
| WLL55T | 63 | 105 | 68 |
| WLL85T | 76 | 127 | 83 |
| WLL120T | 89 | 146 | 95 |
| WLL150T | 102 | 165 | 108 |
We are a rigging series manufacturer in qingdao, shandong of China.
Our factory is built on 1995s. And we already have twenty years experience on rigging hardware.
In order to meet the customer's need we have built rich stock about shackle turnbuckles in our factory.
Our factory has professional technicians and management personnel, advanced domestic producing facilities, rich experience in producing management, high technological background, scientific producing flow and first class quality control system.
In additional, we obtained the ISO 9001-2008 Quality System Certificate early in this industrial.
Each kinds of item must be strictly inspected one by one before shippment in order to provide the best quality products to our customers.

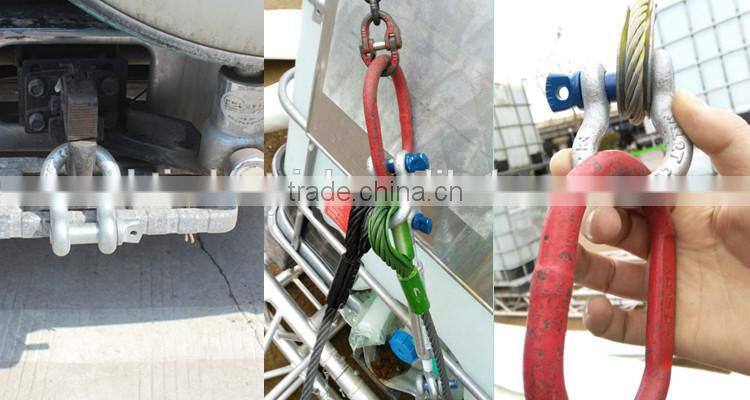

Widely used in electric power, metallurgy, petroleum, machinery, railway, chemical industry, ports, mining, oil & gas, fishing, offshore, construction and other industries.

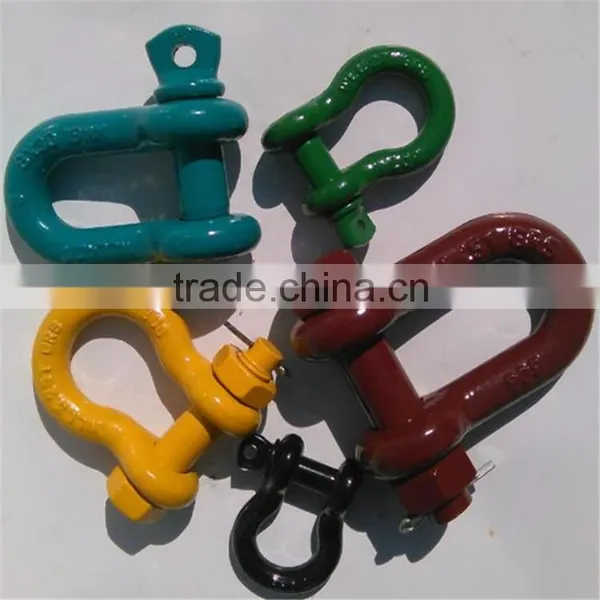

US type shackle, Grade S type shackle, US type turnbuckle and US type rachet load binders we are usually in stock.
a.) forged press machine (4 lines :300t;400t;630t;1000t)
b.) heat treat machine(facality:net type furnace/box type furnace/pit furnace)
c.) inpect equipment:100 tonnes universal test machine(has passed qingdao quality superivise bereau inspect)
d.) rockwell hardness test machine (has passed qingdao quality superivise bereau inspect)
We always take part in rigging hardware show on home and abroad.
Our manager is talking with our customers about our rigging hardware products in the Germany Fair show.
Our factory often use carton / pp bag / gunny bag on wooden pallet / steel iron pallet for our products. Other packaging ways are also accepted.
