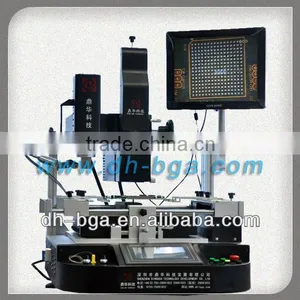

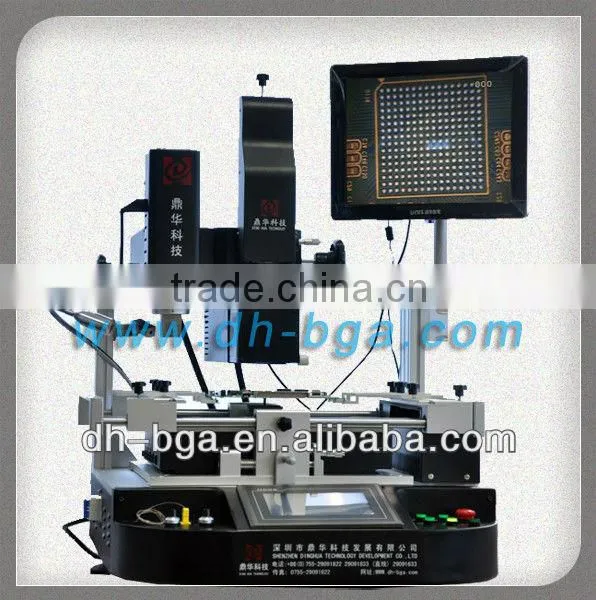

bga repair DH-A3 low cost bga machine for mobile phone

Specifications

1.low cost bga machine
2.Competitive price with superior quality
3.CE,ISO certified
4.High success rate
5.Accuracy control

DH-A3 low cost bga machine Main Functions



1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.

2. Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface.

3.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degC. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.

4.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.

5.Flexible and convenient removable fixture on the PCB board which protect and prevent damage to PCB. It can also adapt to rework various BGA packages.

6.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement.

7.High precision digital video registration system, rocker to make the optical lenses move in forward/back and right/left. Observe the counterpoint of four corners of BGA and central point.

8.X,Y direction and R angle adopt micrometer fine-tuning. Registration accuracy can reach ±0.01MM. Equipped with high-definition liquid crystal display.

9.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen.

10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.

11.Built-in vacuum pump.

CE certification, with emergency switch and automatic power-off protection device when emergency happens.



DH-A3 low cost bga machine Specification



Total Power	6500W
Top heater	1200W
Bottom heater	Second heater 1200W,IR preheating 3900w
power	AC220V±10%     50/60Hz
Dimensions	L800*W900*H950 mm
Positioning	V-groove, PCB support can be adjusted in any direction with external universal fixture
Temperature control	K Sensor, Closed loop
Temp accuracy	±2°C
PCB size	Max 500*400 mm Min 22*22 mm
Workbench fine-tuning	Forward/back±15mm, right/left±15mm
Camera magnification	10x-100x times
BGA chip	2*2-80*80mm
Minimum chip spacing	0.15mm
External Temperature Sensor	1-5(optional)
Placement Accuracy	±0.01MM
Net weight	93kg
