Specifications
1,BGA rework station laser positioning2,CCD camera and optical alignment
3,HD touch screen

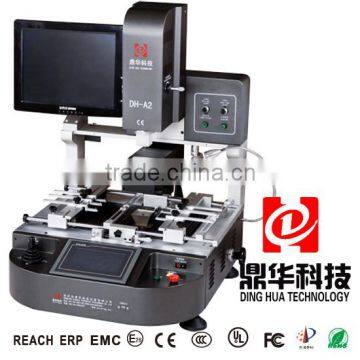

Automatic CCD camera optical alignment BGA rework station DH-A2 with laser positioning
DH-A2 Specification:
Total Power |
5200W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W,IR preheating 2700W |
power |
AC220V±10% 50/60Hz |
Dimensions |
L600×W700×H850 mm |
Positioning |
V-groove, PCB support can be adjusted in any direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±2°C |
PCB size |
Max 440×380 mm Min 22×22 mm |
BGA chip |
2X2-80X80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1(optional) |
Net weight |
70kg |
DH-A2 Feature:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with temperature module to enable precision temperature control of ±2 deg C. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board
4.Flexible and convenient removable fixture on the PCB board which protectsand prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement
6.Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen
8.accurate and precise temperature control
9.It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up.
11.CE certification, with emergency switch and automatic power-off protection device when emergency happens
Packing list
1, DH-A2 BGA rework station (touch screen) 1 set
2, Displaye 1 set
3, Vacuum sucker Pad 3 piece
4, DH-A1 specification(manual) 1 copy
5, Hot air nozzle 5 piece ( 31*31/38*38/41*41/34*34/55*55 )
6, Abnormity clip 6 piece
7, Blossom knob 6 piece
8, Supporting Screw 6 piece
9, External Temperature sensor 1 piece
More Product photo:
Photo about packing
All of our machine will packed carefully with standard plywooden box, to protect it from transport.
Photo about our factory
the products we sell one-year warranty.If you require technical support for any of your Bga rework station products, please contact our support team using the following details:
We always answer your questions: 24 hours a day, 7 days a week.
