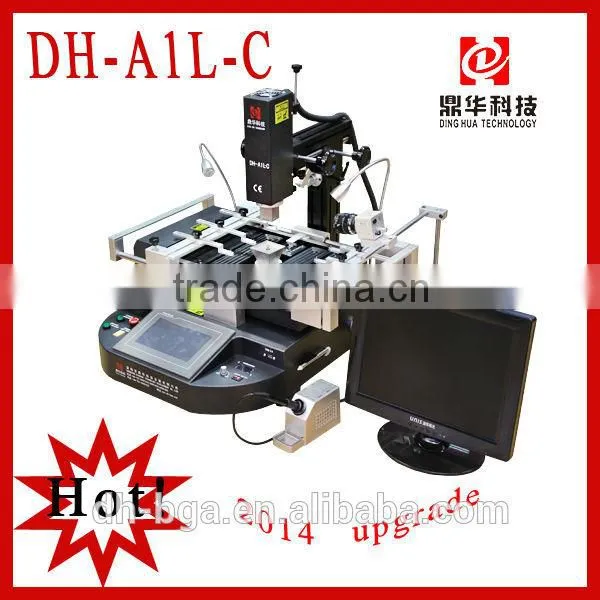

Help CenterThree Independent Heater Laser CCD Camera BGA Rework Station DH-A1L-C (good Quality)
Related Products
-
BGA Circular Nozzles Hot Air Rework Reflow Soldering StationUS$ 1 - 39,999MOQ: 1 Set -
Hot Air Touch Screen Three Independent Heater BGA Rework Station DH-A1 (good Quality)US$ 1 - 1,500MOQ: 1 Piece
-
New Bga Reball Rework StationUS$ 1 - 20,000MOQ: 1 Set
-
Semi Automatic CCD Camera Optical Alignment Cell Phone BGA Chip And IC Repair MachineUS$ 16,000 - 20,000MOQ: 1 Piece
-
Quick Bga Reball MachineUS$ 1 - 20,000MOQ: 1 Set
Specifications
1.BGA rework station DH-A1L-C2.98% rework rate
3.powerful cross flow fan
3.three independent heater
4.Laser positioning
>>>Specification:
| Total power | 4900W |
| Top hot air heater | 800W |
| Bottom heater | hot air: 1200W; IR: 2700W |
| Power | 110v/220v(optional) |
| Temperature accuracy | ±2°C |
| Positioning | V-groove, PCB support can be adjusted in any direction and equipped with the external |
| PCB size | min 20x20mm, max 500*450mm |
| BGA chips | 2x2mm-80x80mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | 42kg |
| Machine Dimension | 64x73x58cm |
| Suitable motherboards | mobile phone, laptop, desktop, PS3, XBOX360, game console,etc |
>>> Advantages:
1.Embedded Industrial PC, high definition touch screen interface, PLC control, and instant profile analysis function. Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2.It uses precise K-type close circuit control and automatic temperature adjustment system, with PLC and temperature module to enable precision temperature control of ±2 degree. External temperature sensor enables temperature monitoring and accurate analysis of real time temperature profile.
3.V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
4.Flexible and convenient removable fixture on the PCB board which protects and prevent damage to PCB. It can also adapt to rework various BGA packages.
5.Various sizes of BGA nozzles, which can be adjusted 360 degree for easy installation and replacement;
6. Three temperature areas can independently heat and are multiple controllable and adjustable to ensure best integration of different temperature areas. Heating temperature, time, angle, cooling and vacuuming can all be set on the interface.
7.There are 6-8 levels of variable and constant temperature controls. Massive storage of temperature curves which are Instant accessible according to different BGA. Curve analysis, setting and adjustment are all accessible via touch screen. Three heating areas adopts independent PID calculation to control heating process to enable more accurate and precise temperature control.
8.Temperature rise more balanced, temperature more accurate
9. It uses high powered blower to enable fast cooling of PCB board and prevent it from deformation. There are also internal vacuum pump and external vacuum pen to assist with fetching the BGA chip.
10.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start after vertical wind stopped heating. When the temperature drops to room temperature, the cooling process will stop, so that the machine will not age after heated up
11. Laser positioning, it's more precise. CCD Camera to see the soldering process.
12.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
>>> Details:
Two LED Lights, CCD Camera, Laser
Soldering Iron
The Touch Panel
>>> certification:
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it, please kindly tell us.
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1 year warranty, the heating wire is for 3-years warranty
