DING HUA DH-B1 BGA rework station
Specification for DH-B1 bga rework station:
Total Power | 4800w |
Top heater | 800W |
Bottom heater | Second heater 1200W,IR preheating 2700w |
power | AC220V±10% 50/60Hz |
Dimensions | L800*W900*H750mm |
Positioning | HD touch screen, intelligent conversational interface, digital system setting. |
Temperature control | K Sensor, Closed loop |
Temp accuracy | ±2°C |
PCB size | Max500*400mm min 22*22mm |
BGA chip | 2X2-80X80mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1 optional |
Net weight | 45kg |

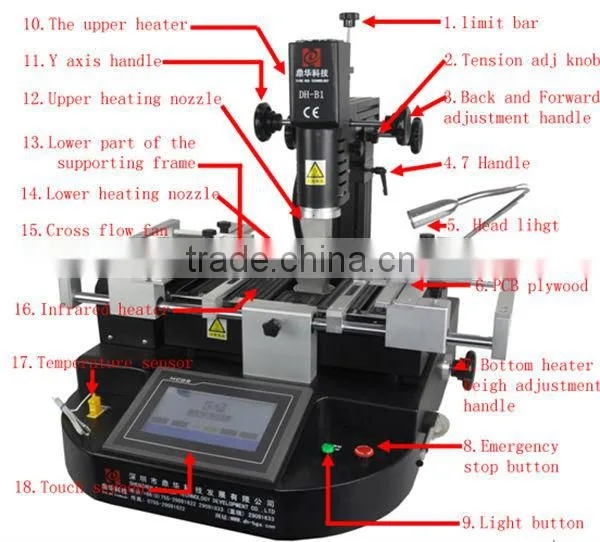

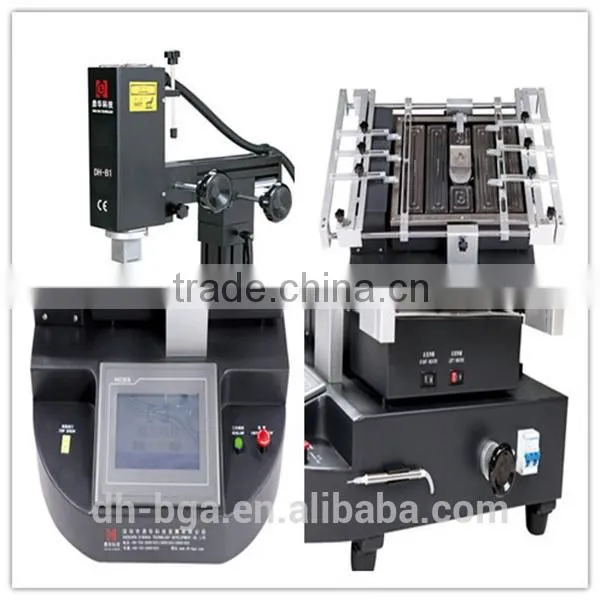

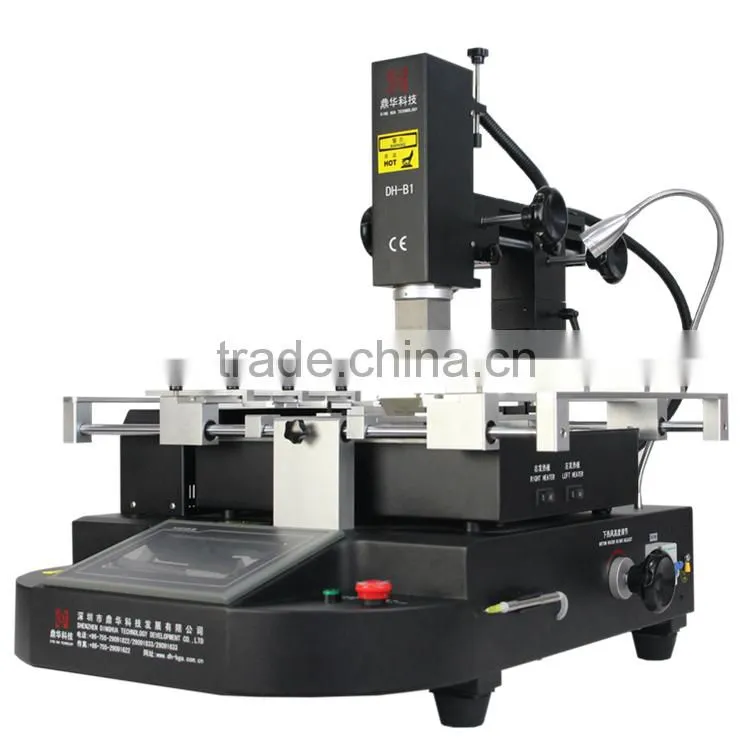

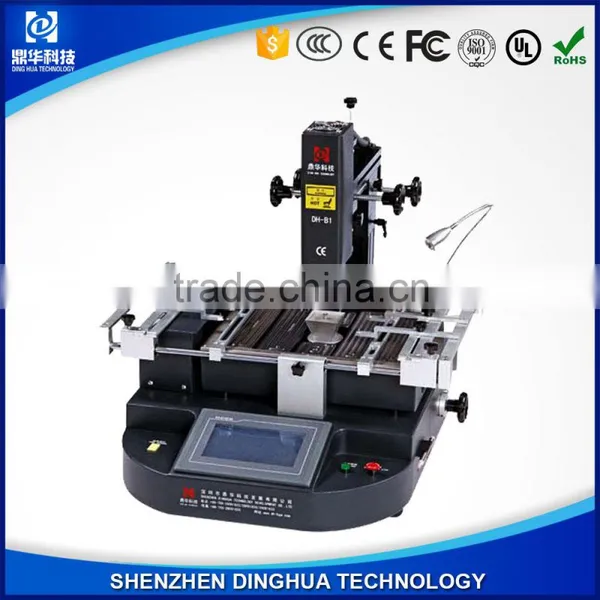

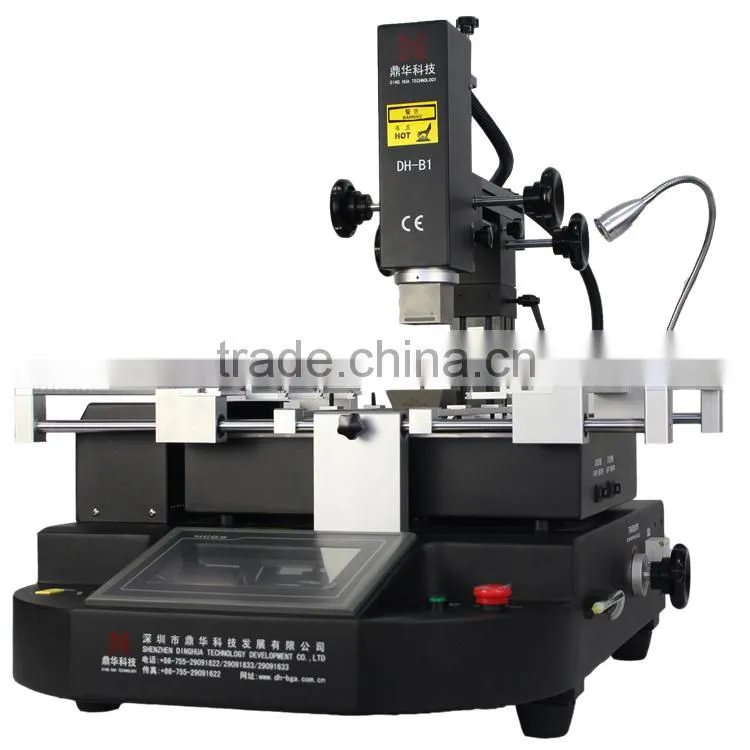

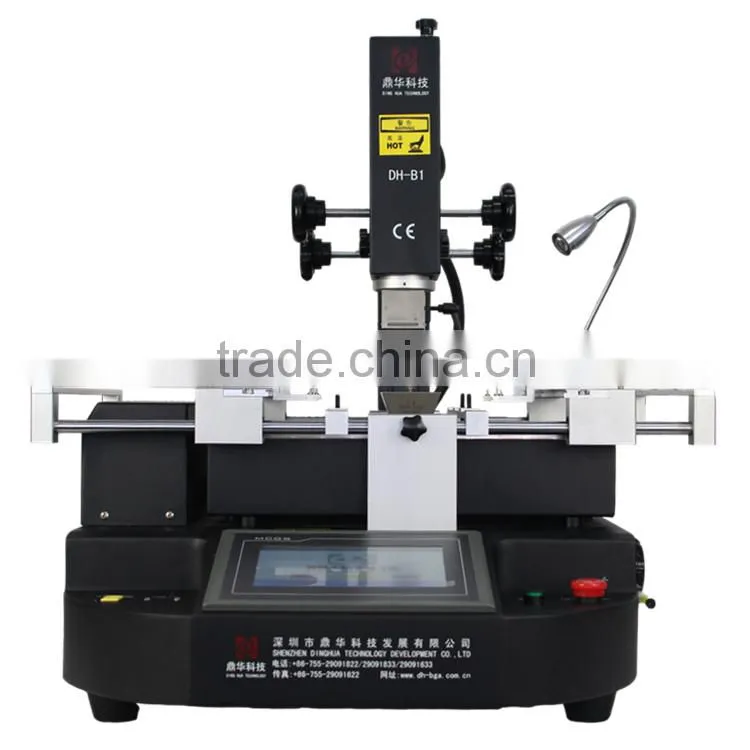

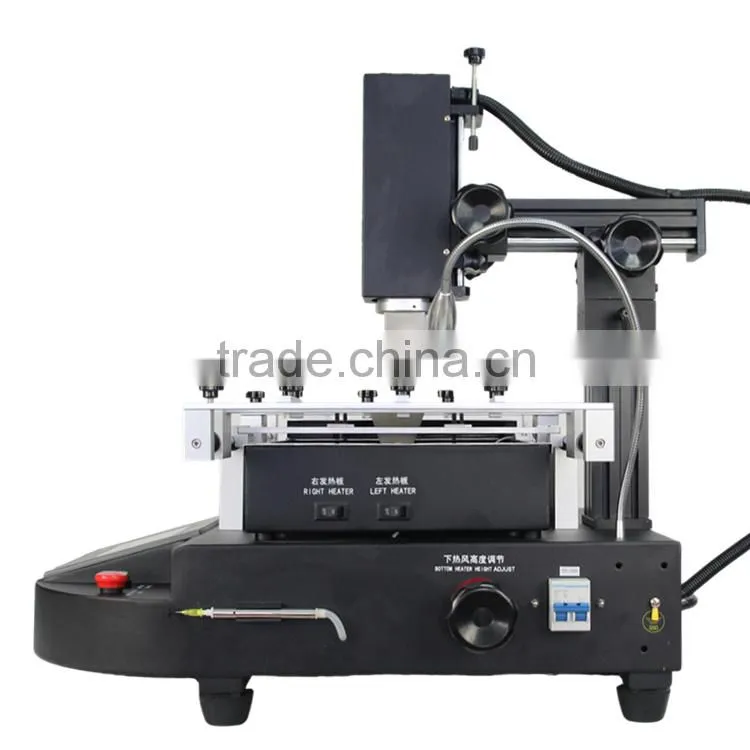

Pictures of DH-B1 BGA rework station
Features of DH-B1 BGA rework station

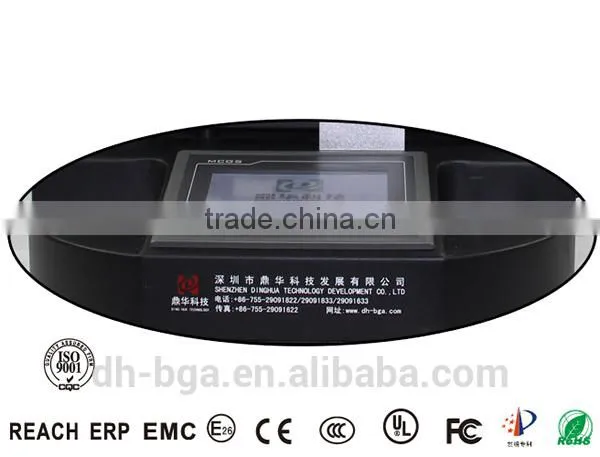

1.Three independent heaters, Mean Well power supply, PCB board control, Internal built-in vacuum pump, 7'' MCGS touch screen interface, easy and high efficiency to operation. all can set 8 segments heating, cooling and constant temperature, save up to ten temperature profiles. IR preheat area can be controlled according to PCB size
2.K sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
3. Moveable heater, easy to operate.
4. All kinds size of titanium alloy nozzles, 360 degree rotation, easy to install and replace, customized is available.

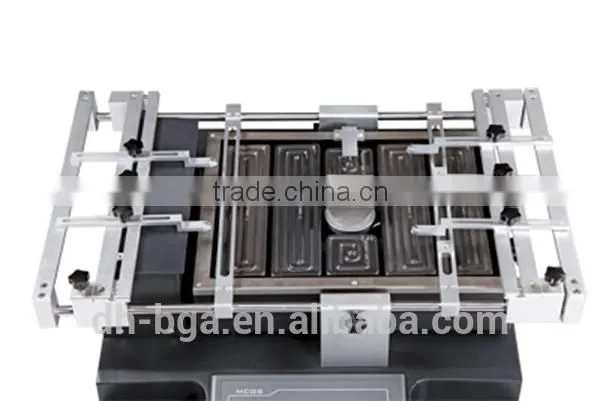

5. V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
6. Auto Powerful cross flow fan, cooling the PCB board efficient and automatically after heating, to prevent it from deformation and damaged.
7. Sound hint system,5-10 seconds early voicing warning before heating finished. There is an alarm before the completion of each desoldering and soldering. So the worker can prepare use the vacuum pen to pick up the chips on time.

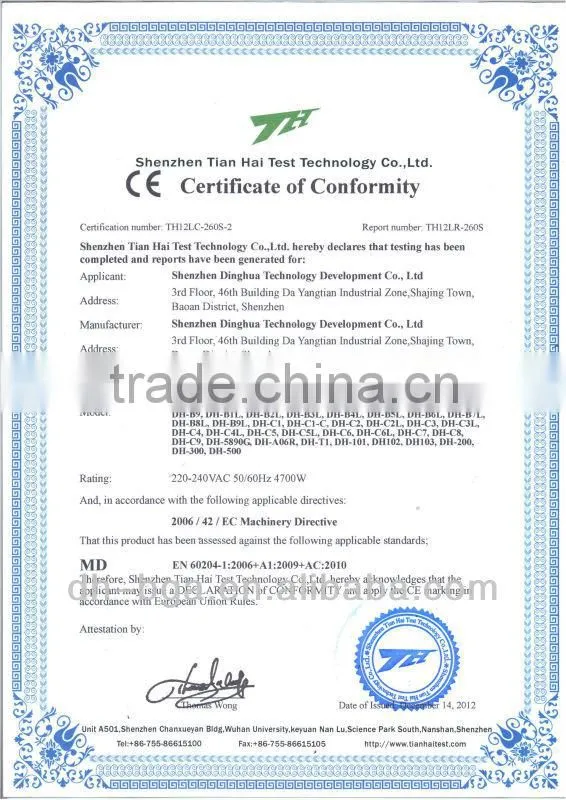

8. CE certification, with emergency switch and automatic power-off protection device when emergency happens
9. With USB port.
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
1. Your inquiry related to our products or prices will be replied within 24hours.
2. R*D team can meet all your special requests.
3. Customized can be OK.
4. Delivery on time.
5. Offer premium after-sales service. offering installation and use guidance.
6. Welcome to visit our factory, we can arrange the pick up and hotel.

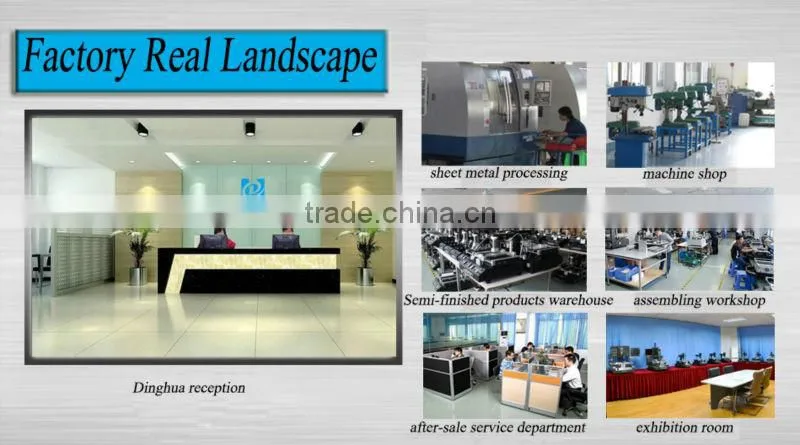

Company profile
Our customer
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guidance that show you how to use machine. Very easy to use it.D
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5) You are a trade company or a manufacturer?
We are a manufacture, with our own skilled R&D department.
6) If i want to visit your factory, will you arrange the pick up and hotel?
Of course, we can arrange everything! only 20 minutes reach Shenzhen airport.
why choose us?
1. We are specialized in BGA rework station,automatic soldring robot, automatic screw locking machine ect more than 6 years,
2. Cooperating with HUAWEI, GREE, SAMSUNG, LG etc well-known brand company.
3. Manufacturer with skilled-engineers.
4. The core components, with premium quality materials, imported from Japan and Germany.
5. Offer high quality before and after-sales service.
6. Delivery on time for decent order.
7. 3 years warranty, the first years for free warranty, the second and third year receive the parts of cost.
1. Before delivery, the machine will be aging test for 3 days.
2. 3 years warranty. The first year free warranty, the second and third year receive the parts of cost.
3. 3 years warranty for the hearting wire.
