Product Details
Place of Origin: | Guangdong, China | Brand Name: | DINGHUA | Model Number: | DH-G200 |
Voltage: | AC220V±10% 50/60Hz | Current: | 20A | Rated Capacity: | 5300W |
Rated Duty Cycle: | 100% | Dimensions: | L550*W580*H720 mm | Weight: | 60KG |
Usage: | VGA Card Repair BGA Welding Machine,BGA Chip Reuse/Rework Equipments. | Certification: | CE ISO 9001 2008 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
VGA Card Repair Universal BGA Welding Machine DH-G200
Specification of VGA Card Repair Universal BGA Welding Machine DH-G200
Total Power | 5300W |
Top heater | 1200W |
Bottom heater | 2 nd:1200W 3 rd:2700W (Plus large fever area to adapt to all kinds of P board) |
Power | AC220V±10% 50/60Hz |
Current | 20A |
Dimensions | L550*W580*H720 mm |
Packing size | 760*680*680mm |
Positioning | V-groove, PCB support can be adjusted in X direction with external universal fixture |
Temperature control | K thermocouple(K Sensor)Closed loop |
Temp accuracy | ±2 degrees |
PCB size | Max 400*380 mm Min 22*22 mm |
BGA chip | 2*2-50*50mm |
Minimum chip spacing | 0.15mm |
External Temperature Sensor | 1 (optional) |
Net weight | 60kg |
Features of VGA Card Repair Universal BGA Welding Machine DH-G200
1.Embedded industrial PC, high definition touch screen, make the operation humanity, CPU control, and instant curve analysis function. Real-time display settings and actual temperature curve, which can also be used to analyze and correct the curve if necessary.
2.High precise k-type thermocouple closed-loop control and automatic temperature compensation system, with CPU and temperature module to enable precise temperature deviation to add and subtract 2 degrees. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
3.V-groove PCB works for rapid, convenient and accurate positioning, which can meet all kinds of PCB board of positioning.
4.Flexible and convenient removable fixture on the PCB board can protect the PCB fringe devices from damaging and transmuting. It can also adapt to various BGA ‘s reworking.
5.Various sizes of BGA alloy nozzles, which can be adjusted 360 degree for easily installation and replacement.
6.Three independent heaters: Three temperature areas can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in the human-machine interface.
7.There are 8 stage temperature controls up and down. Massive storage of temperature curves which are accessible at any time according to different BGA. Curve analysis, setting and adjustment are also accessible via touch screen. Three heating areas adopt independent PID calculation to control heating process to enable more accurate temperature.
8.High power cross-flow fan to enable fast cooling of PCB board and prevent PCB from deformation. There are also internal vacuum pump and external vacuum chuck, which can help to fetch the BGA chip;
9.Collocating with sound control "early warning" function. It can warn workers to make some relative preparation 5-10 seconds before the completion of uninstalling or welding. Cooling system will start after vertical wind stopped heating. When the temperature drops to normal temperature, the cooling process will stop automatically, so that the machine will not be aging after temperature heated up.
10.Rocker controller for controlling the upper heater goes up and down freely, and it also has the function for zooming the picture.
11.CE certificate,equipped with emergency stop switch and automatic power-off protection device when emergency happens.
Structure of VGA Card Repair Universal BGA Welding Machine DH-G200

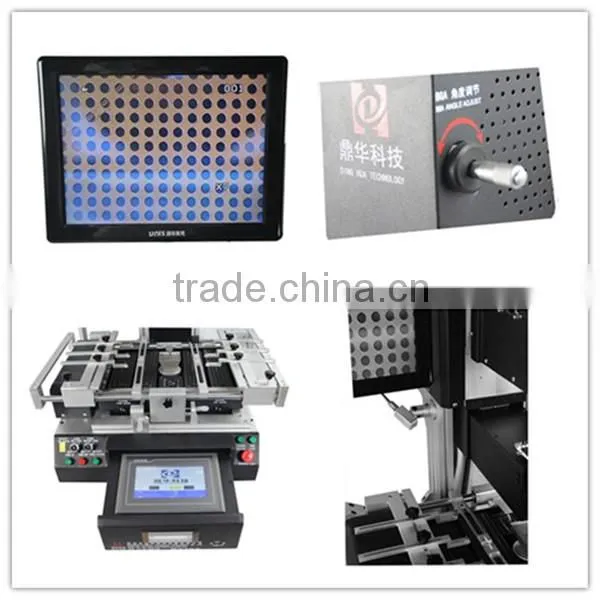

More Photo of VGA Card Repair Universal BGA Welding Machine DH-G200

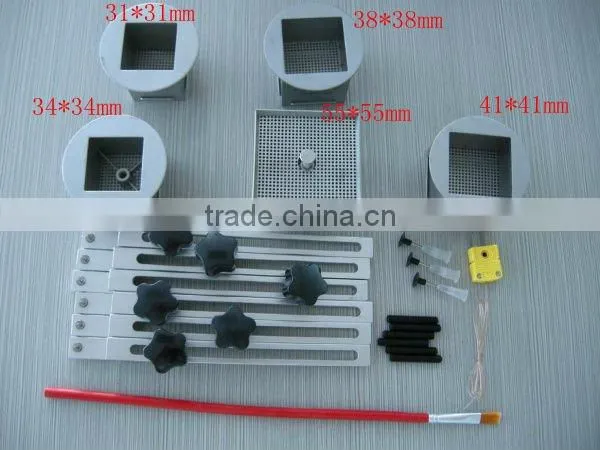

Accessories of VGA Card Repair Universal BGA Welding Machine DH-G200
Packing of VGA Card Repair Universal BGA Welding Machine DH-G200
Certifications of VGA Card Repair Universal BGA Welding Machine DH-G200
Our Company
Why Choose Us
1.We are the professional BGA rework station manufacturer. And have been in this filed for more than 5 years. Engaged in Design, Development, Production and Selling.
2.Our machine is best in quality with low price. Are popular with the repair shop and training schooll all over the worlk. Welcome you to be our agent.
3.Fast delivery: FedEx, DHL, UPS, TNT and EMS. Many models in stock all the time.
4.Payment: Western Union, PayPal, T/T.
5.OEM and ODM is welcome.
6.The machine( VGA Card Repair Universal BGA Welding Machine DH-G200 ) will be equipped with user guide and CD.
Warranty
The whole machine( VGA Card Repair Universal BGA Welding Machine DH-G200 ) warranty for one year. And the heating wire for three-years warranty. Our technical support for the whole life.
Thank you for your attention. Should you have any request and question, please feel free to contact me. Your inquiry will get our fast reply. Welcome you to visit our factory.
