Dinghua Automatical Optical Alignment BGA Rework Station DH A5
ABOUT DINGHUA:
We,Dinghua Technology Development Co.Ltd , a Professional BGA Rework Station Manufacturer for different levels of BGA Rework Stations:Manual Model for Personal Repair Shop,Optical Alignment Model for Factory and Company.
Right Cost and Right Quality,Training Courses ,OEM and ODM Services,High-level After-sale Service are our advantages in the aera of BGA Rework Station.
Any interest,let's talk now.Anyway,we all will do our best to meet your needs,your satisfaction is our first goal.

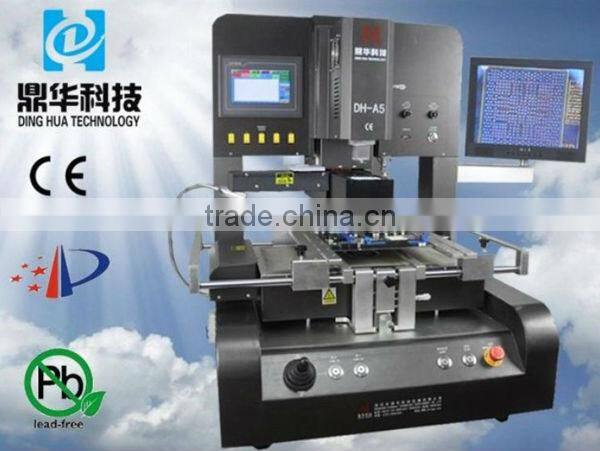

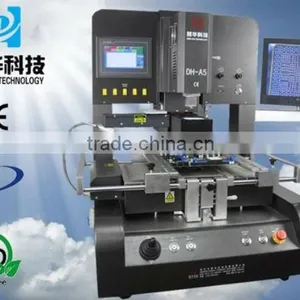

Dinghua Automatical Optical Alignment BGA Rework Station DH A5
Unique Features of DH A5 BGA Rework Station:
1.Touch Screen operation interface,you can use it easily by finger clicking;
2.For Factory and Company business.
3.Generally,all kinds of PCB can be soldered and desoldered,LAPTOP,XBOX,PS3,MOBILE PHONE are all OK.
4.Specially fit for high requirement of PLACEMENT ACCURACY.
Because its OPTICAl LENS and LASER POSITIONING.
5.APPROVED CE Certification,suitable for most of the countries all over the world,safty and environmental conservation.
6.110V and 220V voltages model are both available.
7.Any interest,please contact us freely for QUOTE and DEMO VIDEO,thanks.
8.YOUR VISIT to our FACTORY is warmly welcomed,please contact us in advance ,
A CONSIDERED PICKING-UP will be arranged.
9.Sincerely RESELLER is welcomed ,because we believe in doing win-win business with you!
Main Features:
1.Embedded with industrial PC,high definition touch screen interface, PLC controlling, Real-time settings and actual temperature profile display can be used to analyzed and correct parameters if necessary.
2. High-precision K-type thermocouple with closed loop control, combine PLC and thermometer mode to control the temperature precisely, accuracy keeps within ±2 degree. The external sensors can detect temperature precisely, analyze and calibrate the real temperature curve accurately.
3. With servo drive, can realize welding, mounting, demounting with automatic control, it is stable, safe and efficient. V-groove PCB support, and with external universal fixture, X,Y, Z can rapidly positioning, convenience, accuracy, can fit for all kinds of PCB board.

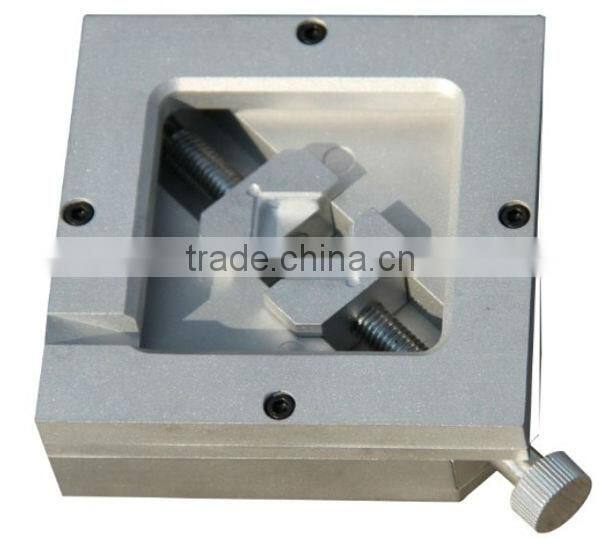

4. Flexible and convenient removable fixture on the PCB board which protects and prevent damage to PCB. It can also adapt to rework various BGA packages.
5. Different size of BGA nozzles, 360 degree rotations, easy to install and replace.
6. There are 3 independent heaters. ,they can control multiple groups and segments temperature parameters at the same time to achieve the best welding. Temperature, time, slope, cooling, alarming all can be displayed on the touch screen.
7. 1st and 2nd temperature heaters can set 6 temperature curves, can expand to 8. It can save multiple sets of user data of temperature parameters of BGA chips positioning points and sites.
8. According adjusting different BGA, you can analyze, set and modify the temperature parameters on the touch screen at any time; the 3 heaters adopt independent PID system to control heating process.
9. Use high definition digital video registration system, with rocker, by manual rocker to control the removing of the Optical lenses in left and right direction. Check the BGA in four corners and center alignment situation to ensure positioning accuracy and avoid any “blind spot”.
10. Powerful cross-flow fan cool the PCB board automatically after desoldering and soldering, it can prevent PCB board to be deformation and ensure the welding effective and mounting, soldering, desoldering to be Intelligent automatic control.
11. Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. After heating, cooling system works, and it stops automatic while the temperature down to normal to protect machine.
12. CE certification, with emergency switch and automatic power-off protection device when emergency happens.

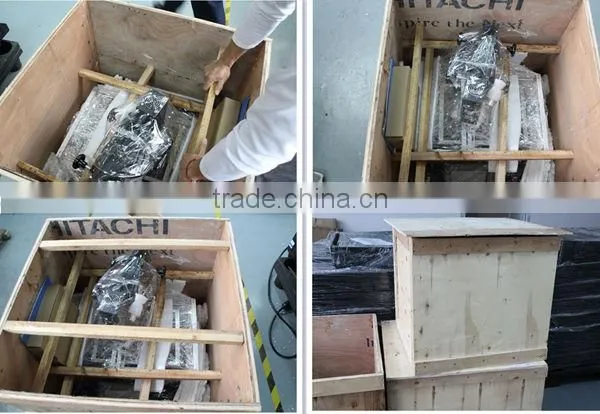

Packing Detail:
Wooden box for exporting.Inside the box,enough wood stand to avoid shaking in the process of long distance transport,safty is guaranteed,please buy with confidence.
CE Certification:(fit for users of most of the countries)
Reception:
Showroom:
Workshop:

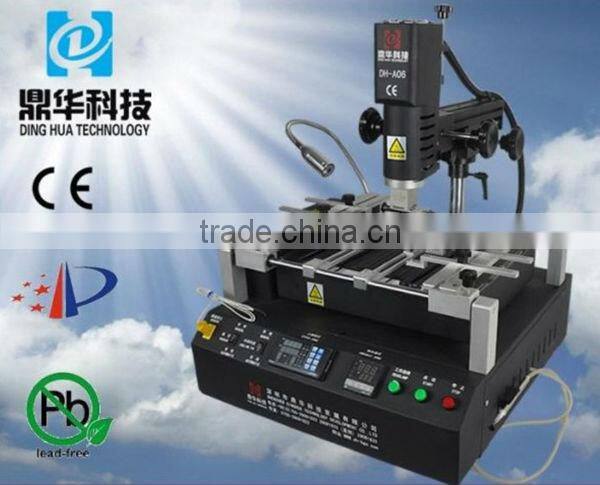

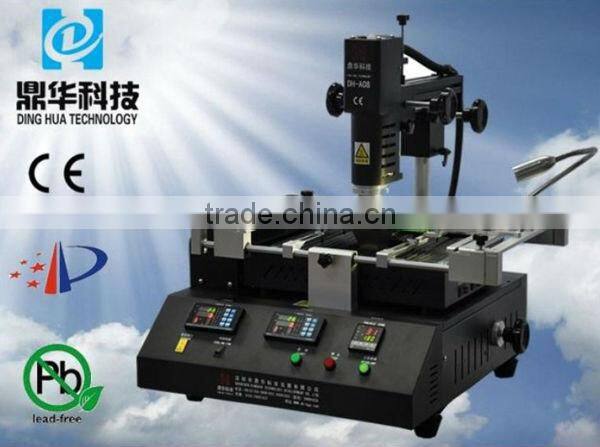

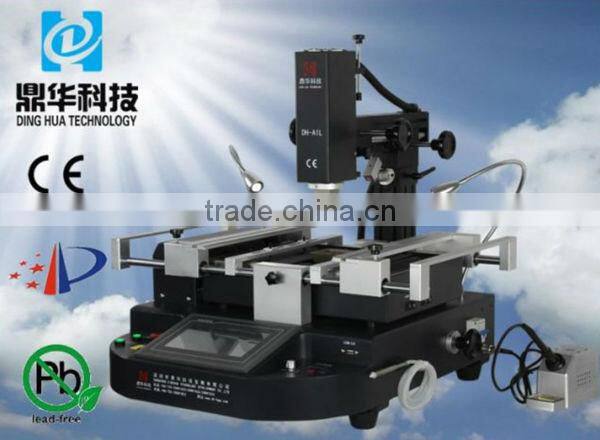

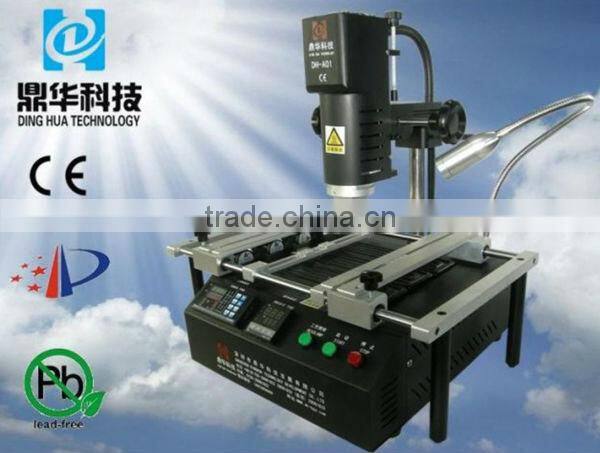

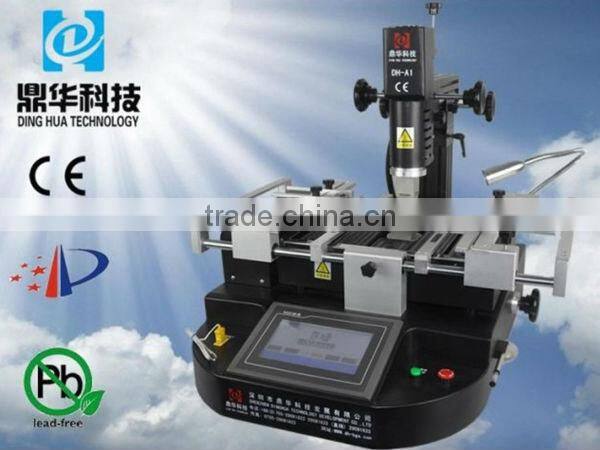

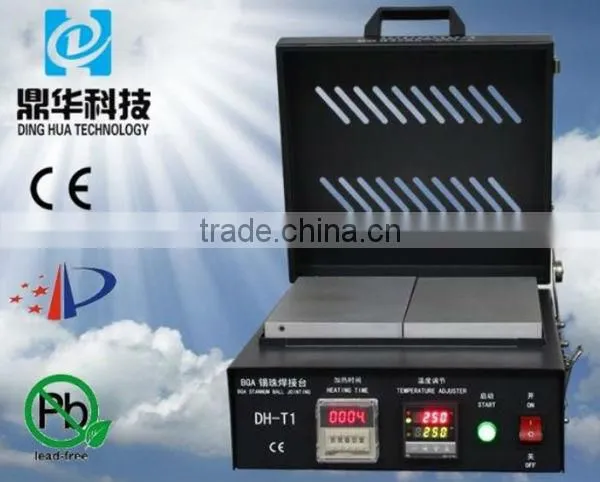

Other Models You May Also Need:
Best Wishes for your Family and Business!
