DH-G200 Dinghua Hot Air Infrared Welding System BGA Machine

US$ 3,400 - 4,999 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

Model Number:

DH-G200

Shenzhen Dinghua Technology Development Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name DH

Model Number DH-G200

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

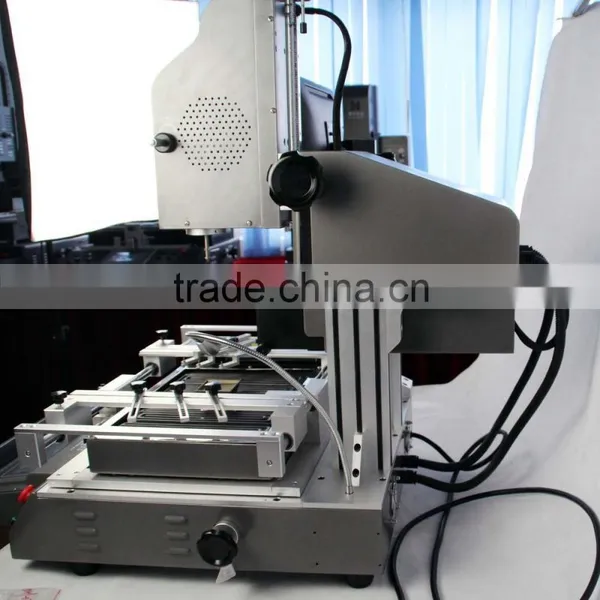

DH-G200 Dinghua Hot Air Infrared welding system BGA machine

DH-G200 Details and Warranty:

Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

DH-G200 Specification:

Total Power	5300W
Top heater	1200W

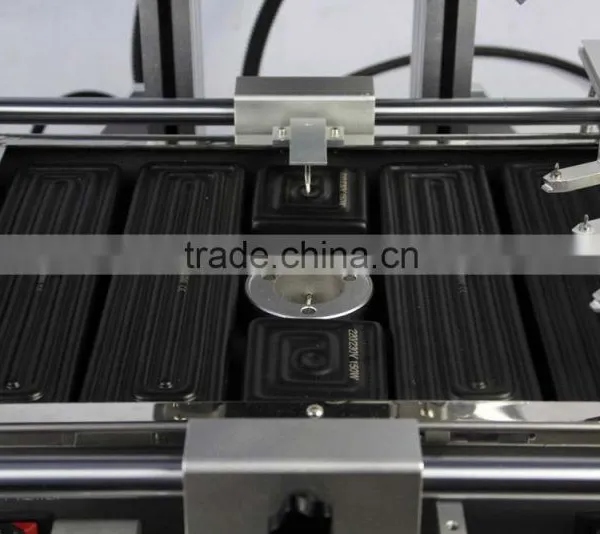

Bottom heater	2nd 1200W, 3rd IR heater 2700W
Power	AC220V±10% 50Hz
Top hot air speed	Can be adjusted with adjusting knob

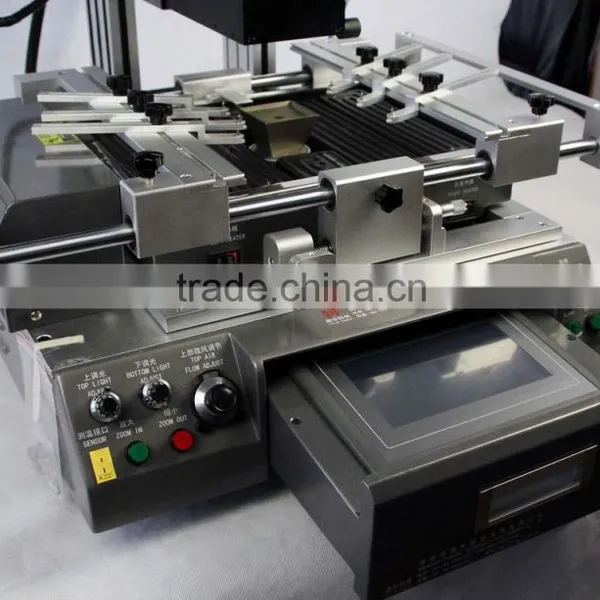

Operation mode	Manual operate, HD touch screen, intelligent man-machine, digital system setting

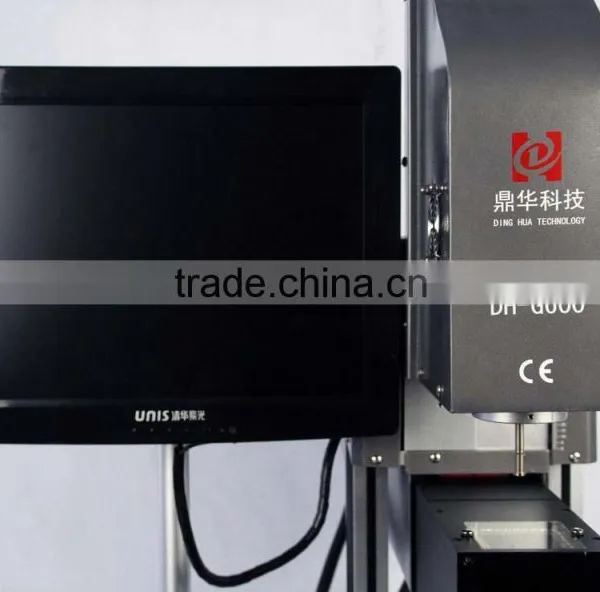

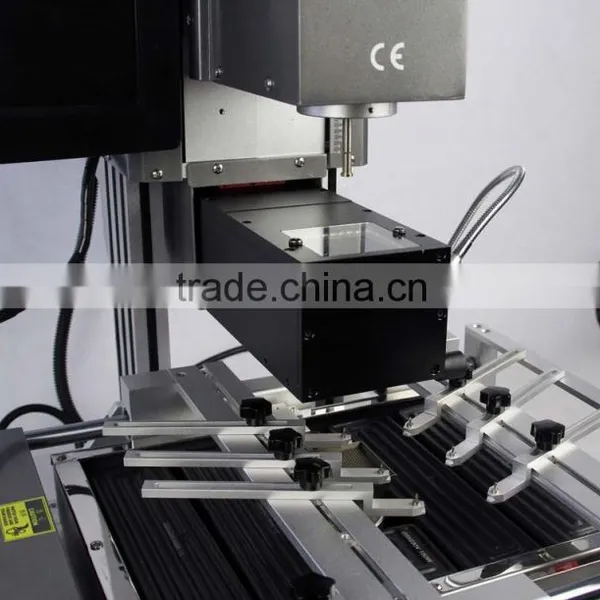

Optical CCD camera lens	Frontward / backward
Bga positioning	Laser positioning, fast and accurate position of pcb and bga.
Camera magnification	10x - 220x
Workbench fine-tuning:	±15mm forward/backward, ±15mm right/left
Placement accuracy:	±0.01mm
Lighting	Taiwan led working light, any angle adjustable
Temperature profile storage	50000 groups
Positioning	Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures.
Temperature control	K sensor, close loop
Temp accuracy	±1℃
PCB size	Max 390×400 mm Min 22×22 mm
BGA chip	2x2 - 80x80 mm
Minimum chip spacing	0.15mm
External temper sensor	1pc
Dimensions	L610×W570×H750 mm
Net weight	60KG
