Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

Specification of Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

Features of Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

1. Auto heating metal plate, maximum temperature is 400 centigrade.

2. Safety power system inside, avoiding the electric leakage problem.

3. Anti static body material, prevent the LCD and the flex cable being damaged from

the static

4. 4 stronger arms to press the touch screen glass on the plate

5. Smooth metal plate to hold the touch screen without any damaged.

6. 2 bearings to last long the life of the wire you use to separate, and prevent your

hands be hurt by the high temperature platform

7.K-type thermocouple, close-loop control, stable thermostat

8. Easy installation, fast thermal transmission, high repair efficiency

9.Compatible for LCD or LED screen assembly

10.CE approved

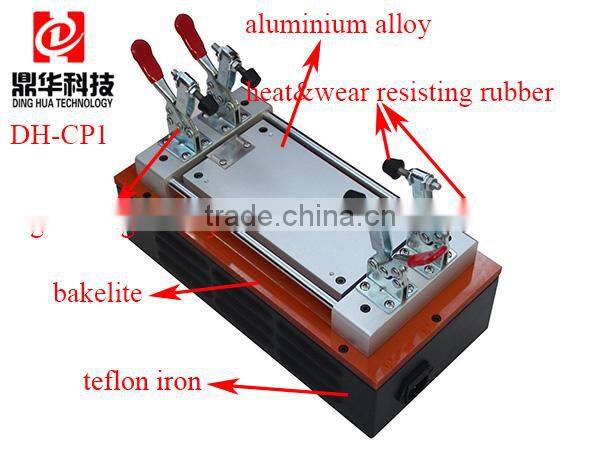

Structure of Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

 Material of Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

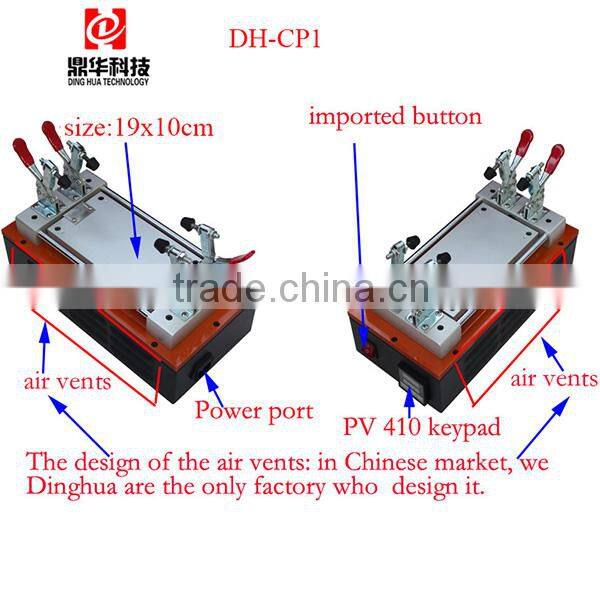

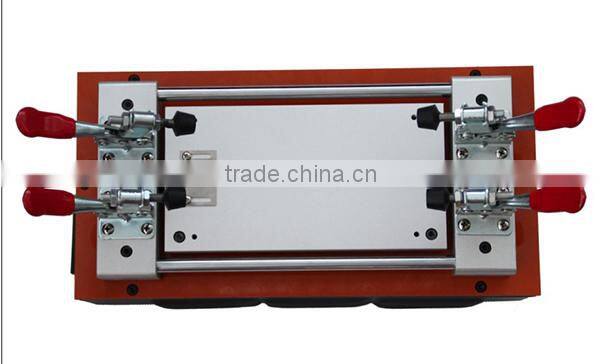

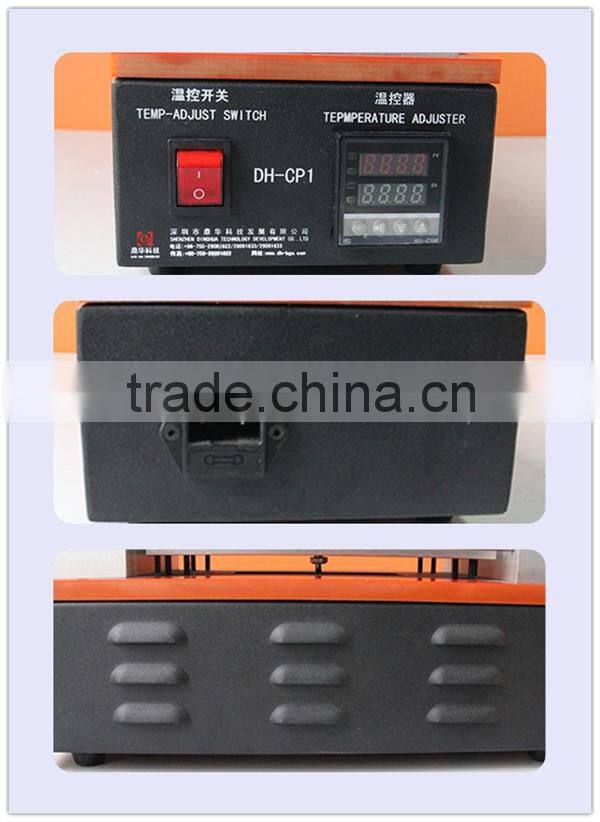

More photo of Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

 Operation of Touch Screen Panel LCD Separator Glue Disassembl e Machine For Mobile

1. Put your LCD with touch screen on the metal plate, LCD side above

2. Set the 4 arms to keep the touch screen on the metal plate stably

3. Turn on the machine and wait for the metal plate become 70-100 degree

4. Start to separate the LCD off the glass with a core, then right and left movement

with the core in between the LCD and the glass, please notice you must using gentle

power and keep the core stay on the LCD surface, so that it will avoid the touch

screen be damaged.

5.Finally you will find yourself do a good job.

Structure of Touch Screen Panel LCD Separator Glue Disassemble Machine For Mobile

1. Do not produce the heat more than 110 degree when operating; otherwise the high

temperature may destroy the phone accessories

2. As different country has different current or voltage standard, we have Voltage

220V and 110V for your choice; please choose the right one which meets your

country's voltage standard

1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.

2. By sea or by air. Please provide us your nearest port.

3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,please kindly tell us.
