Specifications
1.Smart and easy operation2.Competitive price with high quality and fast delivery
The cheapest LCD repair machine& touch screen pannel refurbishing machine&smartphone LCD separator machine
DH-CP1 Product Features
1. Auto heating metal plate, maximum temperature is 400 centigrade
2. Safety power system inside, avoiding the electric leakage problem
3. Anti static body material, prevent the LCD and the flex cable being damaged from the static
4. Easy installation
5. 4 stronger arms to press the touch screen glass on the plate
6. Smooth metal plate to hold the touch screen without any damaged
7. Temperature should be set to 80 centigrade to 100 centigrade, when you do the job on iPhone and galaxy series…
8. 2 bearings to last long the life of the wire you use to separate, and prevent your hands be hurt by the high temperature platform
9. Compatible for LCD or LED screen assembly
How to Use:
Step 1 |
Put your LCD with touch screen on the metal plate, LCD side above |
Step 2 |
Set the 4 arms to keep the touch screen on the metal plate stably |
Step 3 |
Turn on the machine and wait for the metal plate become 80-100 degree |
Step 4 |
Start to separate the LCD off the glass with a core, then right and left movement with the core in between the LCD and the glass, please notice you must using gentle power and keep the core stay on the LCD surface, so that it will avoid the touch screen be damaged |
Step 5 |
Finally you will find yourself do a good job; now start to get a well pay business!! |
Note:
1. Do not produce the heat more than 110 degree when operating; otherwise the high temperature may destroy the phone accessories
2. As different country has different current or voltage standard, we have Voltage 220V and 110V for your choice; please choose the right one which meets your country's voltage standard;
Product Specification:
Power supply |
AC 85V to AC 265V 50Hz, almost for users from all over the world |
Compatible with |
All most of mobile phones (Touch Screen ≤ 8 inch) |
Size: |
320*160*200mm |
Weight |
5kg |
Packaging |
Carton Box |
Package included:
4 x Fixed Tools
1 x Power Cable
1 x 50M Alloy Wire
1 x LCD Touch Screen Glass Seperator/Separater Machine

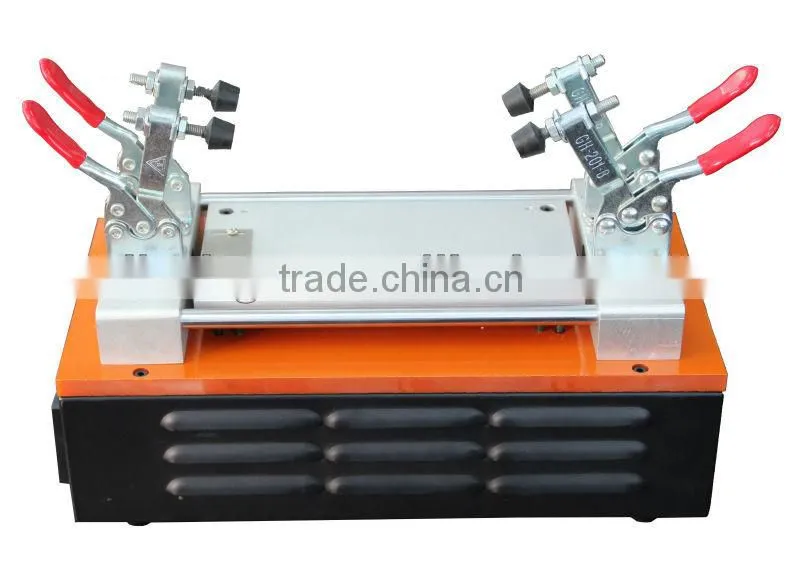

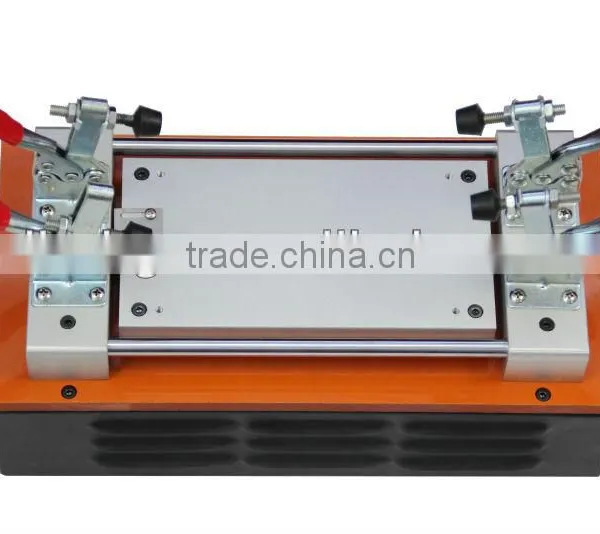

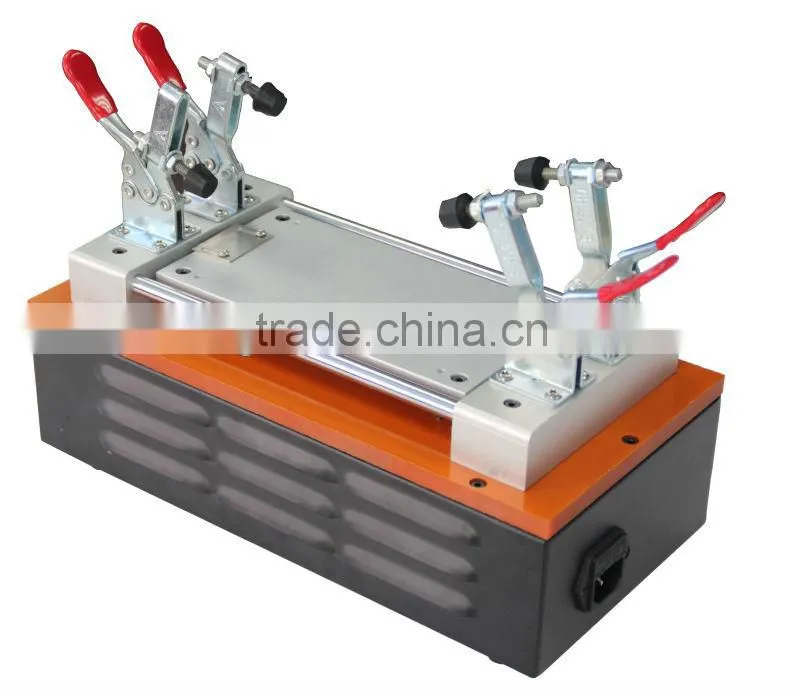

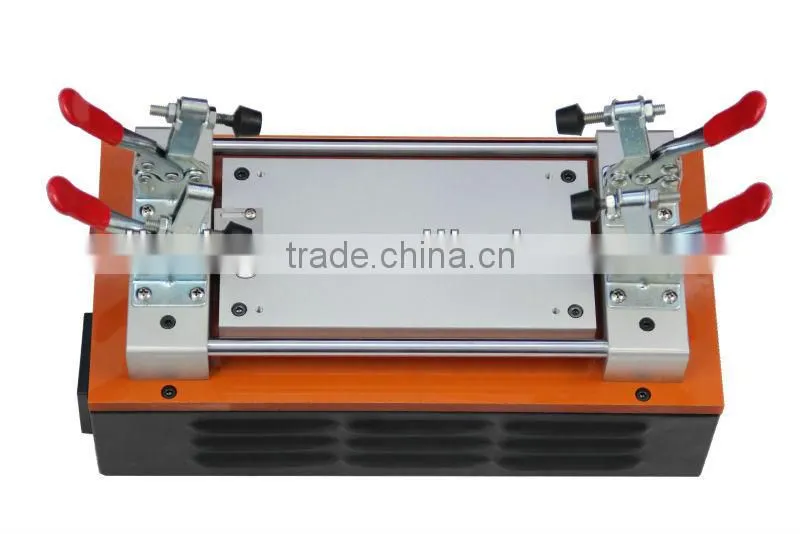

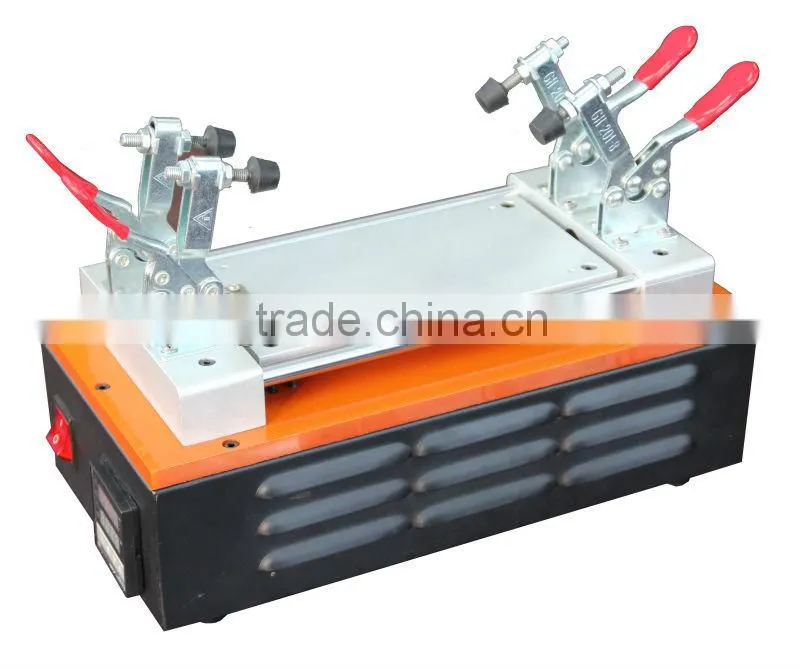

More photo about DH-CP1
About our factory
we are a professional manufacturer and supplier of bga rework stion in Shenzhen, China. Our product covers BGA rework station, welding rework tools and associated equipments, engaging in design,production, sales and service for more than 5 years.
Why are we?
1, Well-equipped manufacturing facility.
2,Professionalism innovative R&D team, provide professional service for bga rework station solution.
3,Optimum performance,precision temperature control to ensure high rate of success for S&M. As we know, the performance of bga chip soldering and desoldering is high depends on the precise of the temerature. Our bga machine use PID control,the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature), but among the bga rework station industry, most of company just use the PID grab freqency is 30ms.
4,International quality standard range,all our product have got the CE, ISO 9001 20008,Rohs approval.
6,Customized packaging and Fast delivery via Fedex, DHL, UPS, EMS, TNT and so on. Generally goods can be ready in 7 days after the receipt of the payment.
7,We supply 3 years warranty for this BGA rework station , in the first year, offer spare parts for free, the other 2 years, only charge fees for spare parts, life long technical support.
